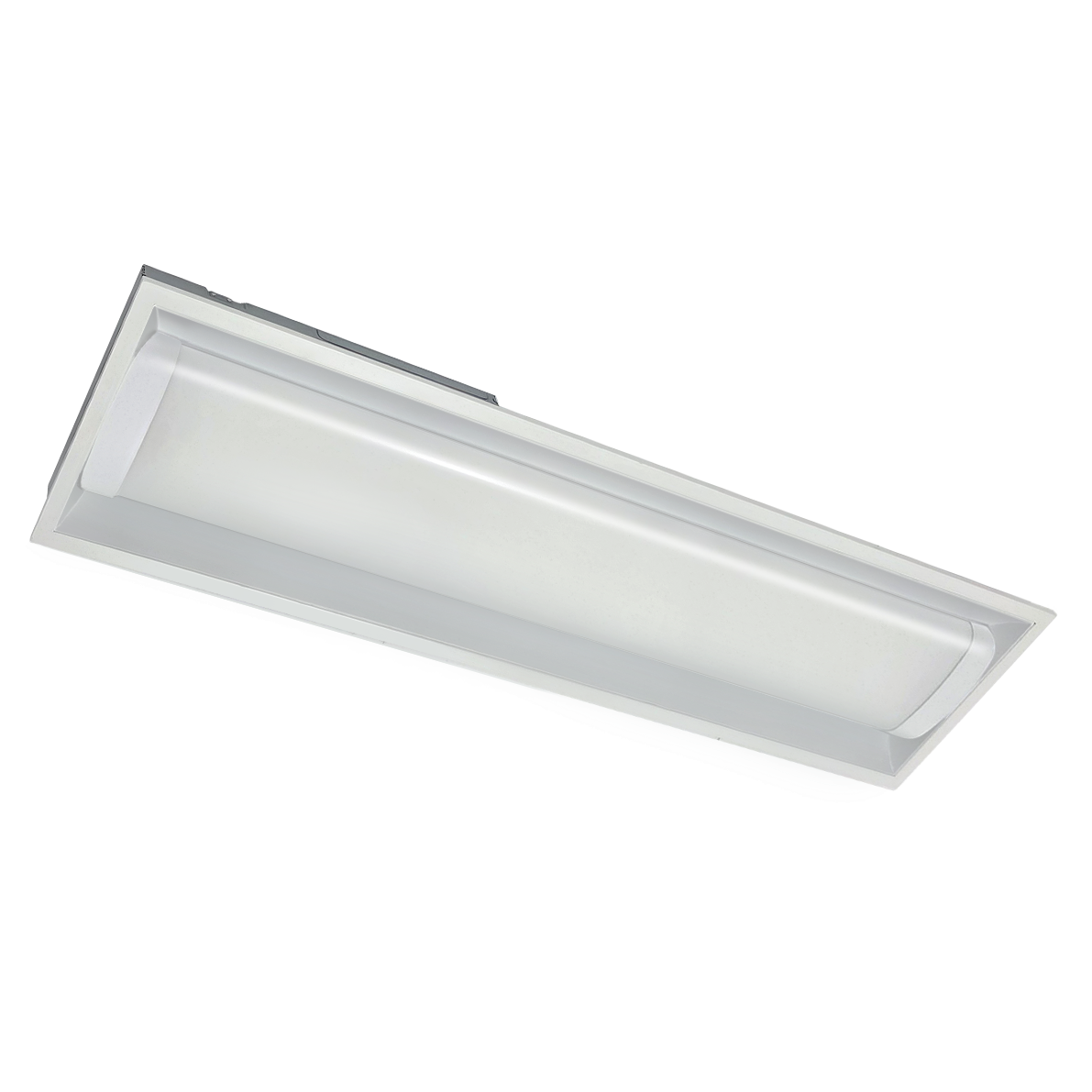

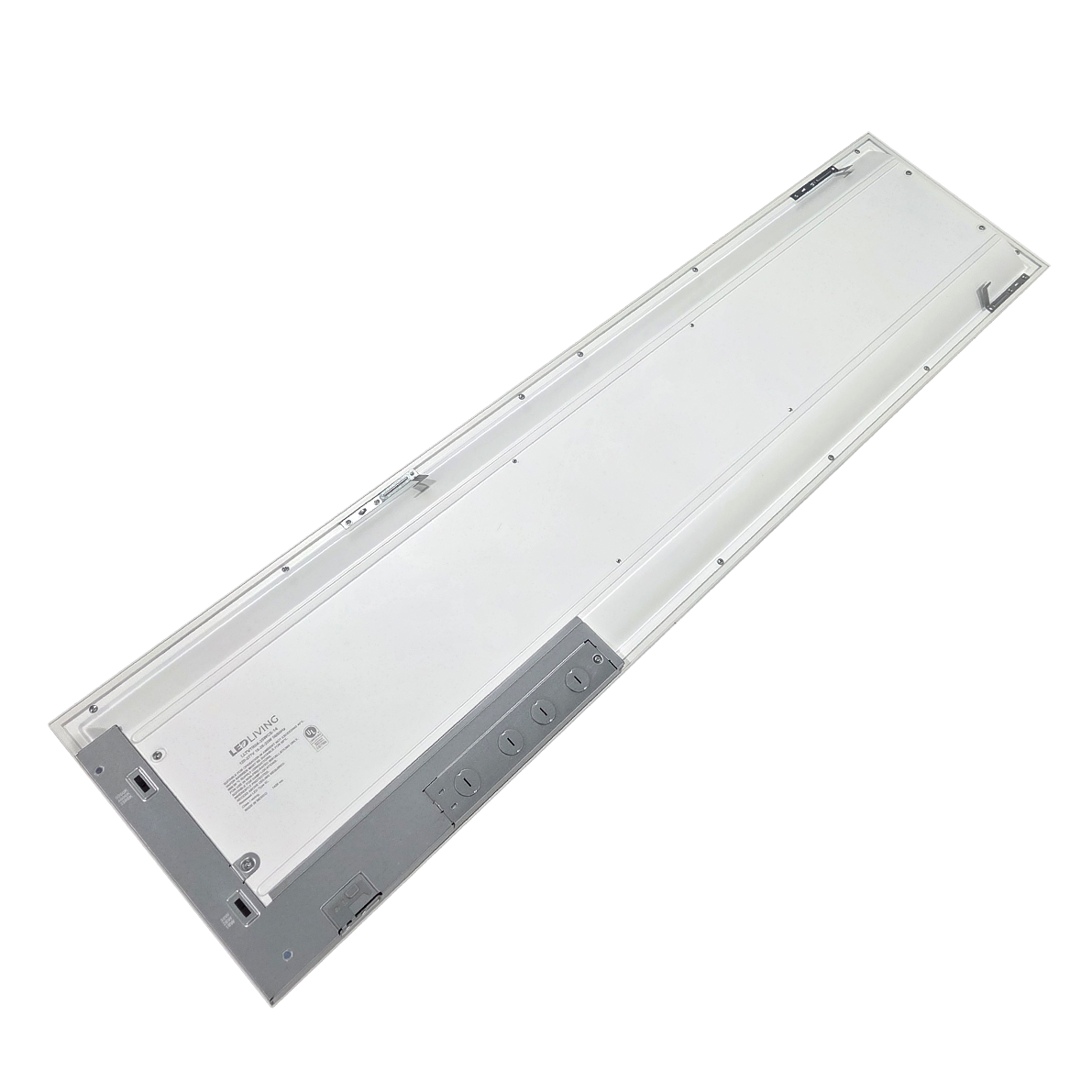

1x4 35W Selectable LED Living Troffer
1x4 35W Selectable LED Living Troffer
1x4 35W Selectable LED Living Troffer
1x4 35W Selectable LED Living Troffer
Quality-built LED troffer with easy-select wattage and color temperature.
- Adapts to many applications and room sizes
- IC-rated for safety & code compliance
- Made in North America
Need More? Let's Talk Text (858) 650-9400 or Request Quote
Quality-built LED troffer with easy-select wattage and color temperature.
- Adapts to many applications and room sizes
- IC-rated for safety & code compliance
- Made in North America
Choose options
Details
This 1x4 LED troffer by LED Living Technology delivers efficient, code-compliant, DLC Premium-listed overhead lighting for offices, classrooms, retail spaces, hotels, and other commercial facilities.
- Wattage (18/26/35W) and CCT (3500K/4000K/5000K) are both selectable via DIP switch — one product adapts to many applications and room sizes.
- Delivers up to 4,375 lumens at a consistent 125 lm/W efficacy
- Smooth 0-10V dimming.
- DLC Premium listed for rebate eligibility.
- IC-rated, durable steel housing meets strict commercial code requirements.
- Made in North America — TAA compliant
Backed by a 5-year warranty and available through ELEDLights with competitive pricing on every order.
Specs
| Wattage(s) | 18/26/35W Selectable |
| Replaces Wattage(s) | 80W |
| Light Output | 2,250 to 4,375 lm |
| Luminous Efficacy (lm/W) | 125 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | Yes |
| Dimming Range | 0-10V |
| Beam Angle | 120° |
| Lens Cover | PMMA diffuser |
| Installation | Recessed; fits standard 1' x 4' T-grid ceiling |
| Light Type | LED 2835 |
| LED Type | LED 2835 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | 0.9 |
| Surge Protection | 1kV line-line, 2kV line-earth |
| Temperature Rating | -20°C to +45°C (-4°F to +113°F) |
| Housing Material | Steel housing; aluminum frame; powder coat finish |
| Housing Color | White |

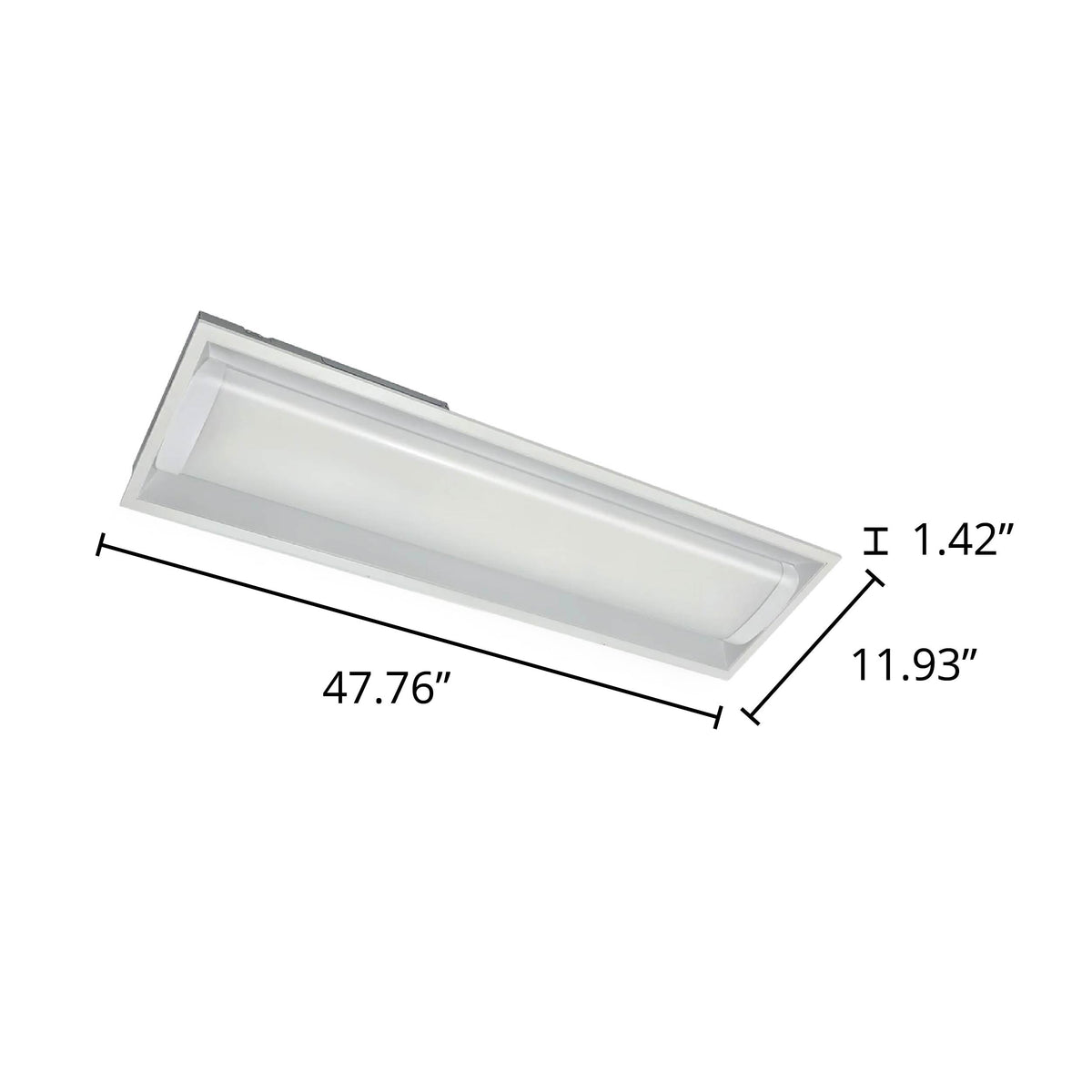

| Dimensions | 47.76" x 11.93" x 1.42" |
| Weight | 4.3 lbs |
| Shipping Weight | 4.8 lbs |
| Package Dimensions | 48.74" x 12.64" x 3.03" |
| Certification | DLC Premium, UL Listed |
| Warranty | 5 Years |
