310W Selectable LED Shoebox Area Light - High Voltage (480V)
310W Selectable LED Shoebox Area Light - High Voltage (480V)
310W Selectable LED Shoebox Area Light - High Voltage (480V)
310W Selectable LED Shoebox Area Light - High Voltage (480V)
This high-efficiency, field-selectable 240–310W LED shoebox light delivers up to 46,500 lumens and is best mounted 20+ ft high in and along large parking lots, transit hubs, freight yards, & roadways.
- 179 lm/W: High-efficiency, cost-saving replacement for 750W–1000W HIDs
- Wide range of wattage selection to match output to pole height
- High voltage (277–480VAC) standard
Need More? Text/call (858) 650-9400
This high-efficiency, field-selectable 240–310W LED shoebox light delivers up to 46,500 lumens and is best mounted 20+ ft high in and along large parking lots, transit hubs, freight yards, & roadways.
- 179 lm/W: High-efficiency, cost-saving replacement for 750W–1000W HIDs
- Wide range of wattage selection to match output to pole height
- High voltage (277–480VAC) standard
Choose options
Details
High Voltage (277-280V) Shoebox Light for Parking Lots and Outdoor Areas
Select the Light Output and Light Tone During Install:
- Choose from a wide range of output levels from 36,900 to 46,500 lumens.
- Choose between warm, neutral, and cool white light for each area.
Select from 6 Mounting Options: Available under the accessories tab.
Add an Easy-Install, Twist-Lock Photocell: Ensures the lights are only on when needed.
Enjoy Highly Efficient, Long-Lasting Outdoor Lights
- Luminous efficacy of up to 179 lm/W.
- Rugged die-cast aluminum with flow-through venting.
- Fully sealed against moisture, dust, and contaminants.
- 3G vibration rated & low EPA to minimize wind load requirements.
- Rated for use in temperatures as low as -40°F.
- Need standard voltage (120-277V)? Purchase that model here.
A 24" power cord is included to make installations easier.
Versatile Options
Slipfitter Mount
For use with 2-3/8" OD horizontal steel tenon arms
Trunnion Mount
For mounting on walls or poles, with rotational adjustability
Wall Mount
For building facades - use 0.5" conduit wiring or J-box mounting
Square & Round Pole Mount
For use with 4" and 5" square or round poles
Adjustable Square & Round Pole Mount
For use with 4" and 5" square or round poles; rotatable
Specs
| Wattage(s) | 310/280/260/240W |
| Replaces Wattage(s) | 750W to 1000W |
| Light Output |
3000K: 44,950/41,450/38,850/36,900 lumens 4000K: 45,880/42,300/39,650/37,700 lumens 5000K: 46,500/42,850/40,200/38,200 lumens |
| Luminous Efficacy (lm/W) | 145-179 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V |
| Light Distribution Pattern |
Type III (T3)
Learn More
×
Light Distribution OptionsType III Beam  Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam  Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam  Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Working Environment | Outdoors |
| Enclosure Rating | Wet Location |
| Input Voltage | 277-480VAC |
| Temperature Rating | -40°F to 113°F |
| Housing Material | Die-cast aluminum |
| Housing Color | Dark Bronze |

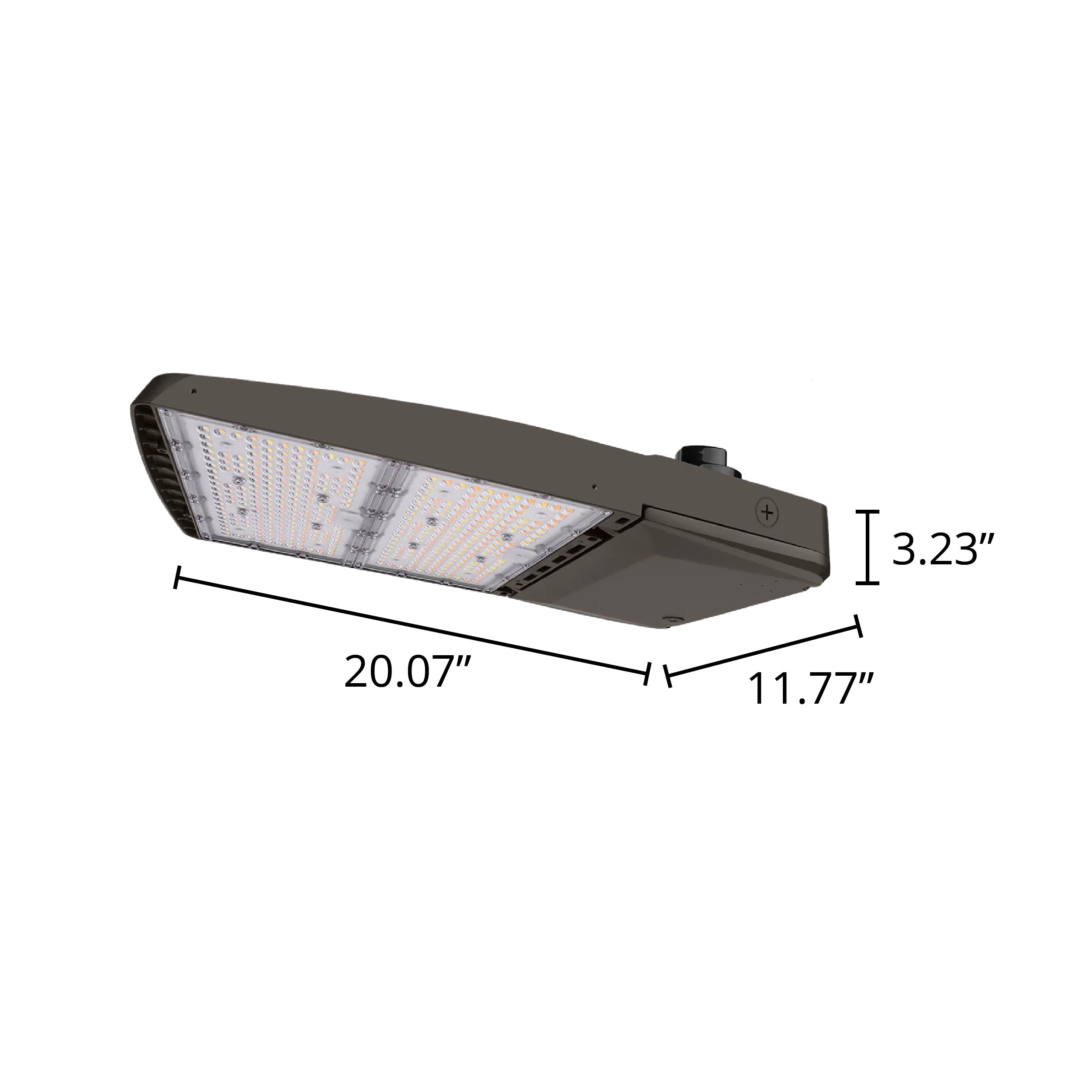

| Dimensions | See spec sheet |
| Certification | DLC, UL |
| Warranty | 5 Years |
Data SheetCompare Key Features
Compare
310W Selectable LED Shoebox Area Light - High Voltage (480V)
|
300W Selectable LED Shoebox Area Light, Swappable Optics
|
|
|---|---|---|
| Wattage | 310/280/260/240W | 300/250/200W |
| Equivalent to | 750W to 1000W | 600W to 1000W |
| Luminous Efficacy | 145-179 lm/W | 155-160 lm/W |
| Color Temperature (CCT) | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Light Distribution Pattern | Type III (T3) | Type III (T3) standard, or convert to Type V (T5) with quick-change field-swappable lens (see accessories in ordering section) |
| Input Voltage | 277-480VAC | 120-277VAC |
|
