The RAB SWISH34 2x4 troffer is the go-to for spaces where light quality and reliability matter.
- CRI >84 renders colors accurately — ideal for retail, clinics, and color-sensitive work areas.
- IC-rated and wet-location listed, with cold-start performance down to −40°F.
- Rated for 100,000 hours with DLC Premium certification for utility rebate eligibility.
Contractor or Large Project? Request Project Pricing
The RAB SWISH34 2x4 troffer is the go-to for spaces where light quality and reliability matter.
- CRI >84 renders colors accurately — ideal for retail, clinics, and color-sensitive work areas.
- IC-rated and wet-location listed, with cold-start performance down to −40°F.
- Rated for 100,000 hours with DLC Premium certification for utility rebate eligibility.
Choose options
Specs
| Wattage(s) | 30W/35W/40W |
| Light Output |
@3500K: 4,140/4,650/5,208 lumens @4000K: 4,310/4,875/5,509 lumens @5000K: 4,269/4,808/5,397 lumens |
| Luminous Efficacy (lm/W) | 130 to 145 lm/W |
| Average Lamp Life | 100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | >84 CRI |
| Dimming | 0-10V |
| Dimming Range | Down to 10% |
| Lens Cover | Frosted |
| Enclosure Rating | Wet location |
| Input Voltage | 120-277V, 50/60Hz |
| Driver Type | Constant Current, Isolated/Class 2 |
| Power Factor | @40W, 4000K: 99.6% at 120V, 96.4% at 277V |
| THD (Total Harmonic Distortion) | @40W, 4000K: 6.2% at 120V, 4.5% at 277V |
| Surge Protection | L-N 2.5KV/LN-GND 2.5KV |
| Operating Temperature | -40°F to 104°F |
| Housing Material | 24-gauge cold-rolled steel with plastic endcaps and polycarbonate lens |
| Housing Color | White |

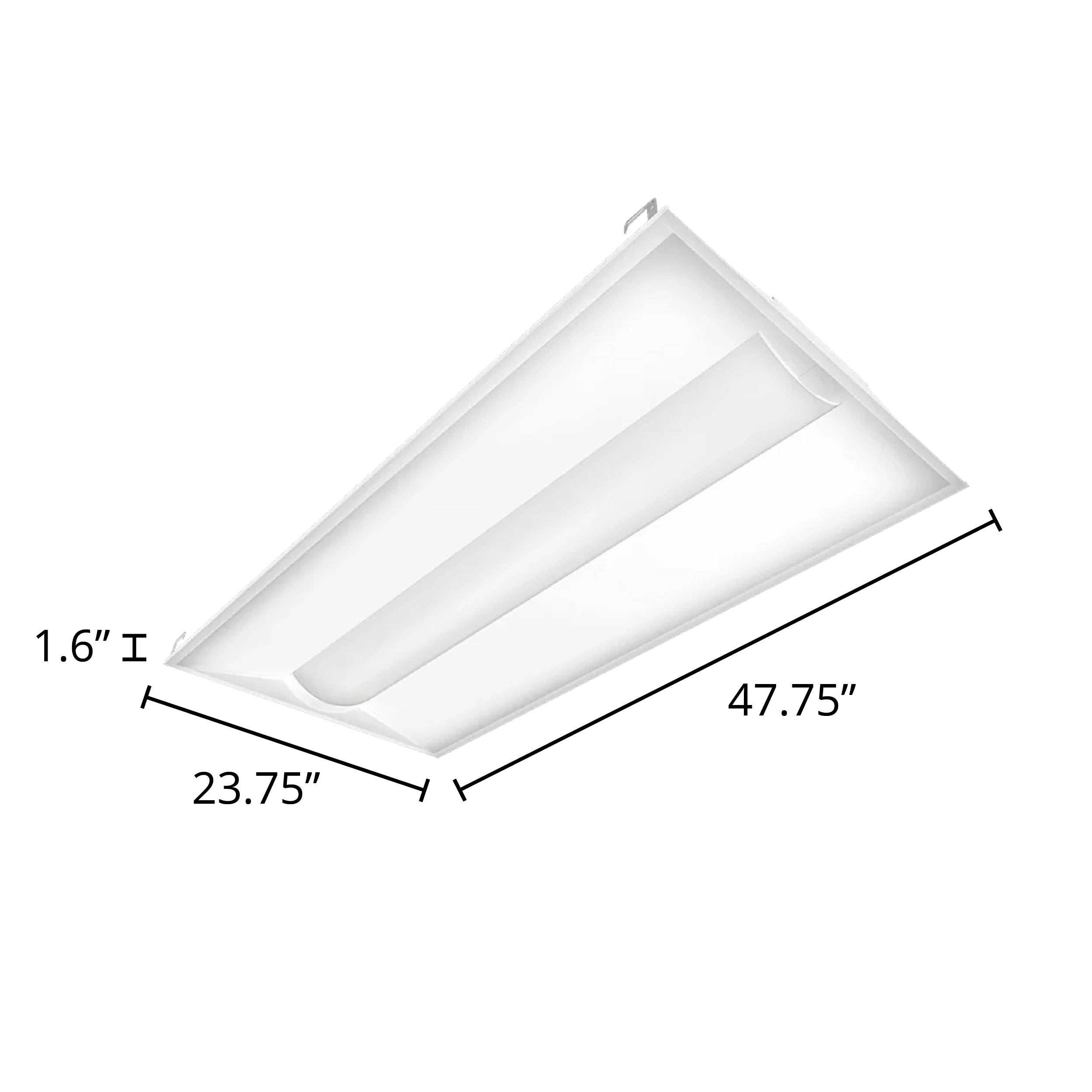

| Dimensions | 23 3/4" x 47 3/4" x 1 5/8" |
| Weight | 8.6 lbs |
| Certification | DLC Premium, UL |
| DLC ID(s) | S-518PBF |
| Warranty | 5 Years |
Data Sheet
IES FileDetails
Economical, Stylish, Energy-Saving Center Basket Troffer
- Built Tough: 24-Gauge Cold-Rolled Steel Housing
- Sleek Design: A High-Reflectance Finish
- Fine-Tunable: Continuous Dimming to 10%
- Long Lifespan: 60,000-Hour Average Operating Life
SWISH34's professional appearance and superior performance make it ideal for commercial, educational, office, and healthcare facilities.
