MaxLite

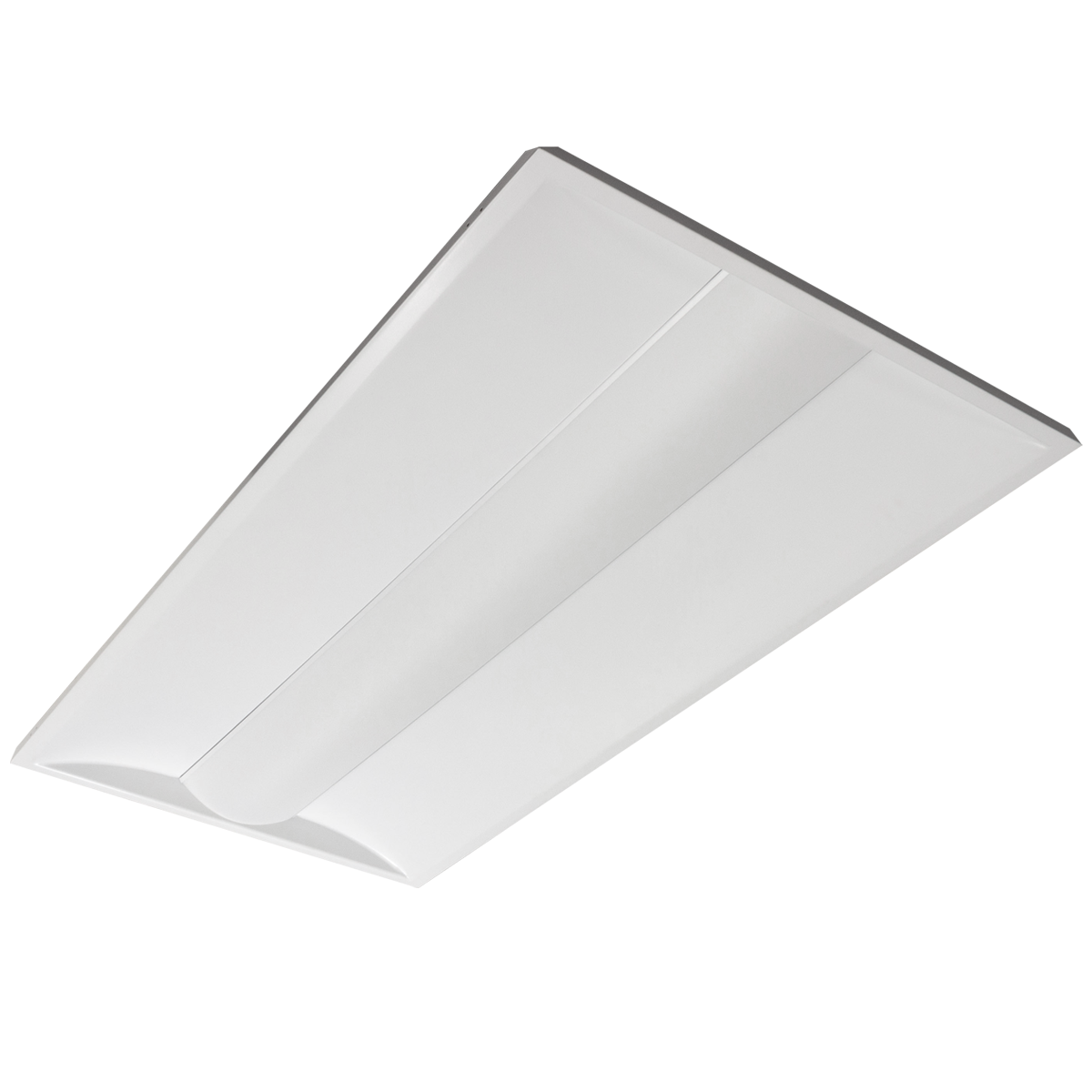

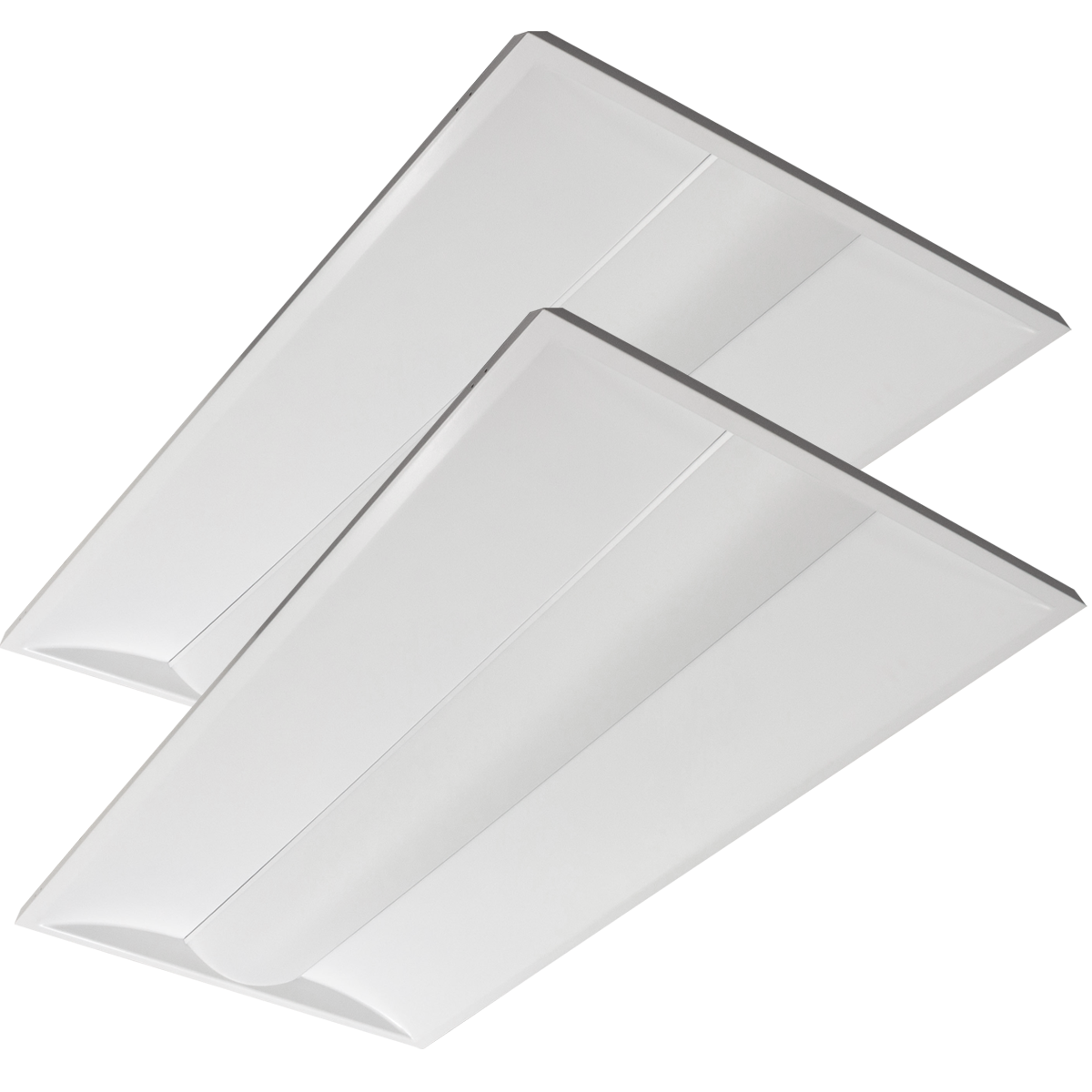

2x4 45W Selectable MaxLite ArcMax LED Troffer (2-Pack)
2x4 45W Selectable MaxLite ArcMax LED Troffer (2-Pack)
2x4 45W Selectable MaxLite ArcMax LED Troffer (2-Pack)
MaxLite
0 Reviews
2x4 45W Selectable MaxLite ArcMax LED Troffer (2-Pack)
Regular price$0.00
The MaxLite Value ArcMax 2x4 is a contractor-friendly, rebate-eligible troffer.
- Field-select wattage (36/40/45W) and color temp (3500K–5000K) at install — one SKU for every zone.
- DLC Premium certified and damp-rated — rebate-eligible and suitable for restrooms and locker rooms.
- Contractor-friendly driver boxes speed up new construction and remodel installs alike.
Bulk Pricing: Text (858) 650-9400 or Request Quote
The MaxLite Value ArcMax 2x4 is a contractor-friendly, rebate-eligible troffer.
- Field-select wattage (36/40/45W) and color temp (3500K–5000K) at install — one SKU for every zone.
- DLC Premium certified and damp-rated — rebate-eligible and suitable for restrooms and locker rooms.
- Contractor-friendly driver boxes speed up new construction and remodel installs alike.
Choose options
Details
A Contractor-Favorite Fluorescent Troffers Replacement
- Easy-Install Driver Boxes
- Great for New & Remodel Construction
- Field-Selectable Wattages & Color Temperatures
Budget-Conscious without Skimping on Beneficial Features
- High Reflectance Finish
- Light-Diffusing Lenses
- Dimming from 100% to OFF
Safe for use in damp locations like restrooms, locker rooms, laundromats, fitness centers, and more.
Specs
| Wattage(s) | 36W/40W/45W |
| Light Output | 4,500/5,000/5,625 lumens |
| Luminous Efficacy (lm/W) | 125 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | 0-10V |
| Dimming Range | 10-100% - Dim to OFF |
| Lens Cover | Polypropylene Lens |
| Working Environment | Indoors |
| Enclosure Rating | Damp location |
| Input Voltage | 120-277VAC |
| Power Factor | > 0.90 |
| Temperature Rating | -13°F to 113°F |
| Humidity | 20% to 85% RH non-condensing |
| Housing Material | Steel Sheet |
| Housing Color | White |
| Dimensions | 47.8" x 23.7" x 3.4" |
| Certification | DLC Premium, ETL |
| DLC ID(s) | S-LHYCRF |
| Warranty | 5 Years |
