2x4 Selectable LED Panel - MaxLite FlatMax Value - EM Backup

2x4 LED Panel 3 CCT MaxLite FlatMax Value with slim design for drop ceiling installation and adjustable brightness options
Bright, even lighting from 2x4 LED Panel – 3 CCT – 25W/35W/45W – MaxLite FlatMax Value in a fitness studio ceiling
MaxLite

2x4 Selectable LED Panel - MaxLite FlatMax Value - EM Backup

Outline Star
Outline Star
Outline Star
Outline Star
Outline Star
Filled Star
Filled Star
Filled Star
Filled Star
Filled Star
0 Reviews
SKU: MLFP24V25WCSEM
$196.95

A flexible 2x4 panel for everyday lighting and factory-ready emergency backup in one fixture.

  • Field-select wattage (25W/35W/45W) and CCT (3500K/4000K/5000K) — dims 10–100% via 0-10V.
  • 8W emergency battery delivers 960 lumens for 90 minutes — code-compliant out of the box.
  • DLC Premium-certified at up to 137 lm/W — saves ~$21/fixture annually, 5-year warranty.

Call for Lead Time

In Stock -
Free Shipping Over $300

A flexible 2x4 panel for everyday lighting and factory-ready emergency backup in one fixture.

  • Field-select wattage (25W/35W/45W) and CCT (3500K/4000K/5000K) — dims 10–100% via 0-10V.
  • 8W emergency battery delivers 960 lumens for 90 minutes — code-compliant out of the box.
  • DLC Premium-certified at up to 137 lm/W — saves ~$21/fixture annually, 5-year warranty.

Details

Give Your Drop Ceilings a Modern Lighting Makeover

Customized to Your Space: Field-selectable color temperature & wattage options allow you to choose the ideal light level and tone for each space.

  • Uniform Brightness: Enjoy even light distribution that's easy on the eyes.
  • Dim the Lights, Reduce Costs: Dimmable from 10% to 100% to optimize energy use.
  • Built to Last, Built to Save: Enjoy 5+ years of maintenance-free lighting.
  • Battery Backup Installed: Factory-installed 8W backup provides 90 minutes of 960 lumen output during power outages.

Designed for easy installation in suspended grid ceilings: Upgrade the lighting in your office, school, or healthcare facility.

Specs

Wattage(s) 25/35/45W
Light Output 3,425/4,690/5,895 lumens
Luminous Efficacy (lm/W) 137/134/131 lm/W
Battery 8W Emergency Driver, 90-min discharge
Average Lamp Life L70: ≥ 50,000 hours
Color Temperature(s) 3500K/4000K/5000K
CRI (Color Accuracy) >80
Dimming 0-10V
Lens Cover Polystyrene lens
Working Environment Indoors
Enclosure Rating Suitable for damp locations
Input Voltage 120-277V AC 50/60Hz
Power Factor ≥ 0.90
Temperature Rating 32°F to 113°F
Humidity ≤ 65% RH non-condensing
Housing Material Cold rolled steel
Housing Color White

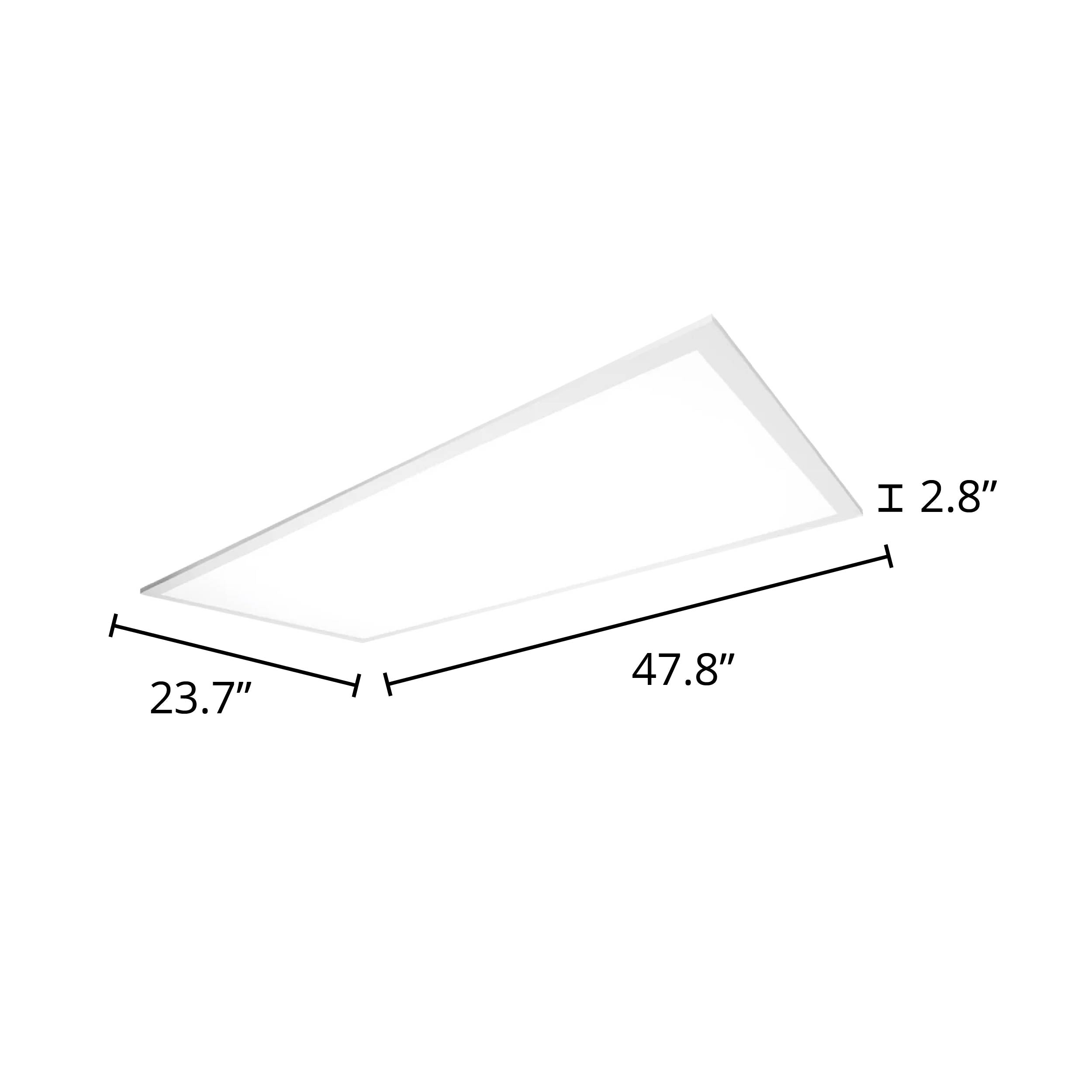

Dimensions 47.8" x 23.7" x 2.8"
Certification DLC Premium, UL
DLC ID(s) S-C3MXS5
Warranty 5 Years
