2x4 LED Frame Light 5 CCT with adjustable wattage for suspended ceilings and 0-10V dimming control panel

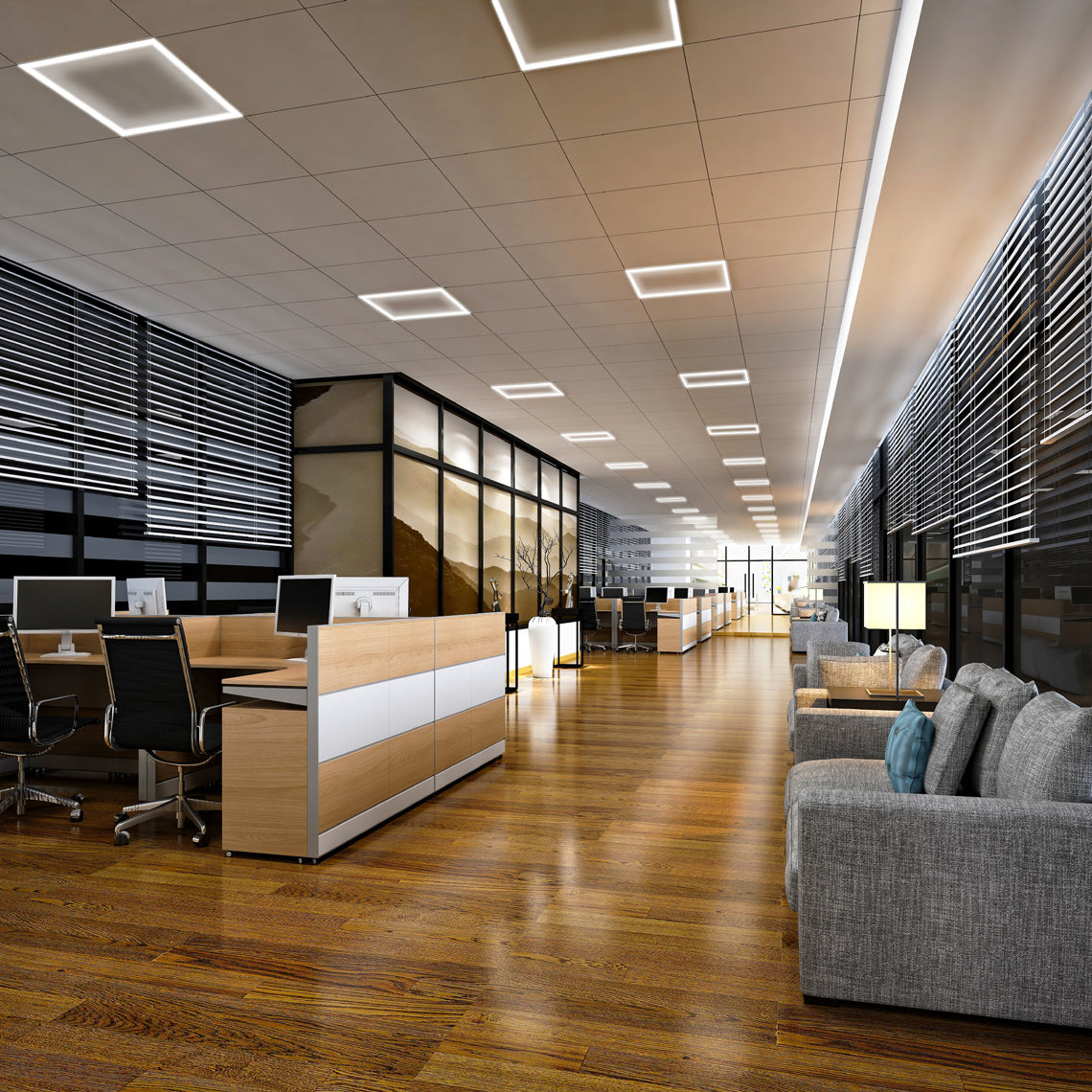

Modern office interior illuminated by 2x4 LED Frame Light 5 CCT 30 to 50W RAB FRAME in suspended ceiling panels

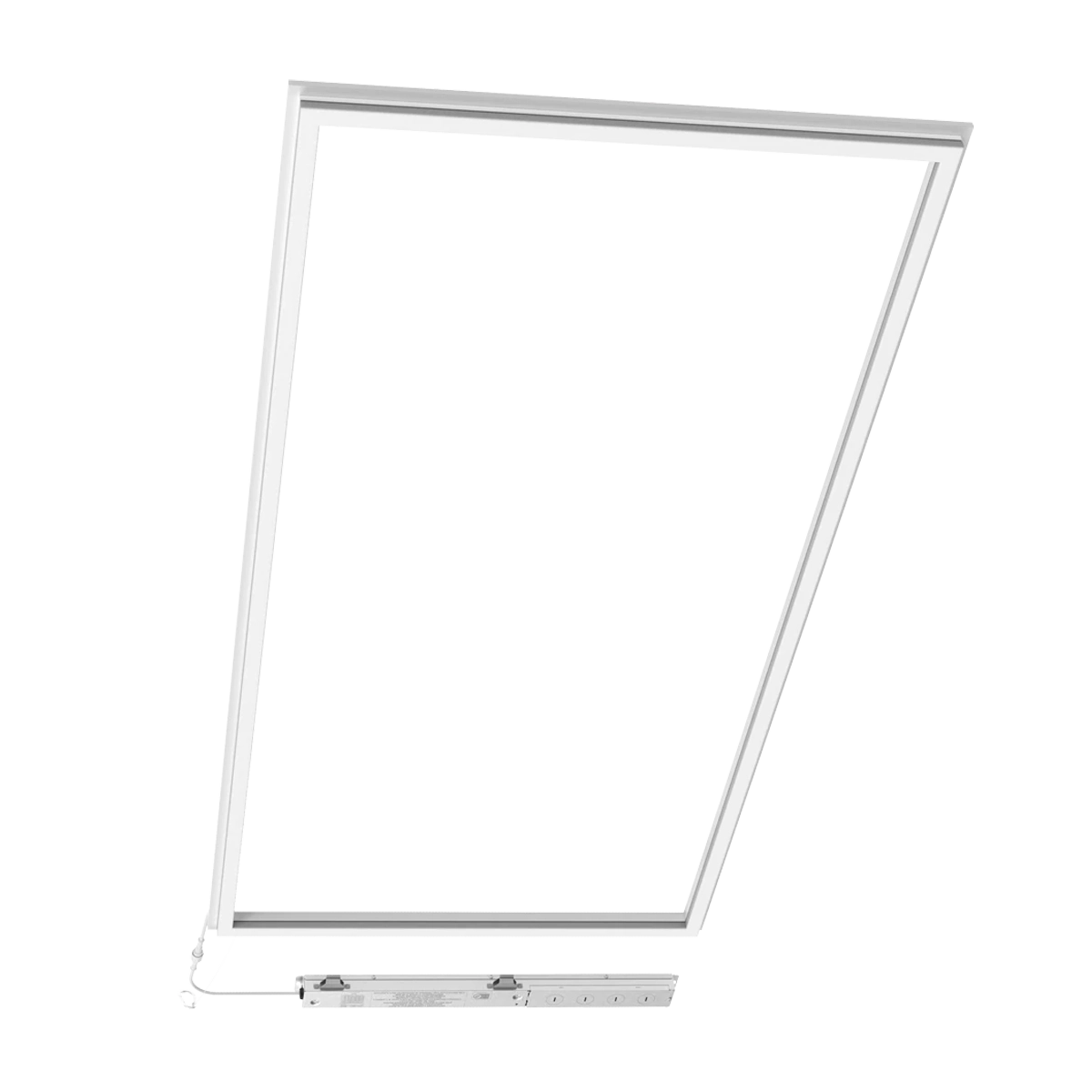

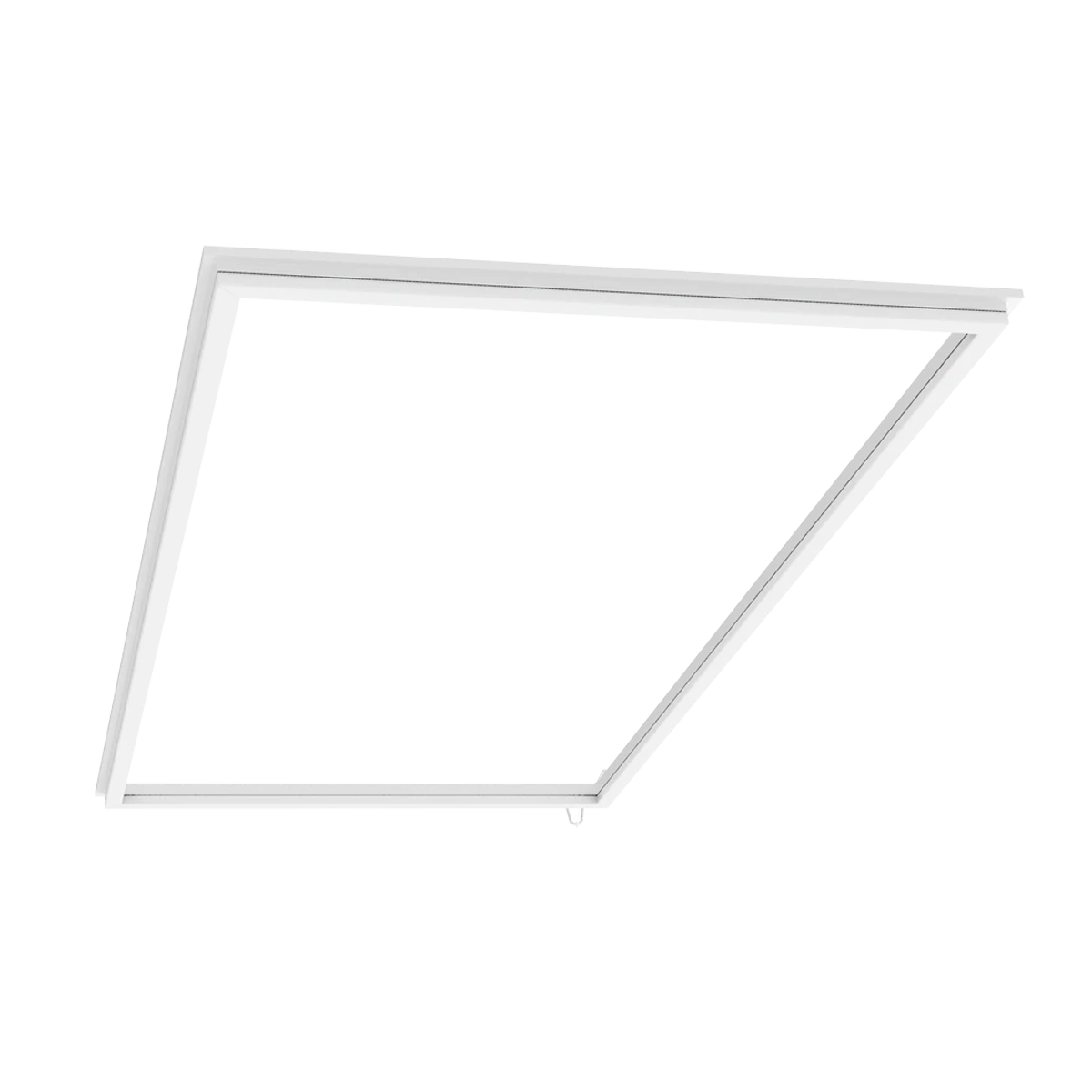

2x4 LED Frame Light 5 CCT RAB FRAME edge-lit panel for 2x4 T-grid ceilings with adjustable wattages and dimming
2x4 LED Frame Light - 5 CCT - 30/35/40/45/50W - RAB FRAME

2x4 Edge-Lit Frame Panel Light with Selectable Wattage/CCT & Rebate-Friendly DLC Premium Cert

$119.95 ea $239.90 per box
RAB Lighting

Lumens:

3,764-6,203

Watts:

30W-50W

Color Temp:

30K/35K/40K/50K/65K
Refresh large rooms with a sleek 2×4 frame that drops into standard T-grids and is IC-rated for direct insulation contact—great for strict code areas. Set wattage (30W-50W) & CCT (3000K–6500K) on-fixture, then fine-tune with 0–10V dimming. DLC Premium for rebate programs, backed by a 5-year warranty and 100,000-hour lamp life—a stylish, long-run upgrade for offices, classrooms, clinics, & retail.

5 Year Warranty

SKU: FR2X4

Edge-Lit Frame Lights Bring Clean Aesthetics to Your Suspended Ceilings

  • Seamlessly fits your space thanks to field-adjustable CCTs and wattages
  • Installs easily into existing 2 ft x 4 ft T-grid ceilings
  • Includes dimming control wiring for 0-10V dimming systems for dimming down to 10%
  • Safe for use in damp locations, including restrooms, locker rooms & utility rooms
  • Listed by Design Lights Consortium (DLC) as an ultra-efficient premium product, qualifying it for the highest tier of energy efficiency rebates

RAB FRAME lights provide beautiful lighting for modern office spaces, retail applications, and other contemporary commercial spaces.

Saves $/year in energy costs*

$119.95 ea $239.90 per box
Order Within $12 flat rate / FREE over $500
[Sold in boxes of 2]

Buying 6 or more boxes?
Get a better price & free shipping:

or Request Bulk Quote

Edge-Lit Frame Lights Bring Clean Aesthetics to Your Suspended Ceilings

  • Seamlessly fits your space thanks to field-adjustable CCTs and wattages
  • Installs easily into existing 2 ft x 4 ft T-grid ceilings
  • Includes dimming control wiring for 0-10V dimming systems for dimming down to 10%
  • Safe for use in damp locations, including restrooms, locker rooms & utility rooms
  • Listed by Design Lights Consortium (DLC) as an ultra-efficient premium product, qualifying it for the highest tier of energy efficiency rebates

RAB FRAME lights provide beautiful lighting for modern office spaces, retail applications, and other contemporary commercial spaces.

Saves $/year in energy costs*

See how much you would save in energy
costs by allowing access to your location.

SPECIFICATIONS

Custom Savings Calculator
Wattage(s) 30/35/40/45/50W
Light Output 3,764-6,203 lumens
Luminous Efficacy (lm/W) 128.8-134.2 lm/W
Average Lamp Life L70: 100,000 hours
Color Temperature(s) 3000K/3500K/4000K/5000K/6500K
CRI (Color Accuracy) 83-85
Dimming 0-10V
Installation Recessed into existing T-grid brackets
Input Voltage 120-277V, 50/60hz
Driver Type Constant Current, Class 2
Power Factor @50W, 4000K: 99.73% at 120V, 99.79% at 277V
THD (Total Harmonic Distortion) @50W, 4000K: 6.02% at 120V, 13.31% at 277V
Temperature Rating -20°C (-4°F) to 40°C (104°F)
Housing Material Aluminum with polycarbonate lens
Housing Color White

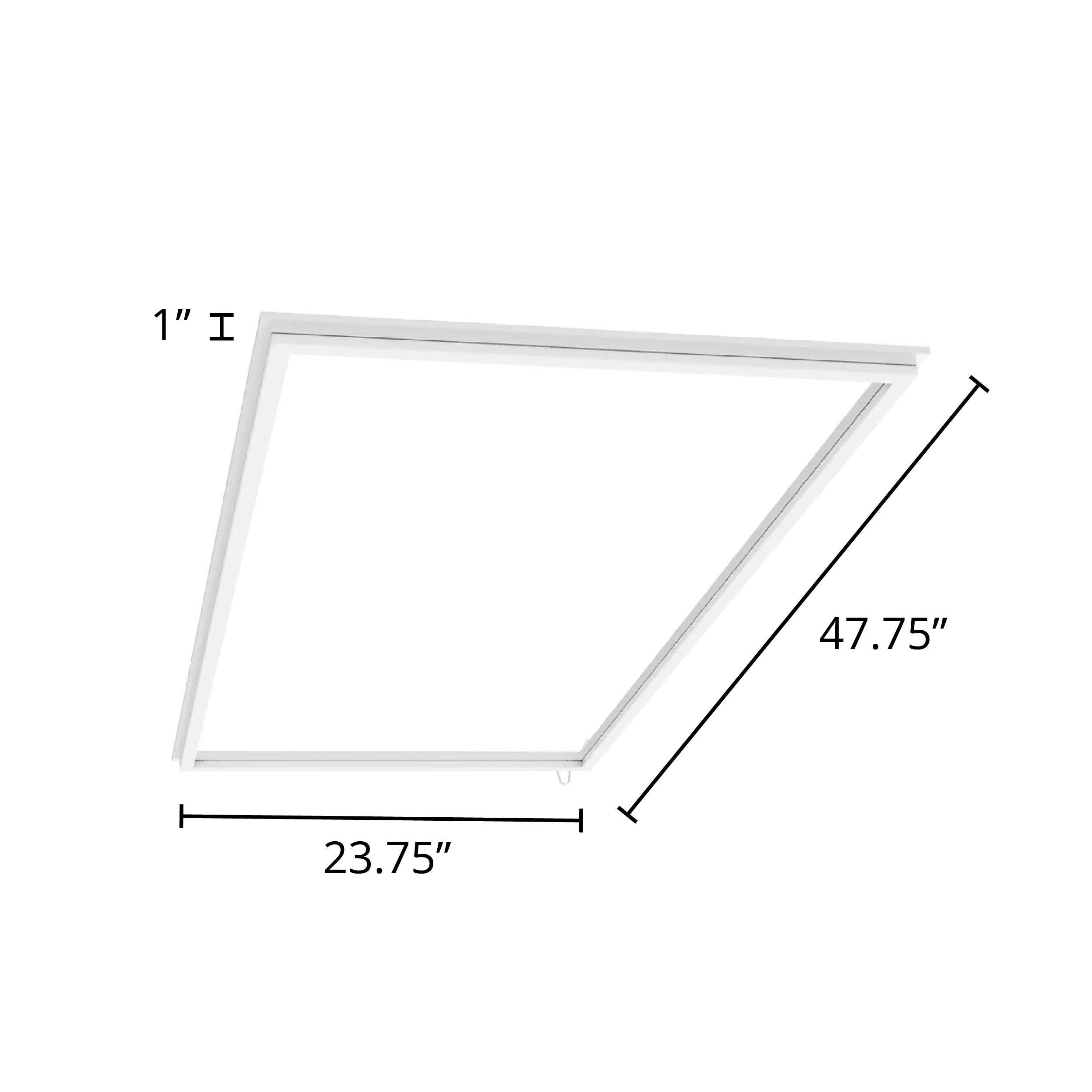

Dimensions 47.75" x 23.75" x 1"
Weight 2.8 lbs
Certification DLC Premium, UL Damp Location, IC Rated
DLC ID(s) S-S1Q1C2
Warranty 5 Years

FIXTURE CALCULATOR

Our easy tool tells you how many lights you need & how far apart they should be installed.
