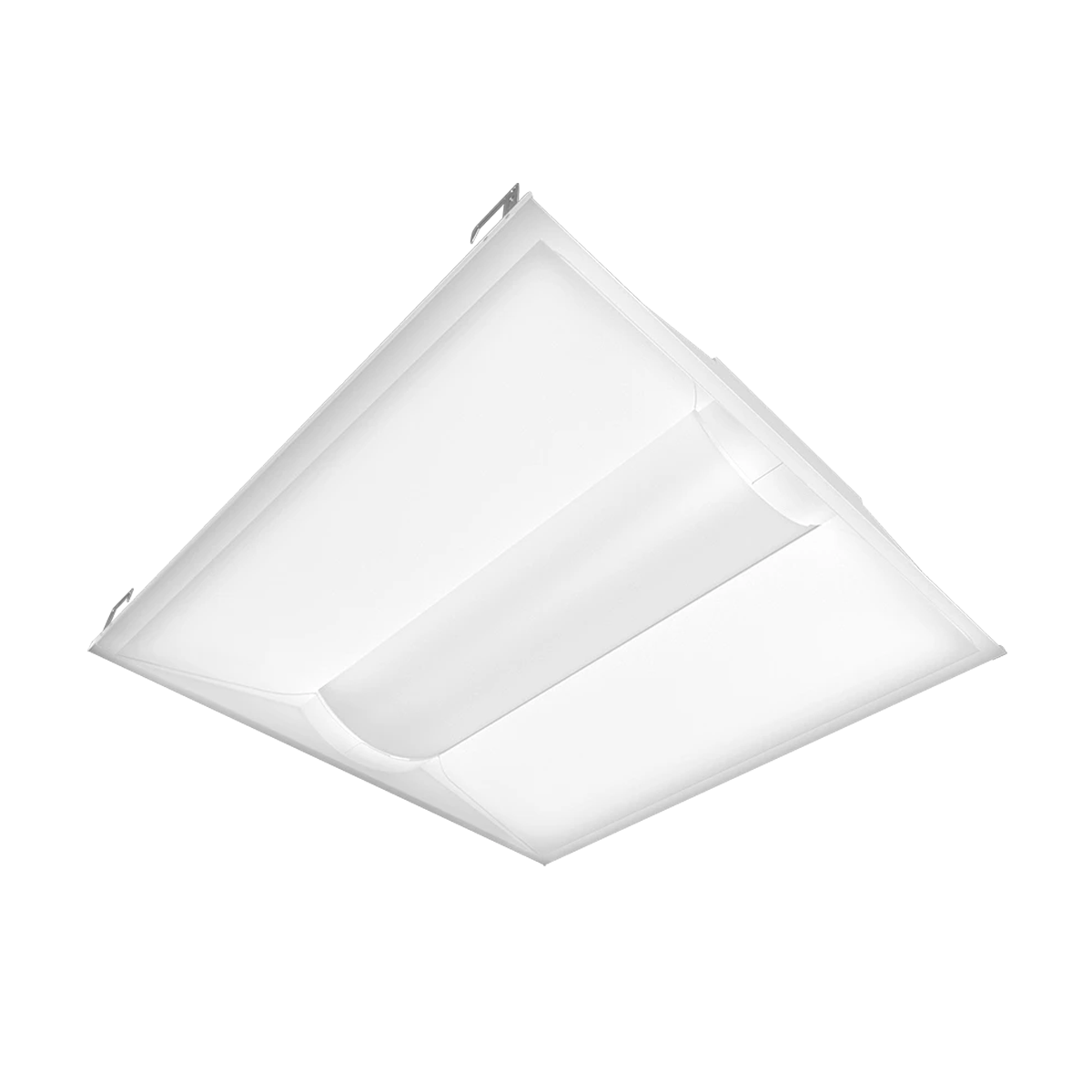

2x2 30W Selectable RAB SWISH34 LED Troffer
2x2 30W Selectable RAB SWISH34 LED Troffer
2x2 30W Selectable RAB SWISH34 LED Troffer
2x2 30W Selectable RAB SWISH34 LED Troffer
Only 6 Remaining
This 2x2 troffer pairs RAB Lighting's high color accuracy with sensor-ready controls, backed by a comprehensive No Compromise Warranty.
- CRI above 85 for true-to-life color rendering
- Up to 136 lm/W for lower energy bills
- Rated for 100,000 hours and -40°F cold starts
This 2x2 troffer pairs RAB Lighting's high color accuracy with sensor-ready controls, backed by a comprehensive No Compromise Warranty.
- CRI above 85 for true-to-life color rendering
- Up to 136 lm/W for lower energy bills
- Rated for 100,000 hours and -40°F cold starts
Choose options
Only 6 Remaining
Only 6 Remaining
Specs
| Wattage(s) | 18W/25W/30W |
| Light Output |
@3500K: 2,415/3,209/3,635 lumens @4000K: 2,397/3,240/3,650 lumens @5000K: 2,449/3,267/3,700 lumens |
| Luminous Efficacy (lm/W) | 125-136 lm/W |
| Average Lamp Life | 100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | >85 CRI |
| Dimming | 0-10V |
| Dimming Range | Down to 10% |
| Lens Cover | Frosted |
| Enclosure Rating | IC rated for direct contact with insulation |
| Input Voltage | 120-277V, 50/60Hz |
| Driver Type | Constant Current, Isolated/Class 2 |
| Power Factor | @30W, 4000K: 99.7% at 120V, 96.2% at 277V |
| THD (Total Harmonic Distortion) | @30W, 4000K: 3.7% at 120V, 4.4% at 277V |
| Surge Protection | L-N 2.5KV/LN-GND 2.5KV |
| Temperature Rating | -40°F to 104°F |
| Housing Material | 24-gauge cold-rolled steel with plastic endcaps and polycarbonate lens |
| Housing Color | White |

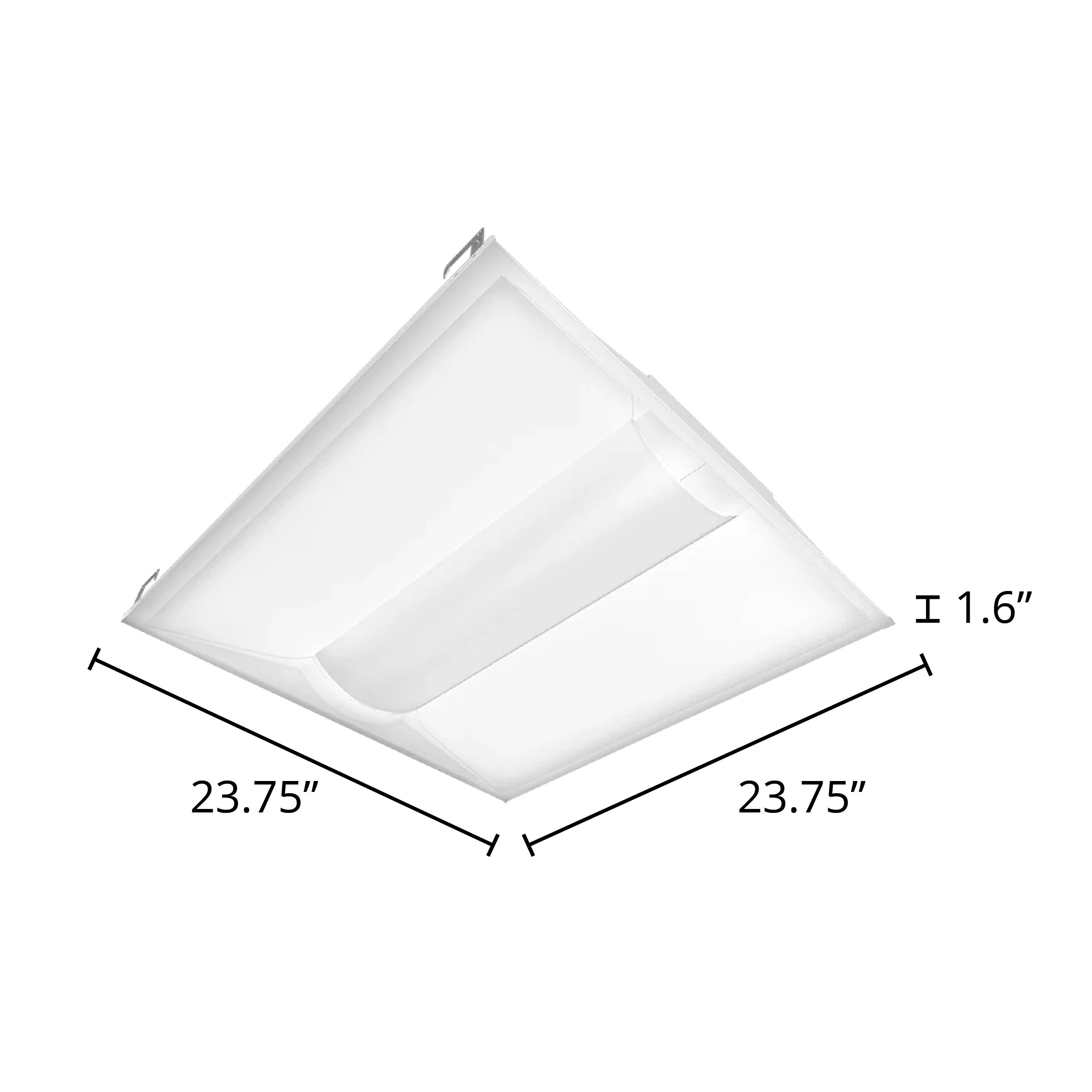

| Dimensions | 23 3/4" x 23 3/4" x 1 5/8" |
| Weight | 5.2 lbs |
| Certification | DLC Premium, UL |
| DLC ID(s) | S-9H1B2F |
| Warranty | 5 Years |
Data Sheet
IES FileDetails
High Color Accuracy, Sensor-Ready, and Backed by a No Compromise Warranty
CRI Above 85 — true-to-life color rendering for color-critical spaces.
No Compromise Warranty — 5 years of coverage on the product, plus lift and labor if a fixture needs service.
What You Get
| Spec | Value | Why It Matters |
|---|---|---|
| Light Output | 2,397–3,700 lm (varies by CCT) | Scales to match the room without swapping fixtures |
| Efficacy | 125–136 lm/W | More light per watt, lower energy bills |
| CRI | >85 | True-to-life color rendering for retail, clinical, and detail-oriented spaces |
| Wattage & CCT | 3 selectable wattages (18/25/30W), 3 CCTs (3500K/4000K/5000K) | No need to special-order three different fixtures |
| Lamp Life | 100,000 hours | Fewer replacements and lower long-term maintenance cost |
| Dimming | 0-10V, down to 10% | Compatible with standard commercial dimming controls |
| Enclosure Rating | IC-rated; rated to -40°F | Safe for insulated ceilings and cold environments |
| Warranty | 5 years — No Compromise | Covers the product itself, plus lift and labor for service |
| Certifications | DLC Premium, UL | Qualifies for utility rebates; meets safety code |
Sensor-Ready, With Room to Grow
- Selectable Wattage: Choose 18W, 25W, or 30W to match room size and light-level needs.
- Selectable CCT: Choose 3500K, 4000K, or 5000K to fit the space.
- Sensor-Ready: Compatible with optional RAB occupancy and daylight-harvesting controls.
- 0-10V Dimming: Dims down to 10% for precise energy control.
Built to Perform in Demanding Environments
- 24-Gauge Cold-Rolled Steel Housing: Durable construction with a high-reflectance finish.
- Rated to -40°F: Cold-start performance for unconditioned or cold-adjacent spaces.
- 100,000-Hour Rated Life: Fewer replacements and lower maintenance costs over time.
- IC-Rated: Safe for direct contact with ceiling insulation.
The No Compromise Warranty
RAB's 5-year warranty on this fixture doesn't stop at the product. It also covers lift and labor costs if a covered fixture needs to come down for service — not just a replacement part shipped to your door.

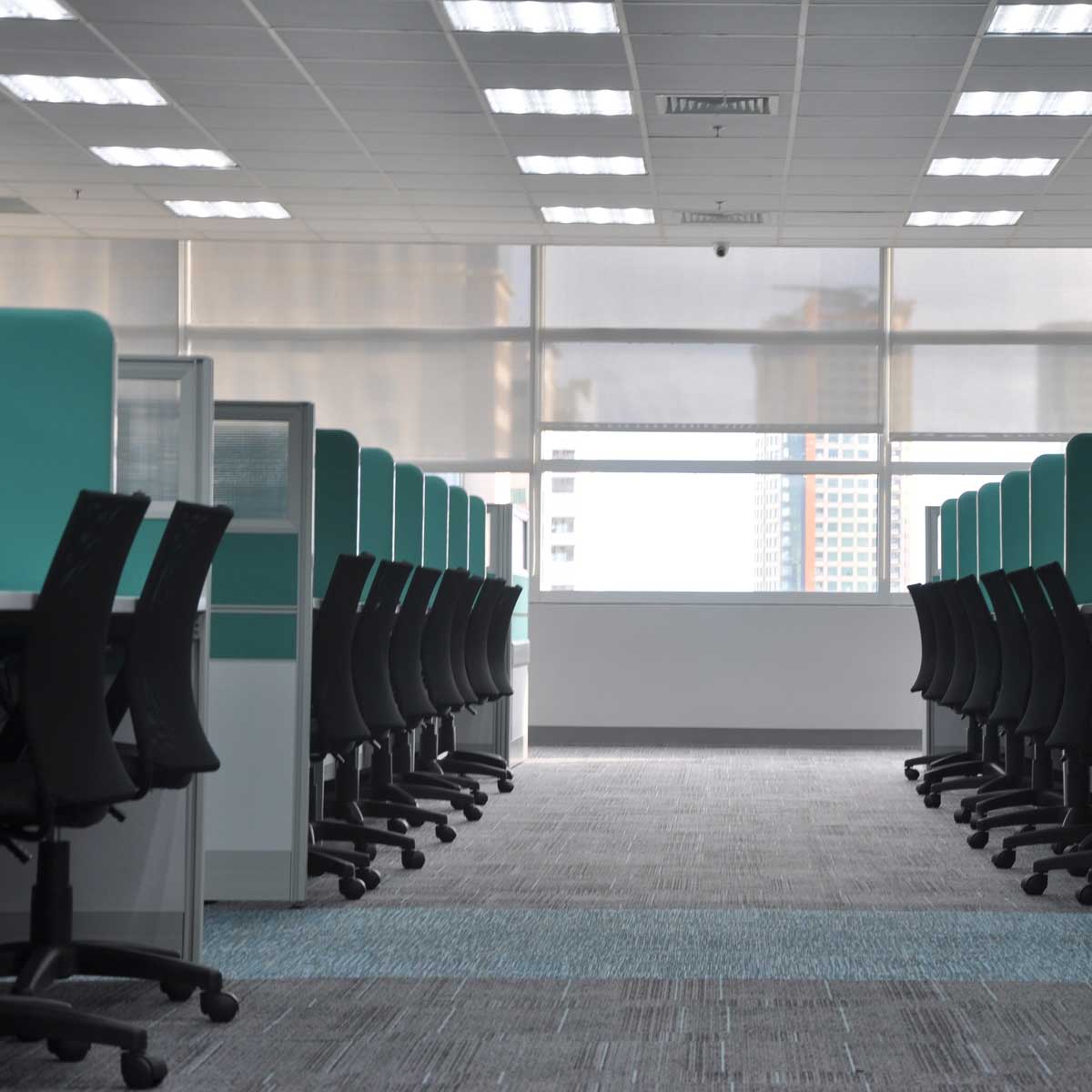

Ideal for retail displays, clinics, classrooms, and any detail-oriented workspace where accurate color rendering matters.
