Bright RAB Airtight 2x2 LED Panel Light - 40W
Lumens:
Watts:
Color Temp:
5 Year Warranty

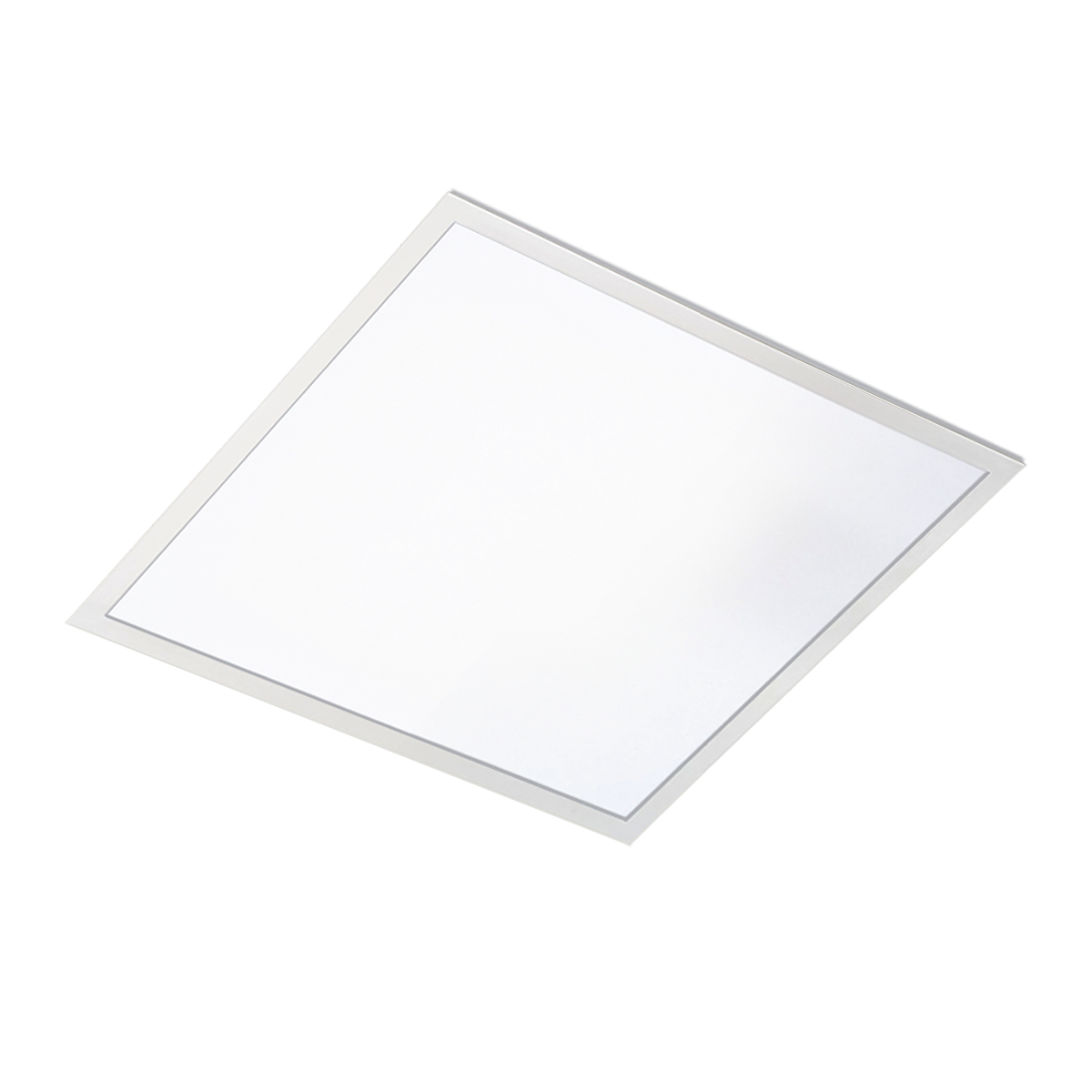

647 in stockUpgrade your drop-ceiling lighting with RAB's T34 series 2x2 flat LED panel light and save up to 73% in energy costs.
- Fits in tight spaces with a low profile design that's IC rated for direct contact with insulation
- Easy to install with integrated earthquake T-bar clips that won't get lost during installation
- Uniform, glare-free lighting distribution thanks to a frosted polystyrene lens
- Enjoy dialed-in control of your light output with the panel's 0-10V dimmable driver
- Lightweight plastic frame with galvanized 22-gauge steel back housing
- Suitable for damp locations
- 5-year limited warranty
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Upgrade your drop-ceiling lighting with RAB's T34 series 2x2 flat LED panel light and save up to 73% in energy costs.
- Fits in tight spaces with a low profile design that's IC rated for direct contact with insulation
- Easy to install with integrated earthquake T-bar clips that won't get lost during installation
- Uniform, glare-free lighting distribution thanks to a frosted polystyrene lens
- Enjoy dialed-in control of your light output with the panel's 0-10V dimmable driver
- Lightweight plastic frame with galvanized 22-gauge steel back housing
- Suitable for damp locations
- 5-year limited warranty
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
647 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
647 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 40W |
| Light Output | 4,457 lumens |
| Luminous Efficacy (lm/W) | 116.9 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 4000K |
| CRI (Color Accuracy) | 81 |
| Dimming | 0-10V |
| Lens Cover | Frosted |
| Installation | Recessed install in T-grid ceiling |
| Working Environment | Indoors, Damp Location |
| Input Voltage | 120V-277V, 50/60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor | 99.1% at 120V, 95.4% at 277V |
| THD (Total Harmonic Distortion) | 8.68% at 120V, 13.51% at 277V |
| Surge Protection | 2kV |
| Temperature Rating | -4˚F to 104˚F |
| Housing Material | Plastic frame with galvanized steel back |
| Housing Color | White |

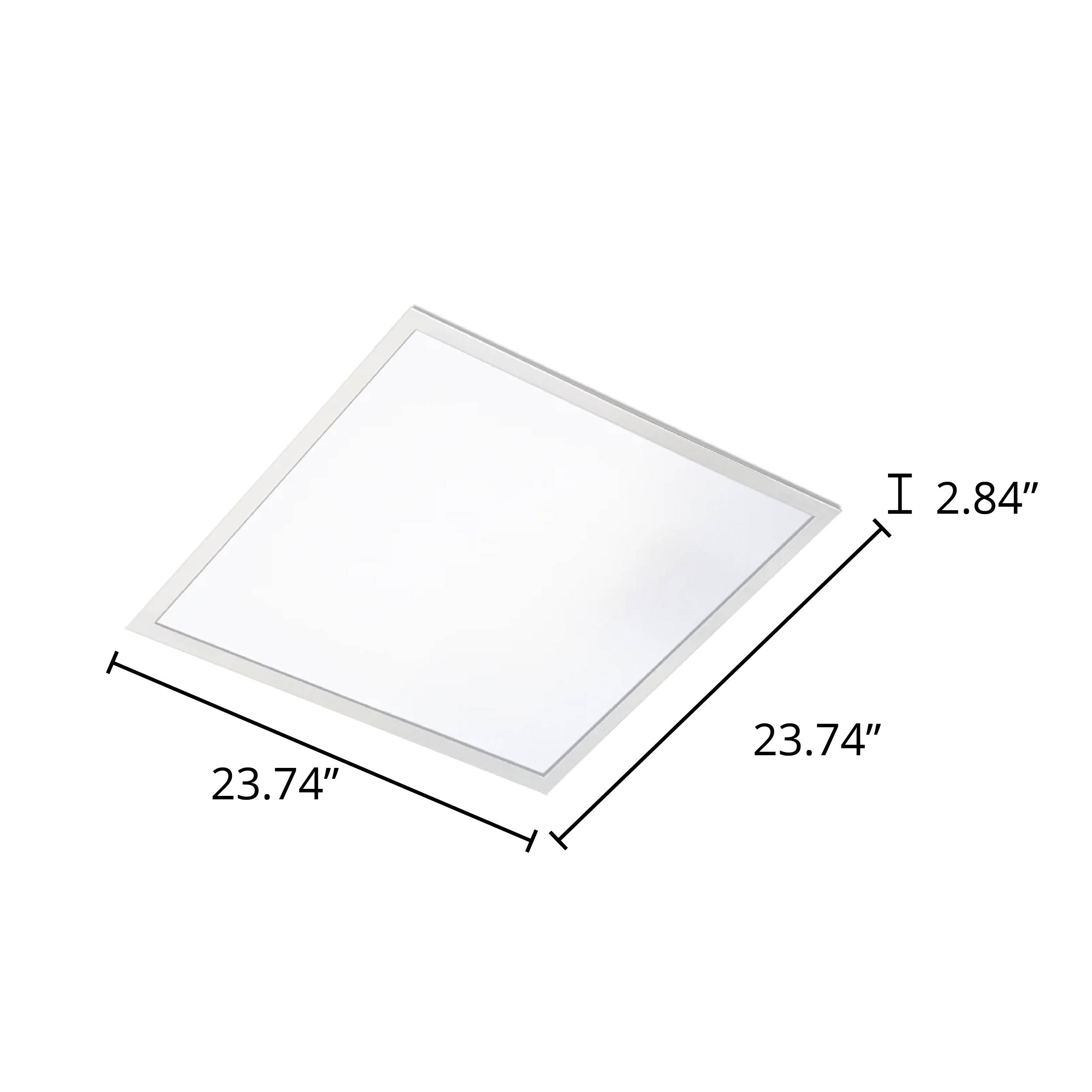

| Dimensions | 23.74" x 23.74" x 2.84" |
| Weight | 5.2 lbs |
| Certification | DLC, UL, CCEA compliant |
| DLC ID(s) | S-T0PC1J |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
2x2 LED Panel – 40W – RAB T34
|
2x2 LED Panel – 3 CCT – 15W/25W/35W – MaxLite FlatMax Value
|
2x2 Backlit LED Panel – 3 CCT – 18W/27W/36W – MaxLite FlatMax Gen4
|
|
|---|---|---|---|
| Light Output | 4,457 lumens | 2,115/3,425/4,655 lumens | At 3500K / 4000K / 5000K: 18W: 2,000 / 2,040 / 2,080 lumens 27W: 2,900 / 3,040 / 3,030 lumens 36W: 3,820 / 4,000 / 4,000 lumens |
| Color Temperature (CCT) | 4000K | 3500K/4000K/5000K | 3500K, 4000K, 5000K |
| Dimming | 0-10V | 0-10V | 0-10V |
| Lamp Life | L70: 50,000 hours | L70: ≥ 50,000 hours | L70: ≥100,000 hours |
| Certification | DLC, UL, CCEA compliant | DLC Premium, UL | DLC, ETL |
| Warranty | 5 Years | 5 Years | 10 Years |
|
$45.95
|
$46.95
View Details
|
$67.95
View Details
|
Key Features
Rated for Direct Insulation Contact
Easy Installation
Suitable for Damp Locations
Get Better Drop-Ceiling Lighting
- Low Profile Design: Fits in tight spaces, even in direct contact with insulation.
- Frosted Polystyrene Lens: Uniform, glare-free lighting that's easy on the eyes.
- Dimmable: Control output from 100% to 0% and boost energy savings.
- Integrated Earthquake T-bar Clips: Won't get lost during installation.
- 5+ Years of Operation: Average lifespan of 50,000 hours and a 5-year warranty.
