Perfect for offices, classrooms and many other applications
- Switchable lumen technology
- Backlit for smooth, even illumination
- Smooth 0-10V dimming to 1%
Need More? Text/call (858) 650-9400
Perfect for offices, classrooms and many other applications
- Switchable lumen technology
- Backlit for smooth, even illumination
- Smooth 0-10V dimming to 1%
Choose options
Details

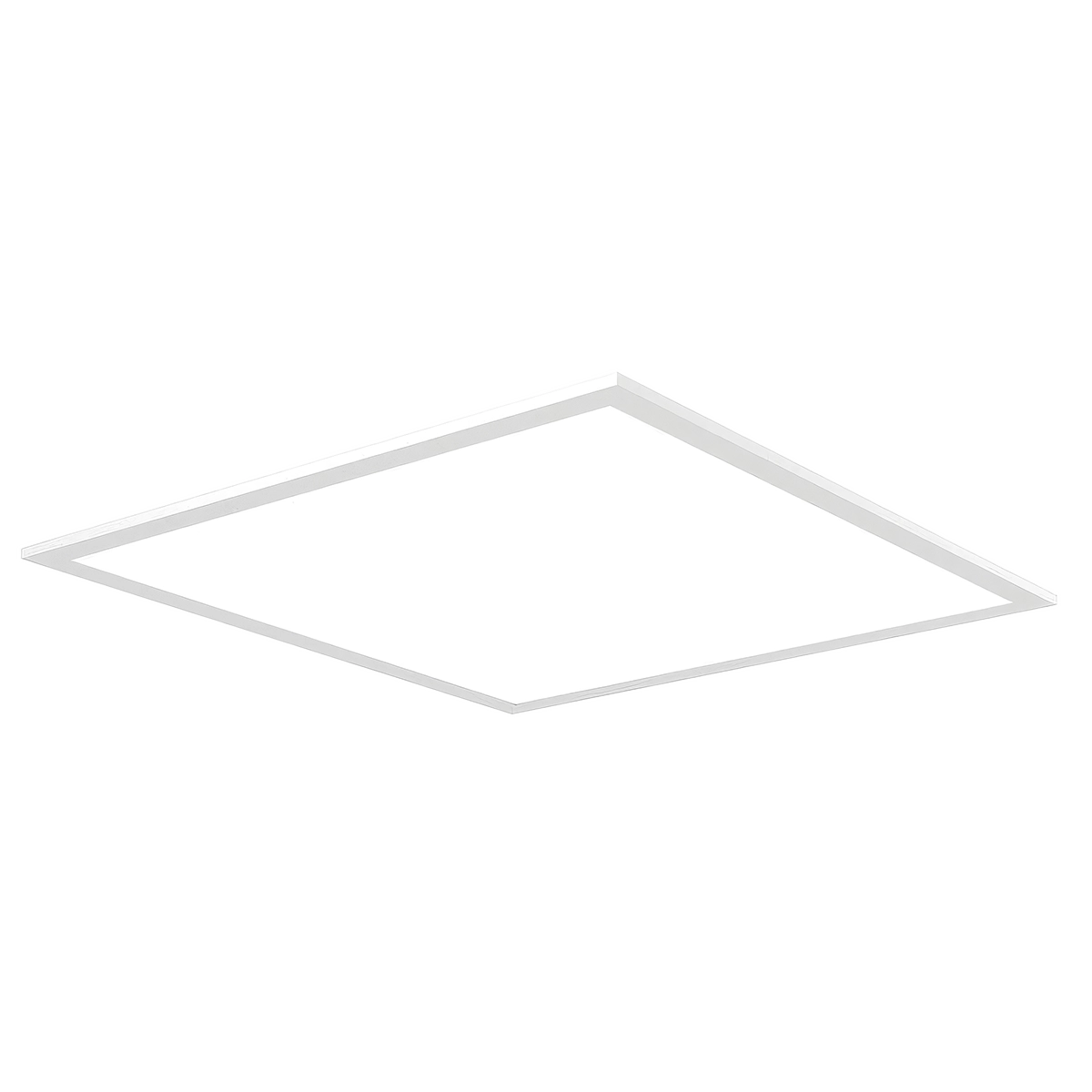

The Columbia Lighting CBT22-LS40 is a 2-foot by 2-foot, back-lit LED flat panel troffer commonly used for office, school, and commercial spaces. This specific model comes factory-configured with a 4000 K color temperature and features switchable lumen technology, allowing you to easily adjust the light output to meet your exact space requirements.
- Back-lit technology with acrylic micro-optics over each LED for smooth, edge-to-edge illumination without pixelation.
- Die-formed code-gauge steel housing with an aluminum lens frame in a matte white finish.
- Designed for recessed grid ceilings.
- IC rated for direct contact with insulation.
Specs
| Wattage(s) | 40W |
| Replaces Wattage(s) | 2 Lamp T8 |
| Light Output | 4400/3300/2750 lumens |
| Color Temperature(s) | 4000K |
| CRI (Color Accuracy) | 80 |
| Dimming | 0 to 10V |
| Lens Cover | Frosted/textured |
| Enclosure Rating | Damp location |
| Input Voltage | 120 to 277V AC |
| Dimensions |
Nominal: 2 ft x 2 ft Overall: 23 3/4" x 23 3/4" x 1 3/4" |
| Certification | cULus Listed; IC Rated; UL 1598, IC rated |
| Warranty | Warehouse clearance 1 year warranty with USA warranty support direct from ELEDLights |
Data SheetLayout & Planning
Request a Custom Layout
Complex or unique space? Get a custom layout plan from our lighting experts.
Instant Rebates
Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:
