MaxLite

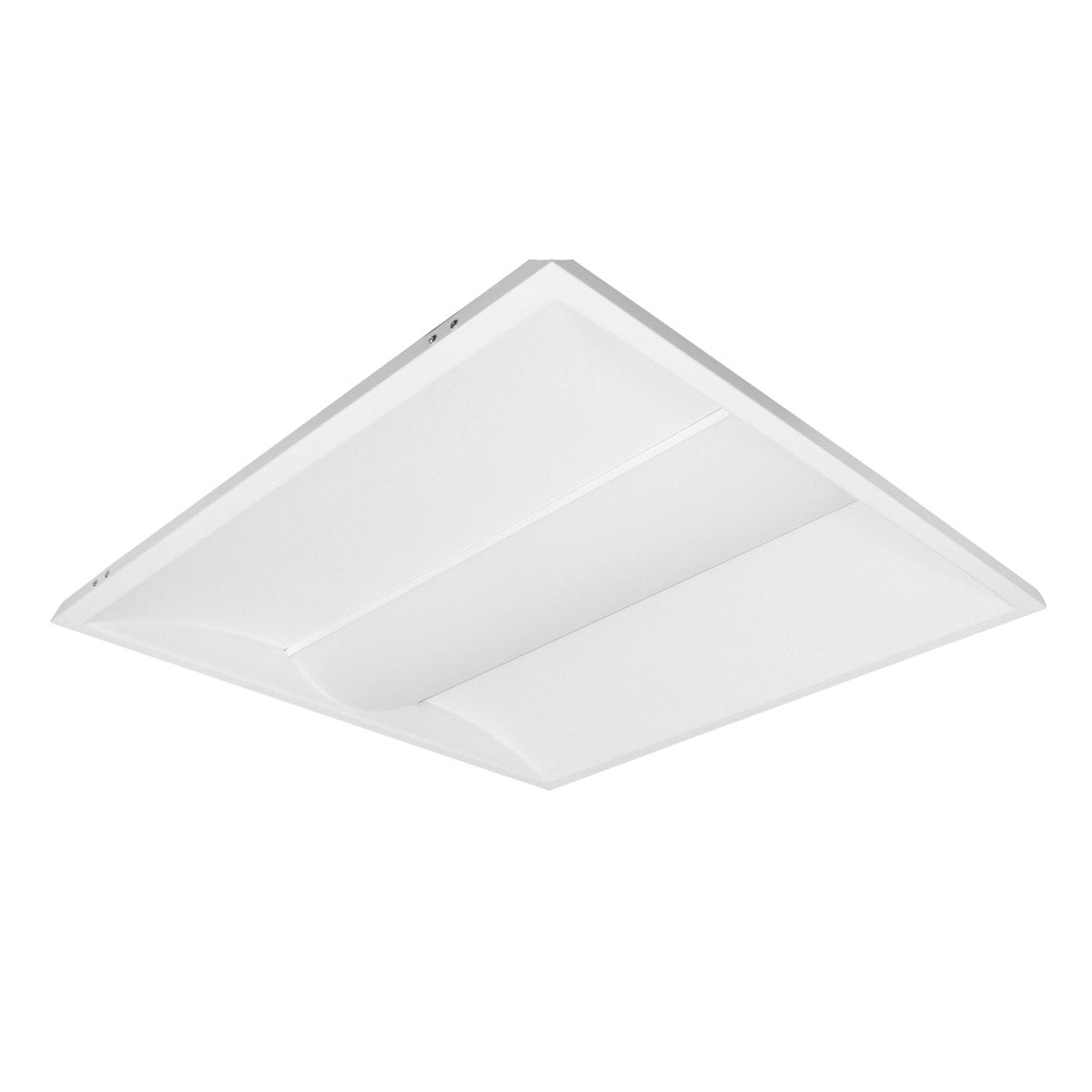

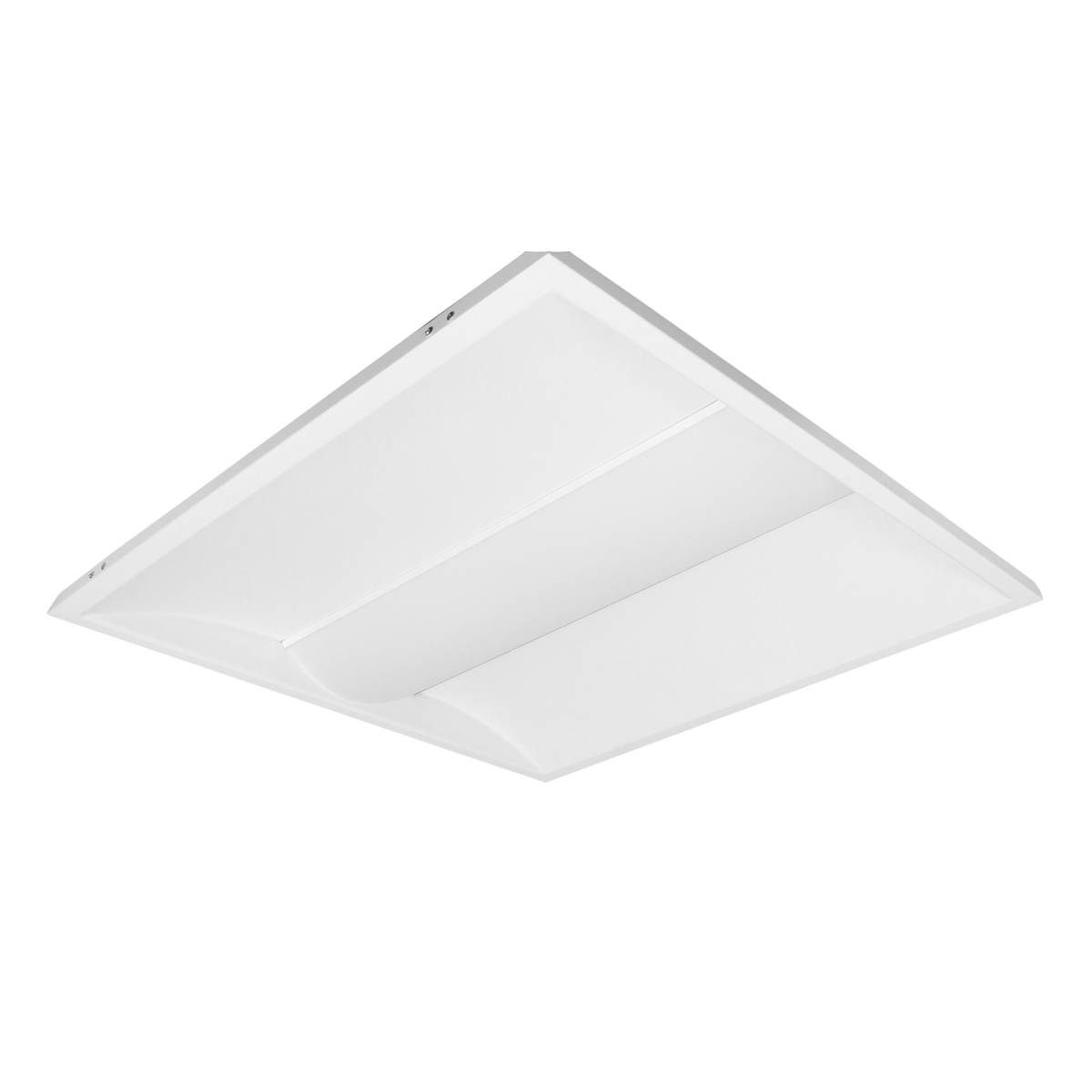

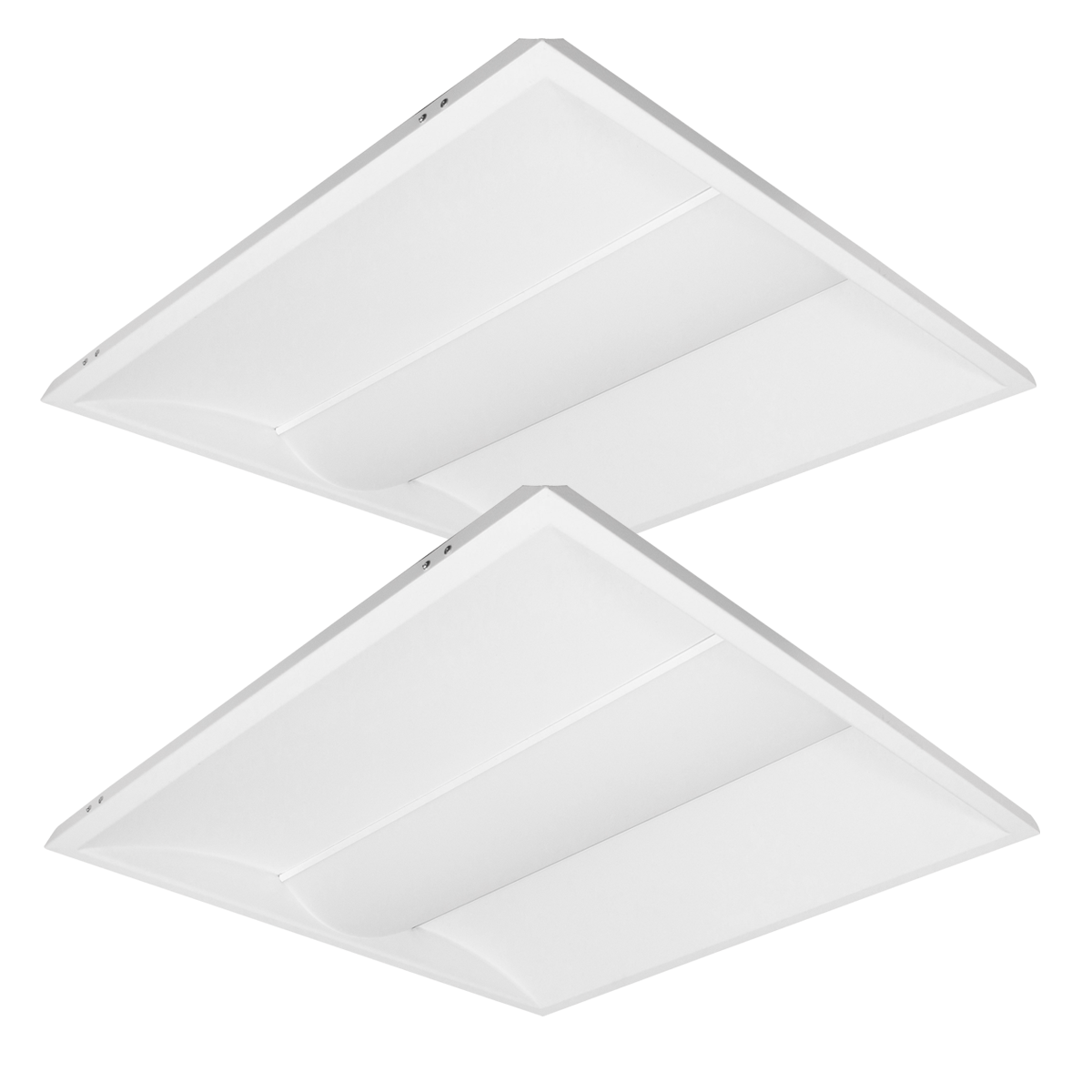

2x2 30W Selectable MaxLite ArcMax LED Troffer (2-Pack)
2x2 30W Selectable MaxLite ArcMax LED Troffer (2-Pack)
2x2 30W Selectable MaxLite ArcMax LED Troffer (2-Pack)
MaxLite
0 Reviews
2x2 30W Selectable MaxLite ArcMax LED Troffer (2-Pack)
Regular price$118.95
The MaxLite Value ArcMax 2x2 is a contractor-friendly troffer for fast, rebate-ready rollouts.
- Easy-install driver boxes and field-selectable wattage (21/25/30W) and CCT.
- DLC Premium certified and damp-rated — rebate-eligible and suitable for restrooms and locker rooms.
- Dims 10–100% with a frosted low-glare lens and 5-year warranty.
Bulk Pricing: Text (858) 650-9400 or Request Quote
The MaxLite Value ArcMax 2x2 is a contractor-friendly troffer for fast, rebate-ready rollouts.
- Easy-install driver boxes and field-selectable wattage (21/25/30W) and CCT.
- DLC Premium certified and damp-rated — rebate-eligible and suitable for restrooms and locker rooms.
- Dims 10–100% with a frosted low-glare lens and 5-year warranty.
Choose options
Details
A Contractor-Favorite for New & Remodel Construction
- Super-easy-install driver boxes: Saves time per project.
- Lay-in fluorescent troffer replacement: Simple upgrades.
- Field-selectable wattages & CCT: Use one SKU for multiple spaces.
Well-Designed to Look & Work Great for 5+ Years
- High Reflectance Finish for a sleek style.
- Frosted Lenses to softly diffuse the light.
- 10-100% Dimming Control for fine-tuning energy use.
- 50,000-hr Average Lifespan, Backed by a 5-Year Warranty.
Safe for use in damp locations like restrooms, locker rooms, laundromats, fitness centers, and more.
Specs
| Wattage(s) | 21W/25W/30W |
| Light Output | 2,625/3,125/3,750 lumens |
| Luminous Efficacy (lm/W) | 125 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | 0-10V |
| Dimming Range | 10-100% - Dim to OFF |
| Lens Cover | Polypropylene Lens |
| Working Environment | Indoors |
| Enclosure Rating | Damp location |
| Input Voltage | 120-277VAC |
| Power Factor | > 0.90 |
| Temperature Rating | -13°F to 113°F |
| Humidity | 20% to 85% RH non-condensing |
| Housing Material | Steel Sheet |
| Housing Color | White |
| Dimensions | 23.7" x 23.7" x 3.4" |
| Certification | DLC Premium, ETL |
| DLC ID(s) | S-6W3LDQ |
| Warranty | 5 Years |
Data Sheet
×
×
Instant Rebates
Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:
×
