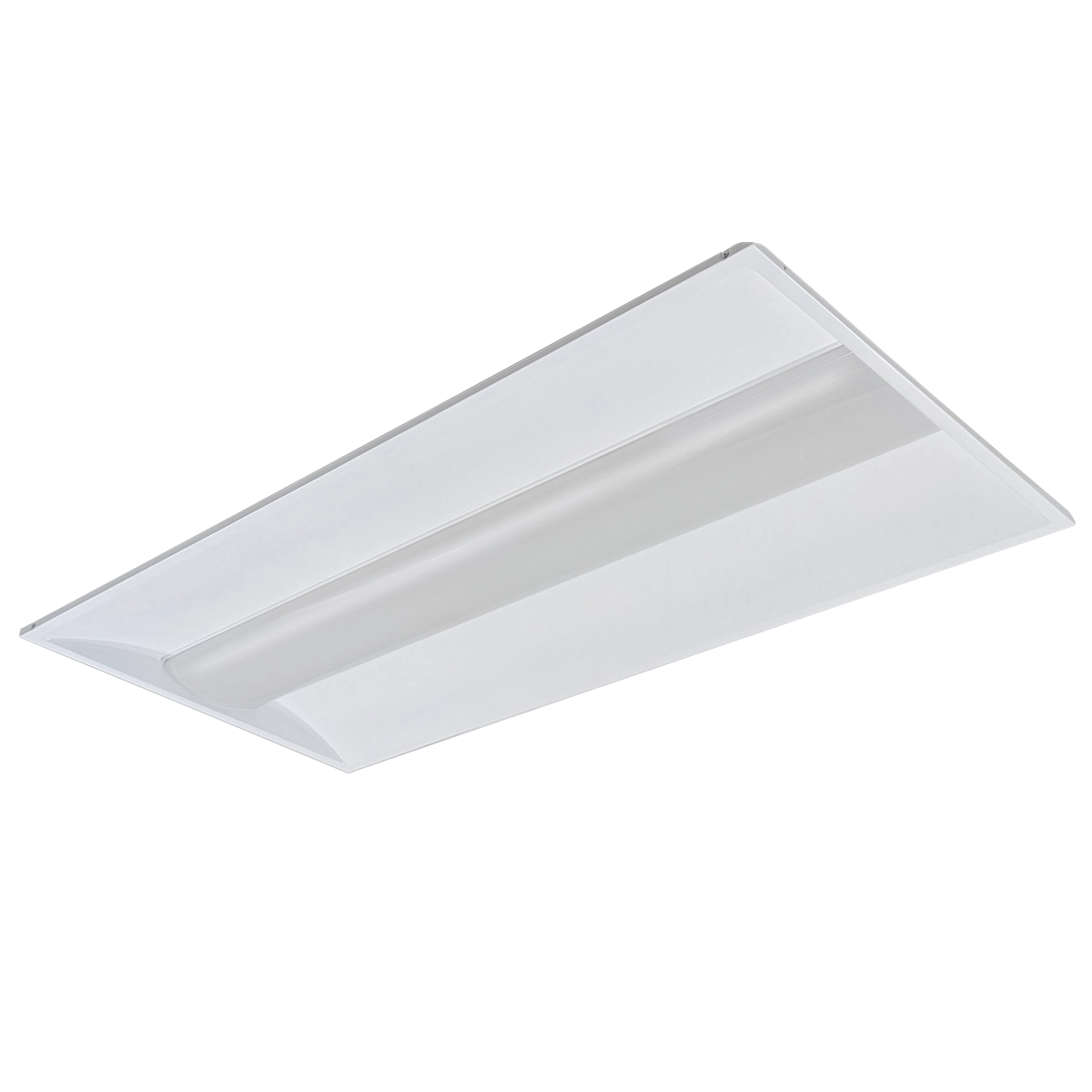

2x4 LED Troffer - 5 CCT - 30/40/50/60/72W
1 Year Warranty
Lumens:
Watts:
Color Temp:
Easy-to-Configure Troffer Accommodates All Your Spaces
- Customize Your Energy Savings: Five wattage settings allow you to optimize energy consumption to the needs of each space you install these in
- Easy Installation: Fits standard 2' x 4' T-bar grid ceilings and includes earthquake clips for enhanced safety and compliance in seismic zones
- Wide Range of Applications: With a wide operating temperature range and ETL listing for damp locations, these troffers can be used in restrooms, utility rooms, and cold storage (down to -4˚F) locations.
Replace the fluorescent troffers in your offices, school, healthcare facility, retail store, and other commercial locations for energy savings and longevity.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Easy-to-Configure Troffer Accommodates All Your Spaces
- Customize Your Energy Savings: Five wattage settings allow you to optimize energy consumption to the needs of each space you install these in
- Easy Installation: Fits standard 2' x 4' T-bar grid ceilings and includes earthquake clips for enhanced safety and compliance in seismic zones
- Wide Range of Applications: With a wide operating temperature range and ETL listing for damp locations, these troffers can be used in restrooms, utility rooms, and cold storage (down to -4˚F) locations.
Replace the fluorescent troffers in your offices, school, healthcare facility, retail store, and other commercial locations for energy savings and longevity.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
1 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
1 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 30W/40W/50W/60W/72W |
| Light Output | 3,750-9,360 lumens |
| Luminous Efficacy (lm/W) | Up to 130 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/3500K/4000K/5000K/6500K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V dimming |
| Installation | Recessed installation. Compatible with most 2' x 4' T-bar grid ceilings. Earthquake clips included. |
| Working Environment | Indoors |
| Enclosure Rating | Damp location |
| Input Voltage | 120-277V |
| Temperature Rating | -4°F-113°F |
| Housing Material | Die-formed steel housing with a white finish |
| Dimensions | 47.76" x 47.76" x 1.97" |
| Certification | ETL, Energy Star |
| Warranty | 1 Year |
COMPARE KEY FEATURES
2x4 LED Troffer - 5 CCT - 30/40/50/60/72W
|
2x4 LED Troffer – 3 CCT - 30/35/40W – RAB SWISH34
|
2x4 LED Troffer – 3 CCT – 36W/40W/45W – MaxLite Value ArcMax (2 Pack)
|
|
|---|---|---|---|
| Light Output | 3,750-9,360 lumens | @3500K: 4,140/4,650/5,208 lumens @4000K: 4,310/4,875/5,509 lumens @5000K: 4,269/4,808/5,397 lumens |
4,500/5,000/5,625 lumens |
| Color Temperature (CCT) | 3000K/3500K/4000K/5000K/6500K | 3500K/4000K/5000K | 3500K/4000K/5000K |
| Color Accuracy (CRI) | >80 | >84 CRI | 80 |
| Lamp Life | 50,000 hours | 100,000 hours | L70: 50,000 hours |
| Enclosure Rating | Damp location | Wet location | Damp location |
| Certification | ETL, Energy Star | DLC Premium, UL | DLC Premium, ETL |
|
