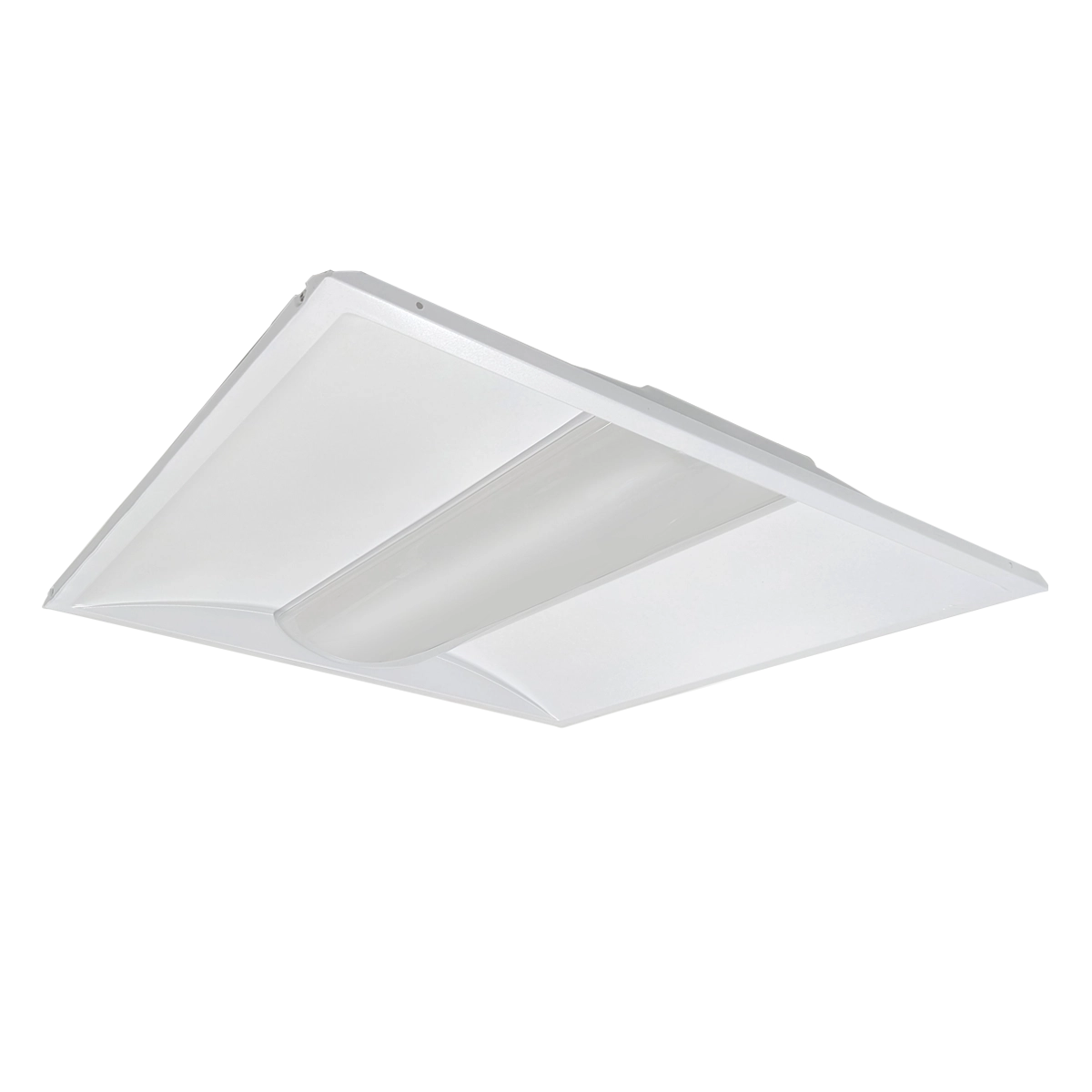

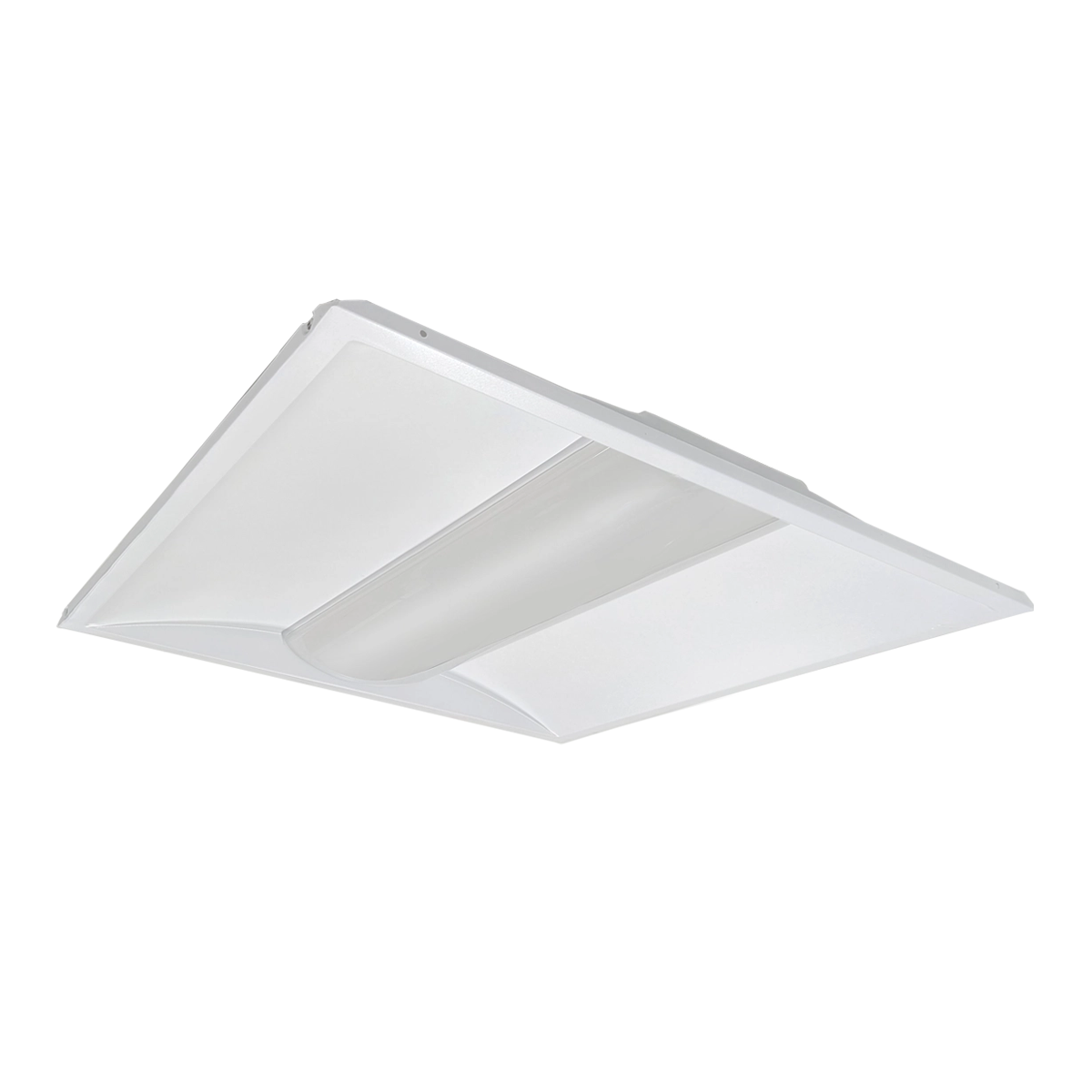

2x2 40W Selectable LED Troffer
2x2 40W Selectable LED Troffer
2x2 40W Selectable LED Troffer
2x2 40W Selectable LED Troffer
This 2x2 troffer's higher light output and five selectable wattages make it the right choice for taller ceilings, bigger rooms, and the widest range of applications.
- Up to 130 lm/W for lower energy bills
- 5 CCTs from 3000K to 6500K in one fixture
- Damp-rated to -4°F with earthquake clips included
This 2x2 troffer's higher light output and five selectable wattages make it the right choice for taller ceilings, bigger rooms, and the widest range of applications.
- Up to 130 lm/W for lower energy bills
- 5 CCTs from 3000K to 6500K in one fixture
- Damp-rated to -4°F with earthquake clips included
Choose options
Specs
| Wattage(s) | 20W/25W/30W/35W/40W |
| Light Output | 2,500 to 5,200 lumens |
| Luminous Efficacy (lm/W) | Up to 130 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/3500K/4000K/5000K/6500K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V dimming |
| Installation | Recessed mounting in 2x2 T-grid suspended ceiling. Earthquake clips included. |
| Enclosure Rating | Damp location |
| Input Voltage | 120-277V |
| Temperature Rating | -4°F to 113°F |
| Housing Material | Die-formed steel housing in a white finish |
| Dimensions | 22.75" x 22.75" x 1.97" |
| Certification | DLC, ETL |
| Warranty | 1 Year |
Data SheetDetails
Built for Taller Ceilings and the Toughest Applications
Highest Light Output in the Lineup — up to 5,200 lumens for taller ceilings and larger rooms.
Five Wattages, Five CCTs — one fixture covers more configurations than any other troffer we carry.
What You Get
| Spec | Value | Why It Matters |
|---|---|---|
| Light Output | 2,500–5,200 lm | The highest output in the lineup, suited to taller ceilings and bigger rooms |
| Efficacy | Up to 130 lm/W | More light per watt, lower energy bills |
| Wattage & CCT | 5 selectable wattages (20/25/30/35/40W), 5 CCTs (3000K–6500K) | No need to special-order five different fixtures |
| Lamp Life | 50,000 hours | Standard commercial lifespan for the price point |
| CRI | >80 | Accurate color rendering for offices, schools, and retail |
| Dimming | 0-10V | Compatible with standard commercial dimming controls |
| Enclosure Rating | Damp location; rated to -4°F; earthquake clips included | Handles restrooms, cold storage, and seismic-zone installs |
| Warranty | 1 year standard | Extended warranty available as an add-on for added coverage |
| Certifications | DLC, ETL | Qualifies for utility rebates; meets safety code |
Dial-In the Exact Lighting Performance You Need:
- Selectable Wattage: Choose 20W, 25W, 30W, 35W, or 40W to match room size and light-level needs.
- Selectable CCT: Choose 3000K, 3500K, 4000K, 5000K, or 6500K to fit the space.
- 0-10V Dimming: Compatible with standard commercial dimming controls.
- Earthquake Clips Included: Meets seismic-zone installation requirements out of the box.
Built for a Wide Range of Environments
- Damp-Location Rated: Suitable for restrooms, utility rooms, and similar spaces.
- Rated to -4°F: Performs reliably in cold storage and unconditioned spaces.
- Die-Formed Steel Housing: Durable construction for long-term commercial use.
- Widest Configuration Range: 5 wattages x 5 CCTs cover more scenarios than any other troffer we carry.
Ideal for offices, schools, healthcare facilities, retail stores, restrooms, utility rooms, and seismic-zone installations.
