2x2 25W Selectable MaxLite FlatMax Gen5 LED Panel Light
2x2 25W Selectable MaxLite FlatMax Gen5 LED Panel Light
2x2 25W Selectable MaxLite FlatMax Gen5 LED Panel Light
2x2 25W Selectable MaxLite FlatMax Gen5 LED Panel Light
The MaxLite 2x2 LED Panel packs flexible, rebate-eligible performance into a compact fixture.
- 140 lm/W for lower energy bills
- 100,000-hour rated life — double the industry standard
- 10-year warranty on every fixture
The MaxLite 2x2 LED Panel packs flexible, rebate-eligible performance into a compact fixture.
- 140 lm/W for lower energy bills
- 100,000-hour rated life — double the industry standard
- 10-year warranty on every fixture
Choose options
Details
A Controls-Ready Panel Light Built to Outlast the Standard
Plug-and-Play Controls — add motion and daylight sensors without rewiring.
Double the Standard Lifespan — 100,000-hour rated life and a 10-year warranty.
What You Get
| Spec | Value | Why It Matters |
|---|---|---|
| Light Output | 2,100–3,500 lm | Scales to match the room without swapping fixtures |
| Efficacy | 140 lm/W | More light per watt, lower energy bills |
| Wattage & CCT | 3 field-selectable wattages (15/20/25W), 3 CCTs (3500K/4000K/5000K) | One fixture replaces three separate SKUs |

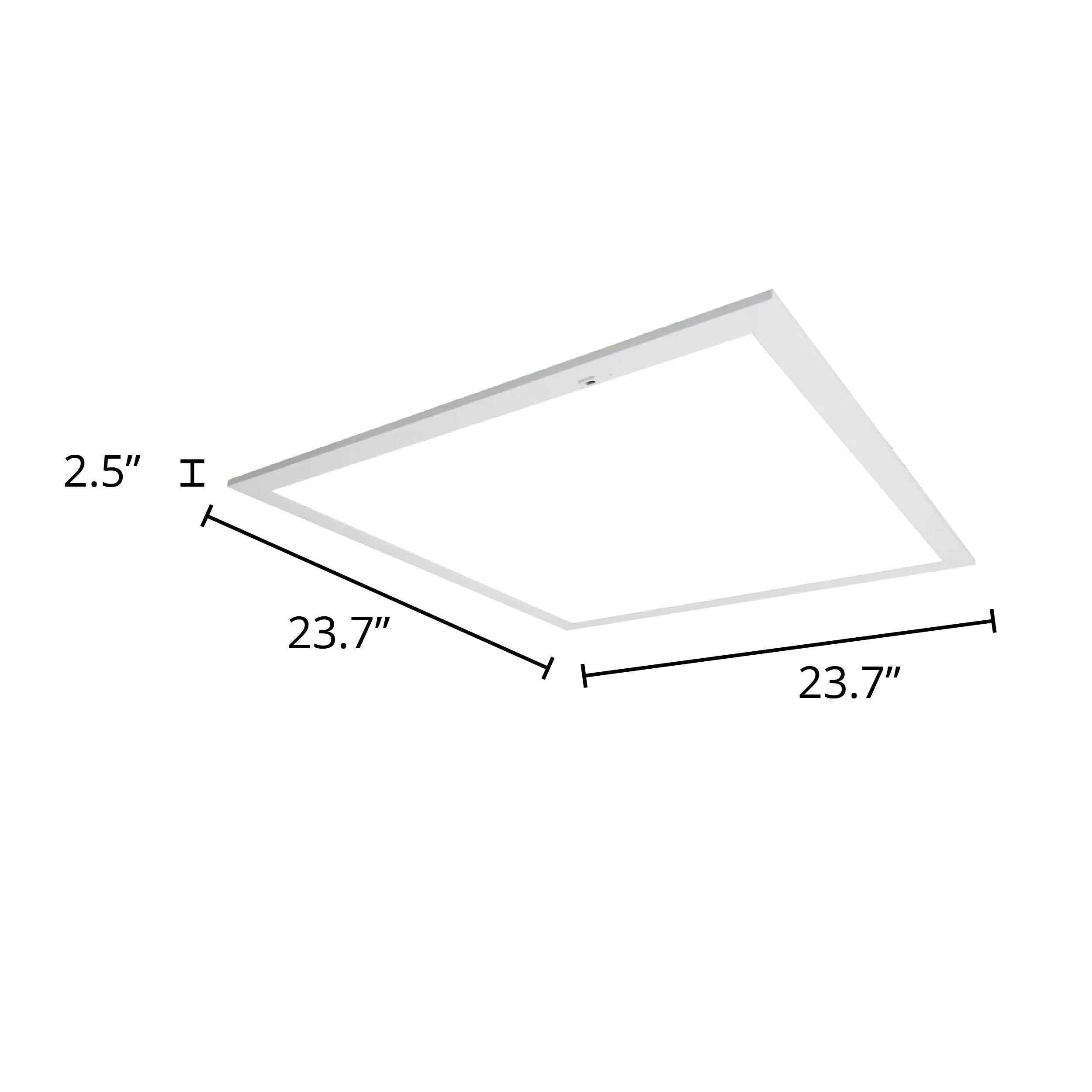

| Form Factor | 23.7" x 23.7" x 2.5" | Standard profile drops into 2x2 T-grid ceilings |
| Lamp Life | 100,000 hours | Roughly double the typical panel light lifespan |
| CRI | ≥80 | Accurate color rendering for offices, schools, and healthcare |
| Dimming | 0-10V + plug-and-play sensor port | Add motion or daylight sensors without rewiring |
| Certifications | DLC 5.1, ETL | Qualifies for utility rebates; meets safety code |
Controls-Ready, Right Out of the Box
- Selectable Wattage: Choose 15W, 20W, or 25W to match room size and light-level needs.
- Selectable CCT: Choose 3500K, 4000K, or 5000K to fit the space.
- Plug-and-Play Sensor Port: Add a motion or daylight sensor for smart dimming with no rewiring (sold separately).
- 0-10V Dimming: Compatible with standard commercial dimming controls.
Built for Long-Term Commercial Performance
- 100,000-Hour Rated Life: Roughly double the industry-standard 50,000-hour lifespan.
- 10-Year Warranty: Twice the coverage of a typical 5-year panel light warranty.
- Steel Housing: Durable frame built for long-term commercial use.
- Rated to -4°F: Performs reliably in unconditioned storage or transitional spaces.
How It Compares to Our PB02 2x2 Panel Light
Both this MaxLite FlatMax Gen 5 and LED Living's PB02 panel light are DLC-listed 2x2 panel lights. Here's how the specs stack up so you can pick the right fit:
| This Fixture | PB02 2x2 40W Panel Light | |
|---|---|---|
| Selectable Wattages | 15/20/25W | 20/30/40W |
| Light Output | 2,100–3,500 lm | 2,500–5,000 lm |
| Efficacy | 140 lm/W | 125 lm/W |
| Lamp Life | 100,000 hours | 50,000 hours |
| Warranty | 10 years | 5 years |
| Controls-Ready | Yes — plug-and-play sensor port | No integrated sensor port |
Ideal for offices, classrooms, healthcare facilities, and other spaces upgrading to smart, controls-ready lighting.
Specs
| Wattage(s) | 15W/20W/25W - User-selectable during install |
| Light Output | 2100/2800/3500 lumens, dependent on selected wattage |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life | 100000 hours |
| Color Temperature(s) | 3500K, 4000K, 5000K |
| CRI (Color Accuracy) | ≥80 |
| Dimming | 0-10V |
| Lens Cover | Frosted |
| Working Environment | Indoor |
| Light Type | Wired Fixture |
| Input Voltage | 120-277VAC |
| Temperature Rating | -4°F to 122°F (-20°C to 50°C) |
| Housing Material | Steel with polystyrene lens |
| Housing Color | White frame |
| Dimensions | 23.7" x 23.7" x 2.5" |
| Certification | DLC 5.1, ETL |
| Warranty | 10 Years |
