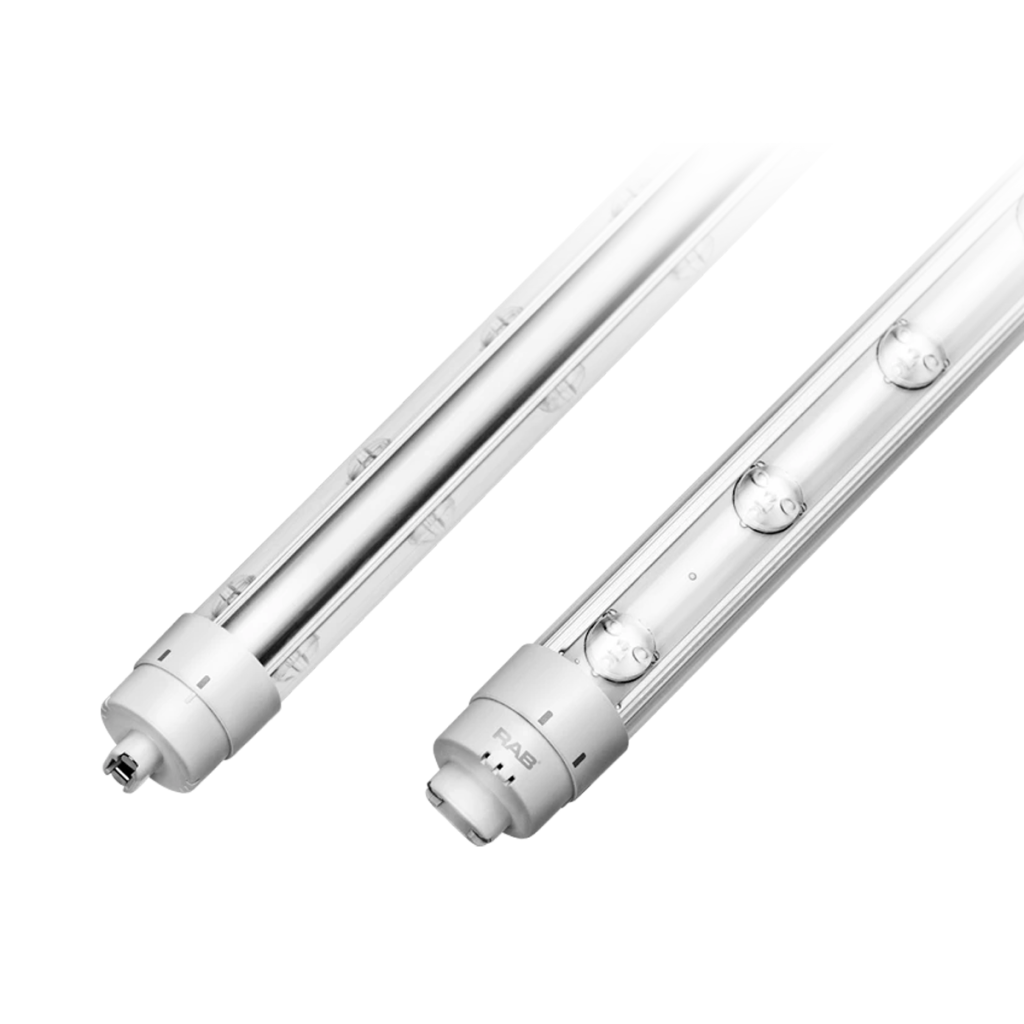

RAB 2ft 360˚ LED Sign Tube - 9W - Type B
Lumens:
Watts:
Color Temp:
5 Year Warranty
Bright, Reliable LED Lighting for Your Signs
- Simple retrofit install. Double-ended ballast bypass design allows quick replacement of fluorescent T12HO and T8HO tubes—just bypass the ballast and connect power directly.
- Even, full-coverage illumination. LEDs on both sides deliver 360° light output with smooth diffusion—no more hot spots or uneven sign lighting.
- Durable and efficient. Built with robust plastic and aluminum for reduced breakage, these 9W, 1200-lumen T8 tubes last 50,000 hours and perform in temps from -20°C to 55°C.
Use cases
Ideal for sign cabinets, box signs, outdoor displays, and backlit panels in retail centers, gas stations, and property signage.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Bright, Reliable LED Lighting for Your Signs
- Simple retrofit install. Double-ended ballast bypass design allows quick replacement of fluorescent T12HO and T8HO tubes—just bypass the ballast and connect power directly.
- Even, full-coverage illumination. LEDs on both sides deliver 360° light output with smooth diffusion—no more hot spots or uneven sign lighting.
- Durable and efficient. Built with robust plastic and aluminum for reduced breakage, these 9W, 1200-lumen T8 tubes last 50,000 hours and perform in temps from -20°C to 55°C.
Use cases
Ideal for sign cabinets, box signs, outdoor displays, and backlit panels in retail centers, gas stations, and property signage.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Lumens:
Watts:
Color Temp:
5 Year Warranty
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 9W |
| Replaces Wattage(s) | 35W |
| Light Output | 1,200 lumens |
| Luminous Efficacy (lm/W) | 133 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 6500K |
| CRI (Color Accuracy) | 80 |
| Dimming | No |
| Bulb Shape | T8 |
| Base Type | R17d |
| Lens Cover | Clear |
| Ballast Compatibility | Compatible with all fluorescent fixtures—Bypass the ballast before installing tube |
| Installation | Type B ballast bypass with double-ended power |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Temperature Rating | -4°F to 131°F (-20°C to 55°C) |
| Housing Material | Plastic and aluminum |

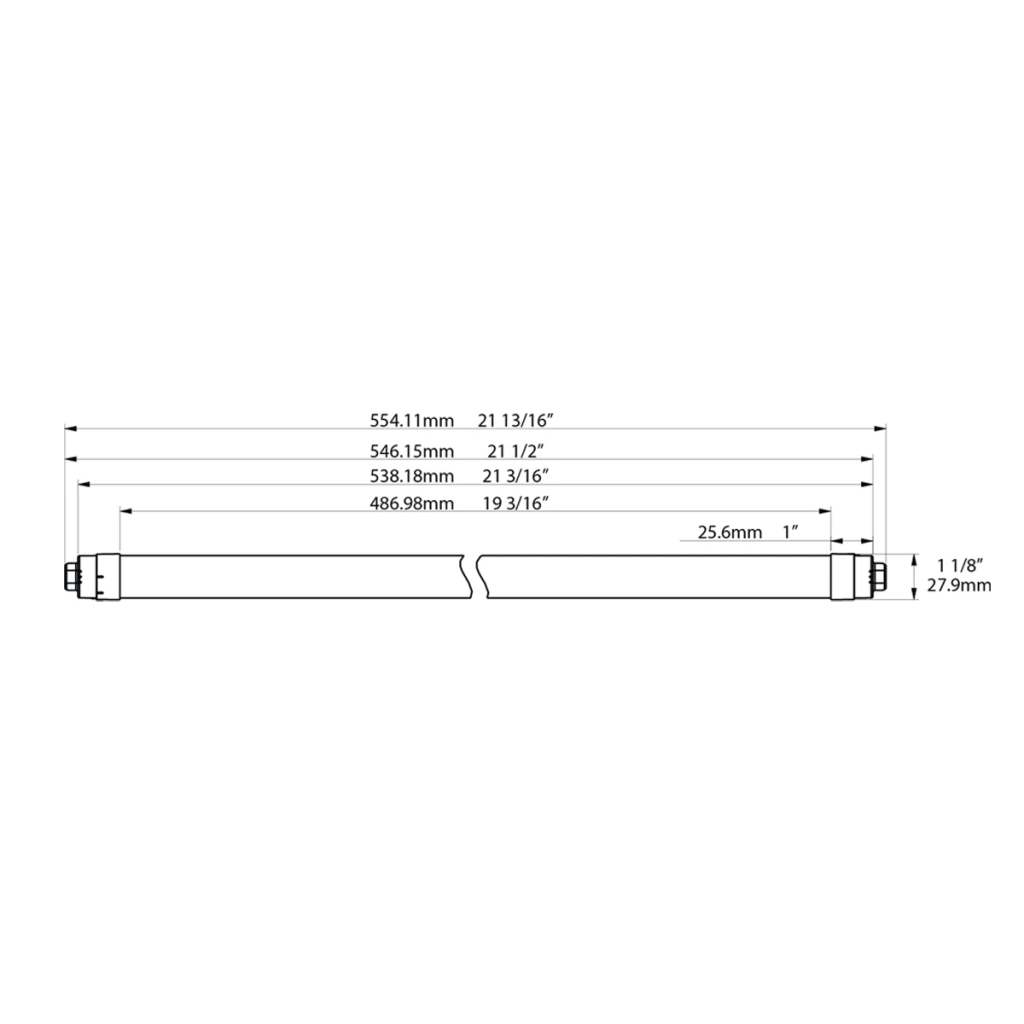

| Dimensions | 21.81" x 1.13" |
| Weight | 0.5 lbs |
| Certification | UL Listed, Damp Location |
| Warranty | 5 years |
