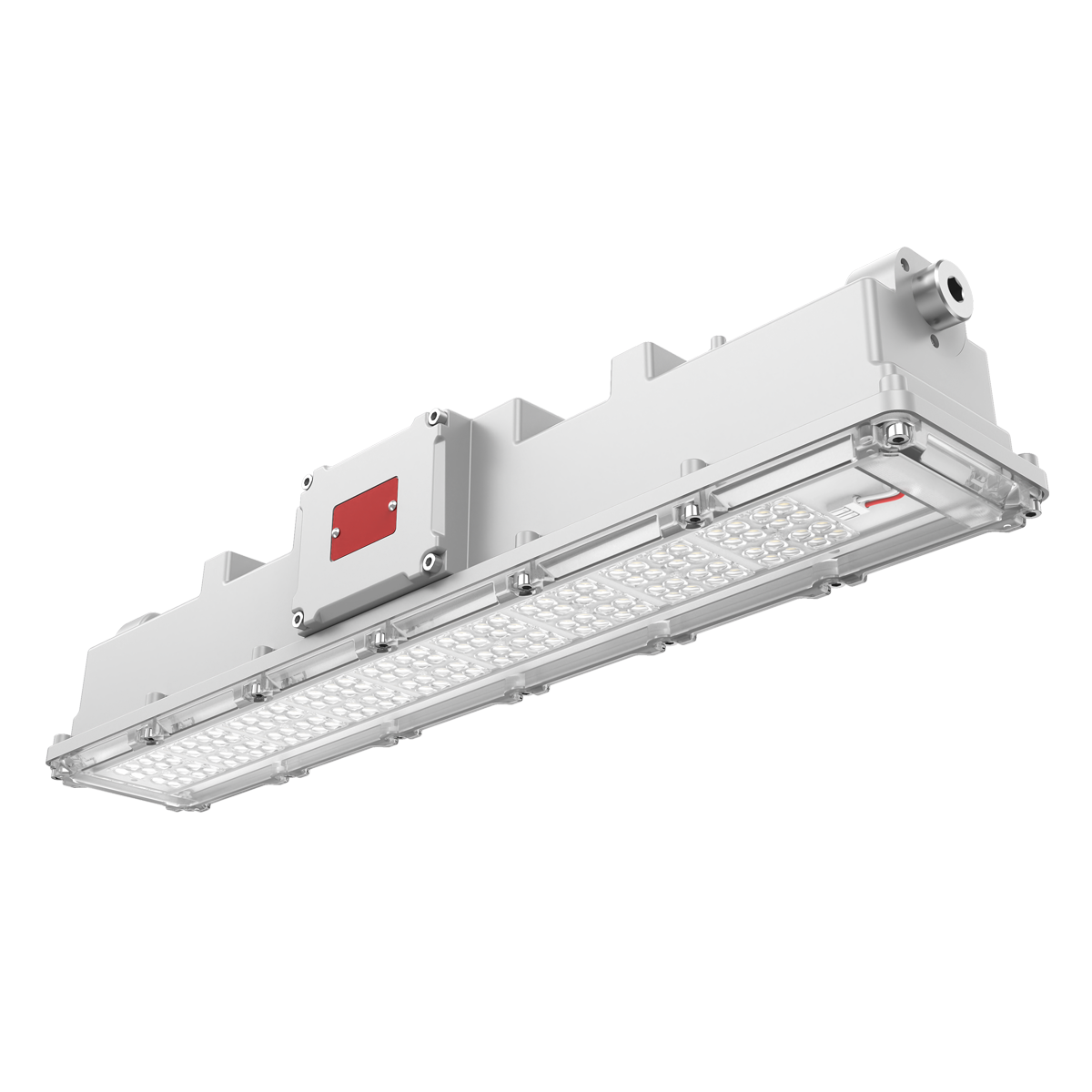

2ft 30W Hazardous Location & Marine Grade Linear Light
Regular price
A compact 2ft Class I Div 2 linear light for tight or difficult spaces — linkable, marine-grade.
- Class I Div 2 and Class II Div 2 certified — Type 4X, IP66, marine-rated for rain and salt spray.
- Self-locking spring terminals and double-cable entry for end-to-end fixture interconnection.
- 5-year warranty for chemical processing, fuel storage, marine vessels, and refineries.
A compact 2ft Class I Div 2 linear light for tight or difficult spaces — linkable, marine-grade.
- Class I Div 2 and Class II Div 2 certified — Type 4X, IP66, marine-rated for rain and salt spray.
- Self-locking spring terminals and double-cable entry for end-to-end fixture interconnection.
- 5-year warranty for chemical processing, fuel storage, marine vessels, and refineries.
Choose options
Regular price
Regular price
Specs
| Wattage(s) | 30W |
| Replaces Wattage(s) | 100W |
| Light Output | 4,800 lumens |
| Luminous Efficacy (lm/W) | 160 lm/W |
| Average Lamp Life |
L90: 77000 hours L80: 175,200 hours L70: 282,900 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Beam Angle | 120° |
| EPA (Effective Projected Area) | 0.09m2 (0.96ft2) |
| Enclosure Rating | IP66, IK08 |
| LED Type | LED 3030 |
| Input Voltage | 100-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | INVENTRONICS |
| Power Factor | >0.9 |
| Surge Protection | 4kV line-line, 6kV line-earth |
| Temperature Rating | -40°F to +104°F |
| Housing Material | Fiberglass Reinforced Polycarbonate Housing, Polycarbonate Lens |
| Housing Color | Gray |

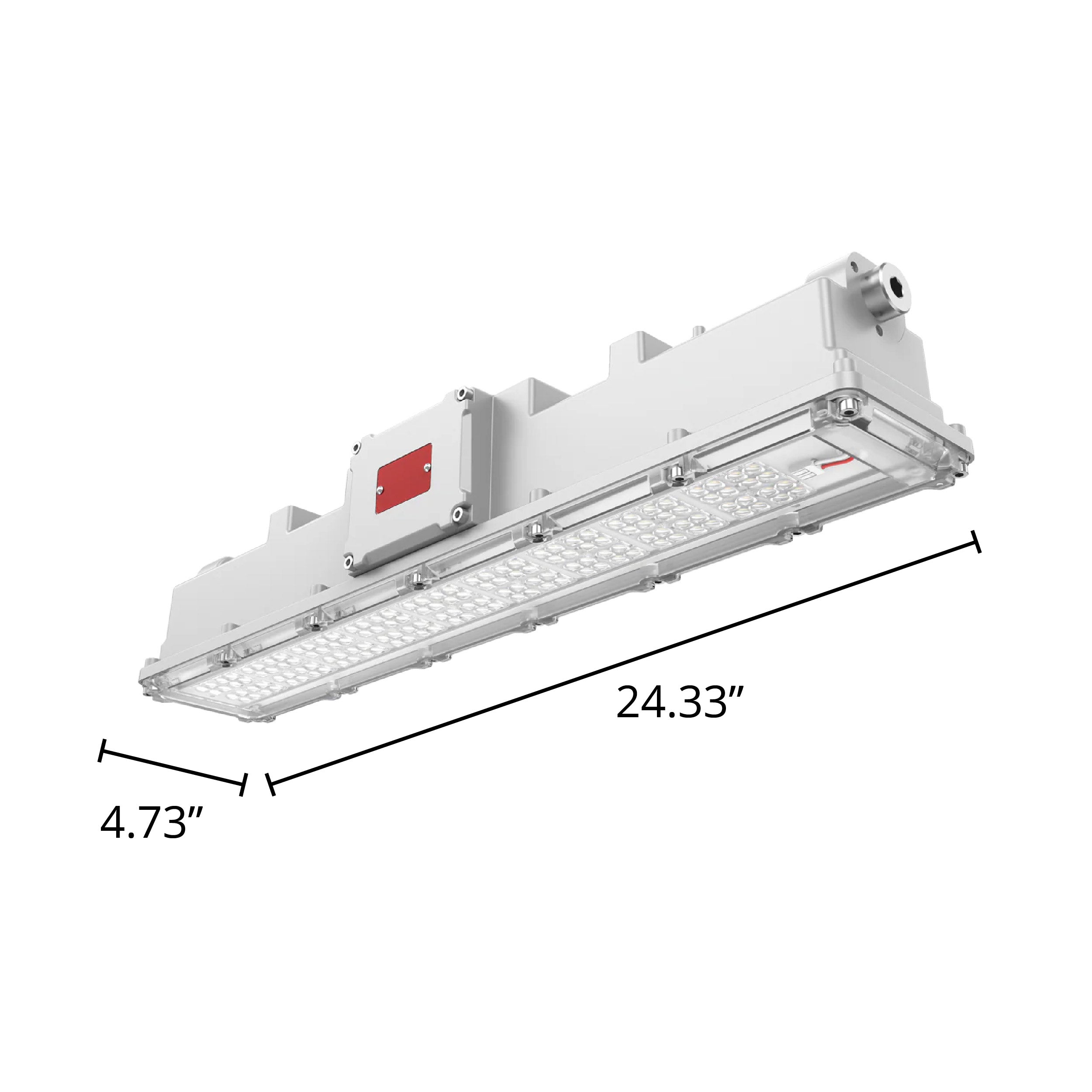

| Dimensions |
Pendant Mount: 618x120x178mm (24.33” x 4.73” x 6.99”) Trunnion Mount: 618x120x202mm (24.33” x 4.73” x 7.96”) |
| Weight |
Pendant Mount: 3.3kg(7.26lbs) Trunnion Mount: 3.5kg(7.7lbs) |
| Certification | UL, CSA |
| Warranty | 5 Years |
| Additional Specifications |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 2, GR. F, G Class III |
Data SheetDetails
Robust Structure with Outstanding Performance
Unmatched durability combined with energy efficiency and safety certifications to deliver powerful illumination in hazardous and marine environments.
-

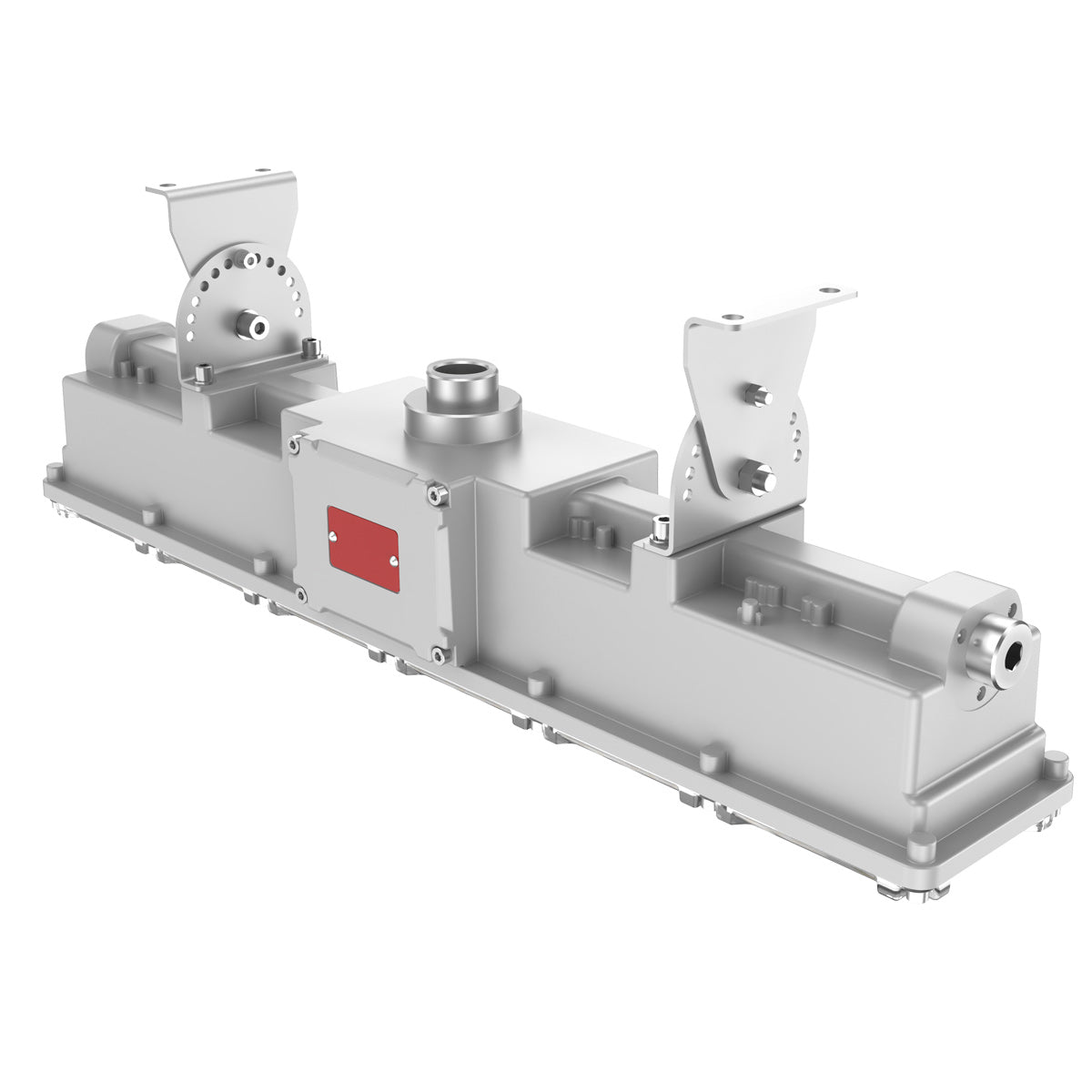

Easy Installation with self-locking spring terminals, an angle-adjustable mounting bracket, and double-cable entry for interconnection between fixtures.
- Hazardous Location Rated (Class I Div 2) – For areas where explosive gases may be present only under abnormal conditions, such as in the event of a leak or failure.
- Dust-ignition Proof (Class II Div 2) – Safe for use in environments where combustible dusts are present but not normally in explosive concentrations.
- Simultaneous Presence – This light can be used in environments with both flammable gases/vapors and combustible dust/fibers.
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray.
- Suited to Cold Environments with an operating temperature down to -40°F.
This linear LED light is an energy-saving choice for many textile & fabric manufacturing, wood & paper processing, chemical & pharmaceutical, and food & agricultural applications.
