2ft 40W Selectable Architectural LED Linear Up/Down Light
2ft 40W Selectable Architectural LED Linear Up/Down Light
2ft 40W Selectable Architectural LED Linear Up/Down Light
2ft 40W Selectable Architectural LED Linear Up/Down Light
A sleek architectural pendant with precise control over output, color temp, and up/down balance.
- Independently adjust uplight and downlight with five CCT options from 3000K to 6500K on-site.
- Link up to 8 units with I, L, T, and X connectors for custom layouts in any commercial space.
- Uplight reduces glare for greater visual comfort in offices, retail settings, and more.
A sleek architectural pendant with precise control over output, color temp, and up/down balance.
- Independently adjust uplight and downlight with five CCT options from 3000K to 6500K on-site.
- Link up to 8 units with I, L, T, and X connectors for custom layouts in any commercial space.
- Uplight reduces glare for greater visual comfort in offices, retail settings, and more.
Choose options
Specs
| Wattage(s) | 15/20/25/30/40W |
| Replaces Wattage(s) | 120W |
| Light Output | 1,950/2,600/3,250/3,900/5,200 lumens |
| Luminous Efficacy (lm/W) | 130 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K/5700K/6500K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V |
| Light Distribution Pattern |
General distribution pattern
Learn More
×
Light Distribution OptionsType III Beam  Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam  Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam  Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Installation |
Suspension - 47" cable Linkable up to 8 units L, X, and T-shape accessories available |
| Enclosure Rating | IP44 |
| Input Voltage | 120-277VAC |
| Power Factor | 0.90 |
| Temperature Rating | -40˚F to 113˚F |
| Housing Color | White |

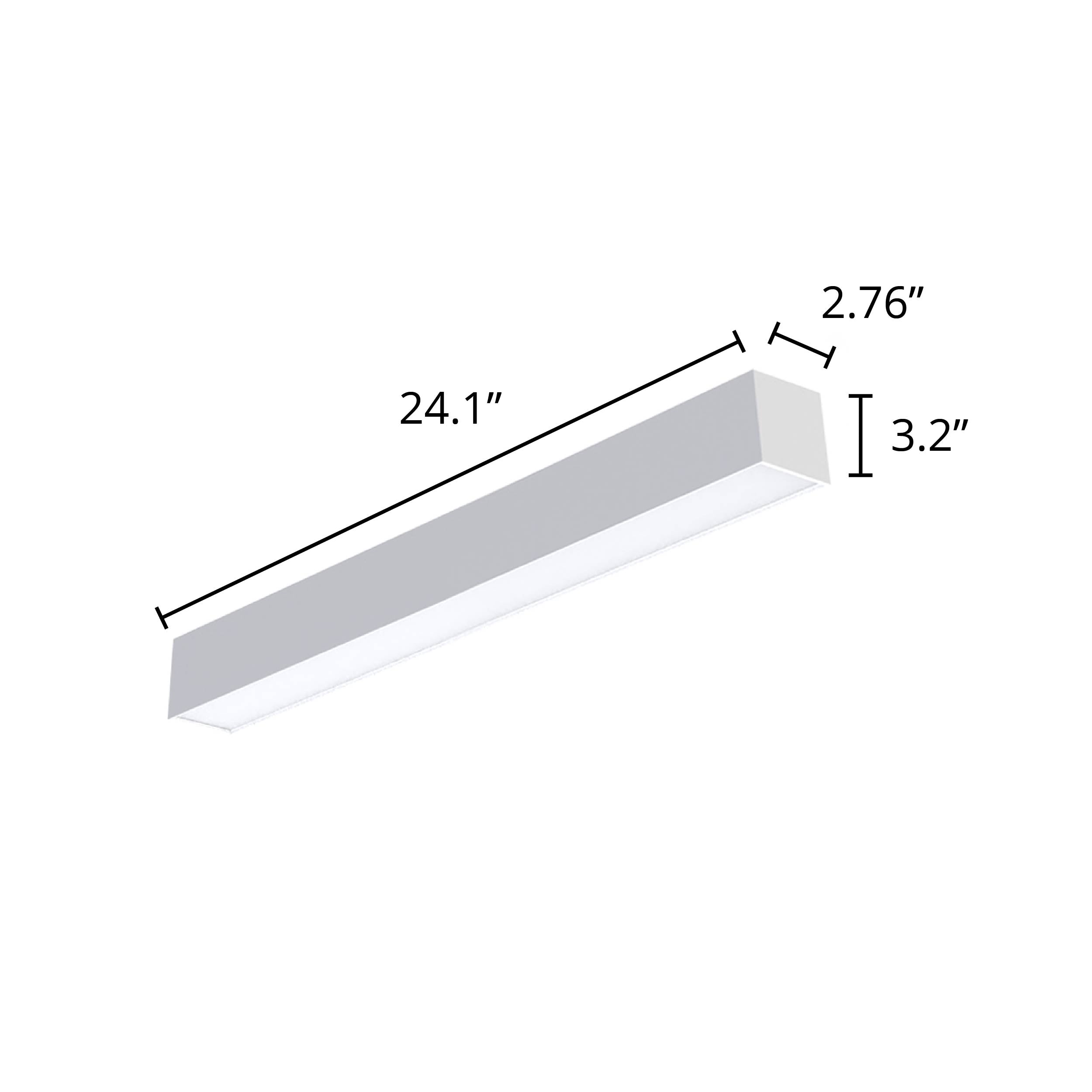

| Dimensions | 24.1" x 2.76" x 3.2" (612 x 70 x 82 mm) |
| Certification | DLC Premium |
| Warranty | 5 Years |
| Additional Specifications | Topside Power Tunable: 100%-75%-50%-OFF |
Data SheetDetails
Architectural Linear Up/Down Light for Modern Commercial Spaces
- Customizable wattage, color temperature, and uplight ratio for precise on-site tuning
- Sleek suspended design with continuous-run capability up to 8 linked fixtures
- High-efficiency, DLC Premium performance with long-life 0–10V dimming
These architectural direct/indirect fixtures deliver tailored lighting for offices, retail, schools, and contemporary open spaces. Each unit offers selectable wattage, tunable CCT (3500K–6500K), and adjustable uplight output (100/75/50% or off), giving you full control over visual comfort and atmosphere. Suspension mounting with 47" cables provides a clean, modern aesthetic, while optional I-, L-, X-, and T-shape connectors support unique, continuous lighting layouts. With up to 130 lm/W efficacy, 54,000-hour life, and a 5-year warranty, this fixture provides long-term reliability and premium performance.
Use cases
Ideal for offices, conference rooms, corridors, retail stores, schools, hospitality interiors, collaborative workspaces, and architectural design projects requiring clean lines and customizable illumination.
