SKU: LLTVWSC02-20WDBCS-BZ
Sale price$123.95 /pack
Regular price

A fully configurable cylinder wall sconce for building facades, pathways, garages, auditoriums, and balconies with independently selectable up/down beam angles to match almost any lighting application.

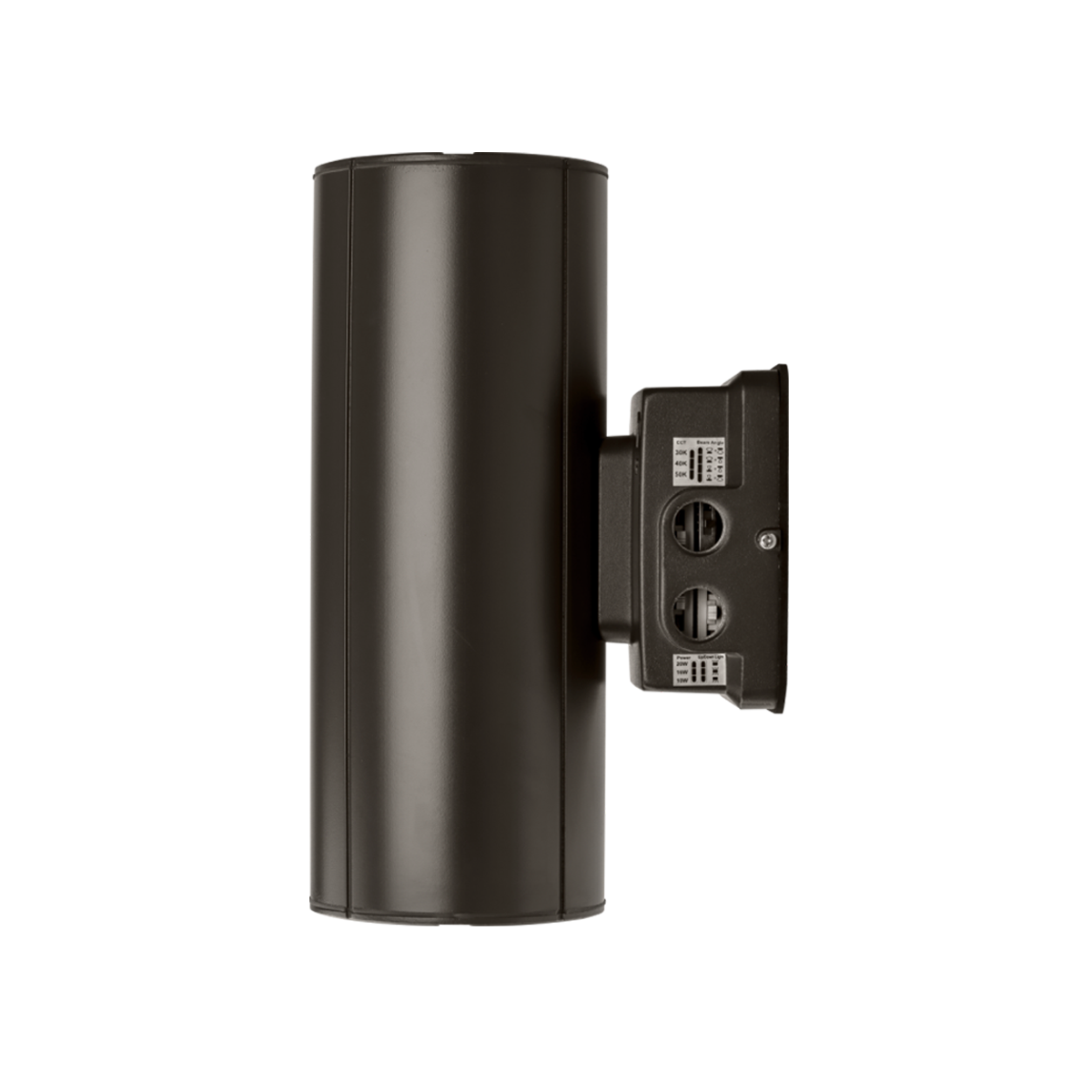

  • Full directional control with no rewiring — switch between up-only, down-only, or full up/down via DIP switch
  • Adapts to most sites and applications — selectable wattage, CCT, and up/down beam angles eliminate guesswork and allow fine-tuning on-site
  • Saves energy automatically — built-in dusk-to-dawn photocell turns the fixture on at dusk and off at dawn, no timer needed
Color
In Stock -
Free Shipping Over $300

A fully configurable cylinder wall sconce for building facades, pathways, garages, auditoriums, and balconies with independently selectable up/down beam angles to match almost any lighting application.

  • Full directional control with no rewiring — switch between up-only, down-only, or full up/down via DIP switch
  • Adapts to most sites and applications — selectable wattage, CCT, and up/down beam angles eliminate guesswork and allow fine-tuning on-site
  • Saves energy automatically — built-in dusk-to-dawn photocell turns the fixture on at dusk and off at dawn, no timer needed

Specs

Wattage(s) 10/16/20W Selectable
Replaces Wattage(s) 75W
Light Output 625 to 2,740 lm
Luminous Efficacy (lm/W) 125 to 137 lm/W
Average Lamp Life L70: >54,000 hours
Color Temperature(s) 3000K/4000K/5000K Selectable
CRI (Color Accuracy) 80
Dimming Yes
Dimming Range 0-10V
Beam Angle 25°/75° Selectable
Light Distribution Pattern Up/Down Selectable (Up Only, Down Only, Full Up/Down) Learn More
×

Light Distribution Options

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.

Type IV Beam

Provides forward directed light with minimal backlighting - great for perimeter installations.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.

Lens Cover Polycarbonate optical lens

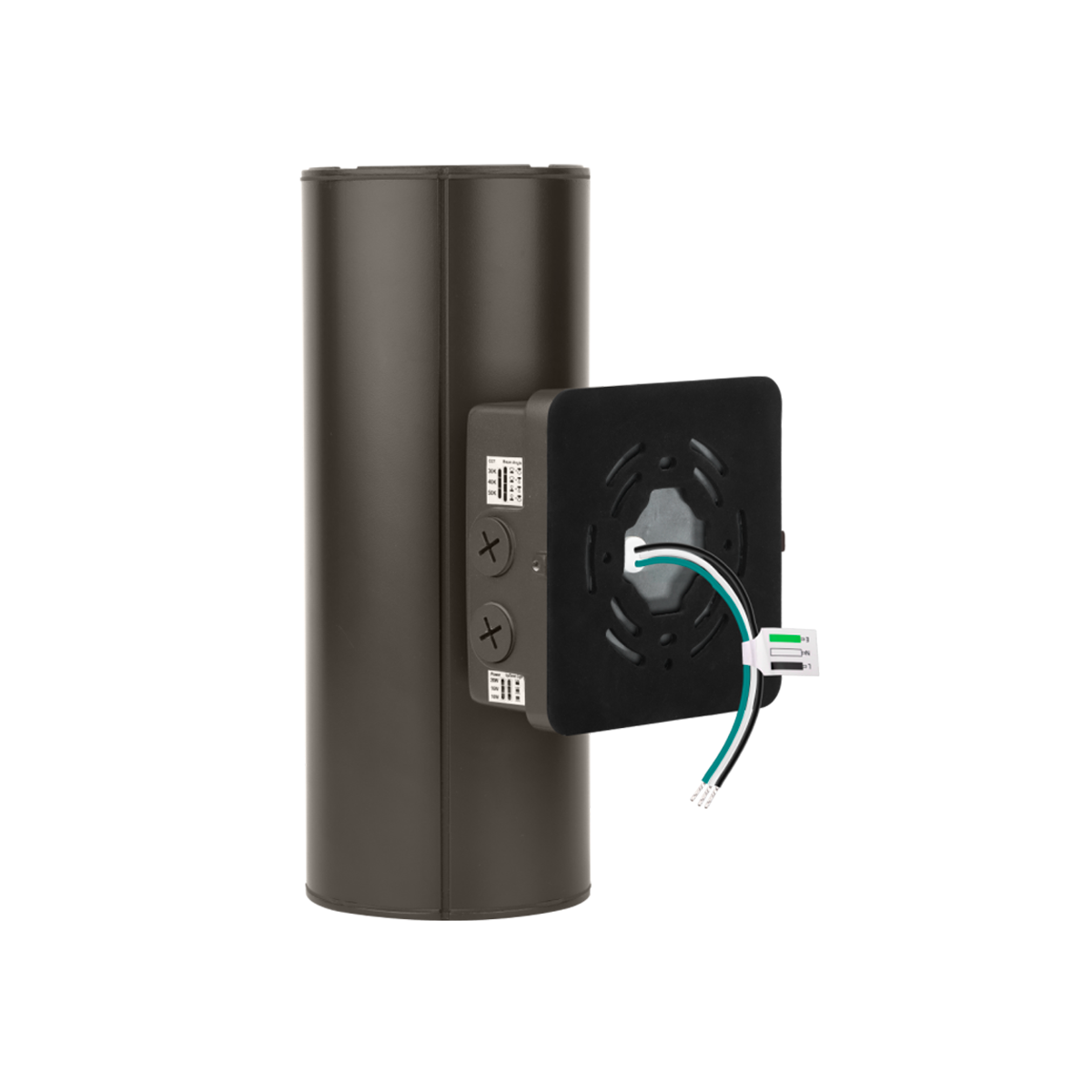

Installation Wall Mount
Enclosure Rating IP65, IK10

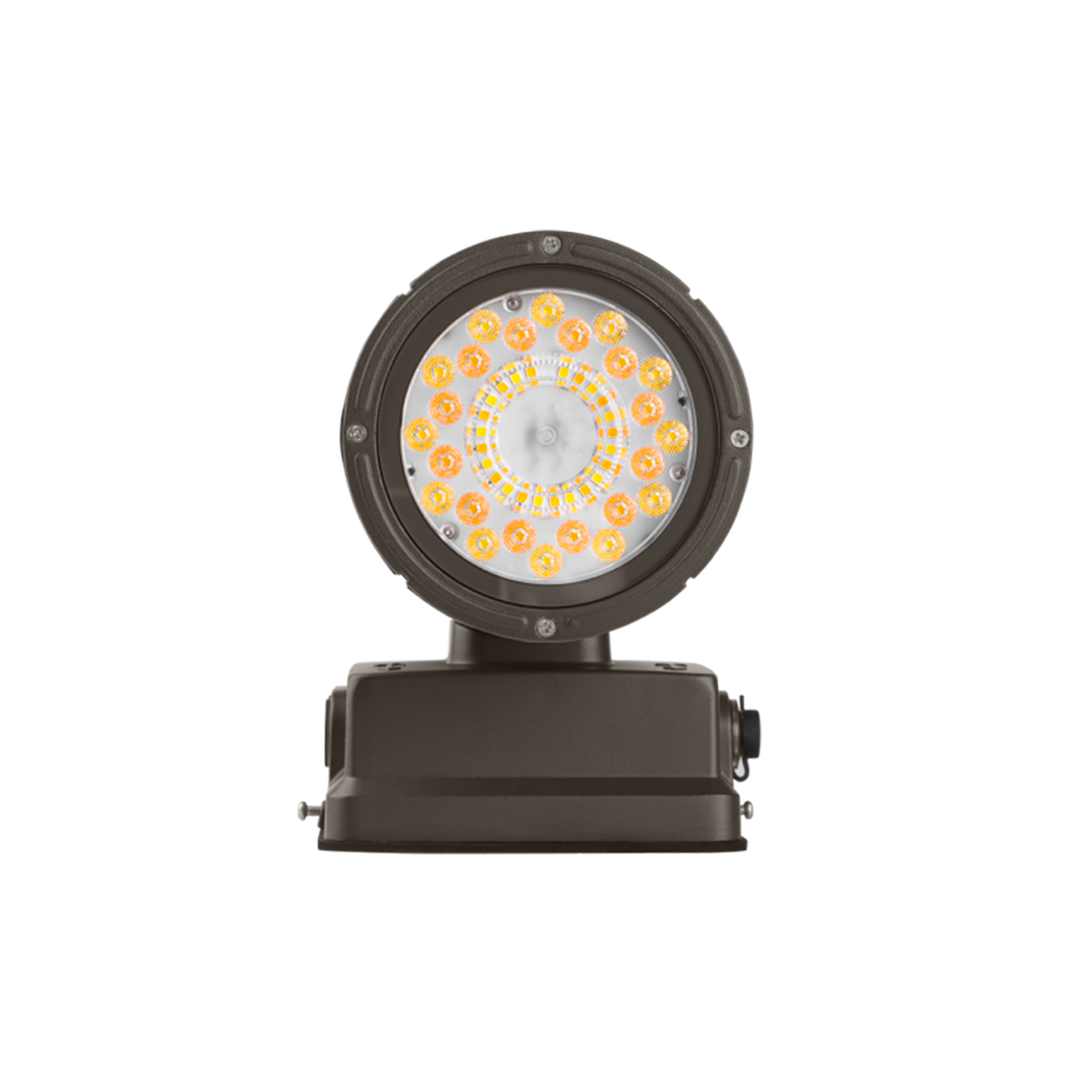

Light Type LED 2835
Input Voltage 120-277VAC, 50-60Hz
Driver Type Constant Current (CC)
Power Factor 0.9
Temperature Rating -40°C to +50°C (-40°F to +122°F)
Housing Material Aluminum housing; powder coat finish
Housing Color Dark Bronze, Black, or White (Call for Custom Colors)

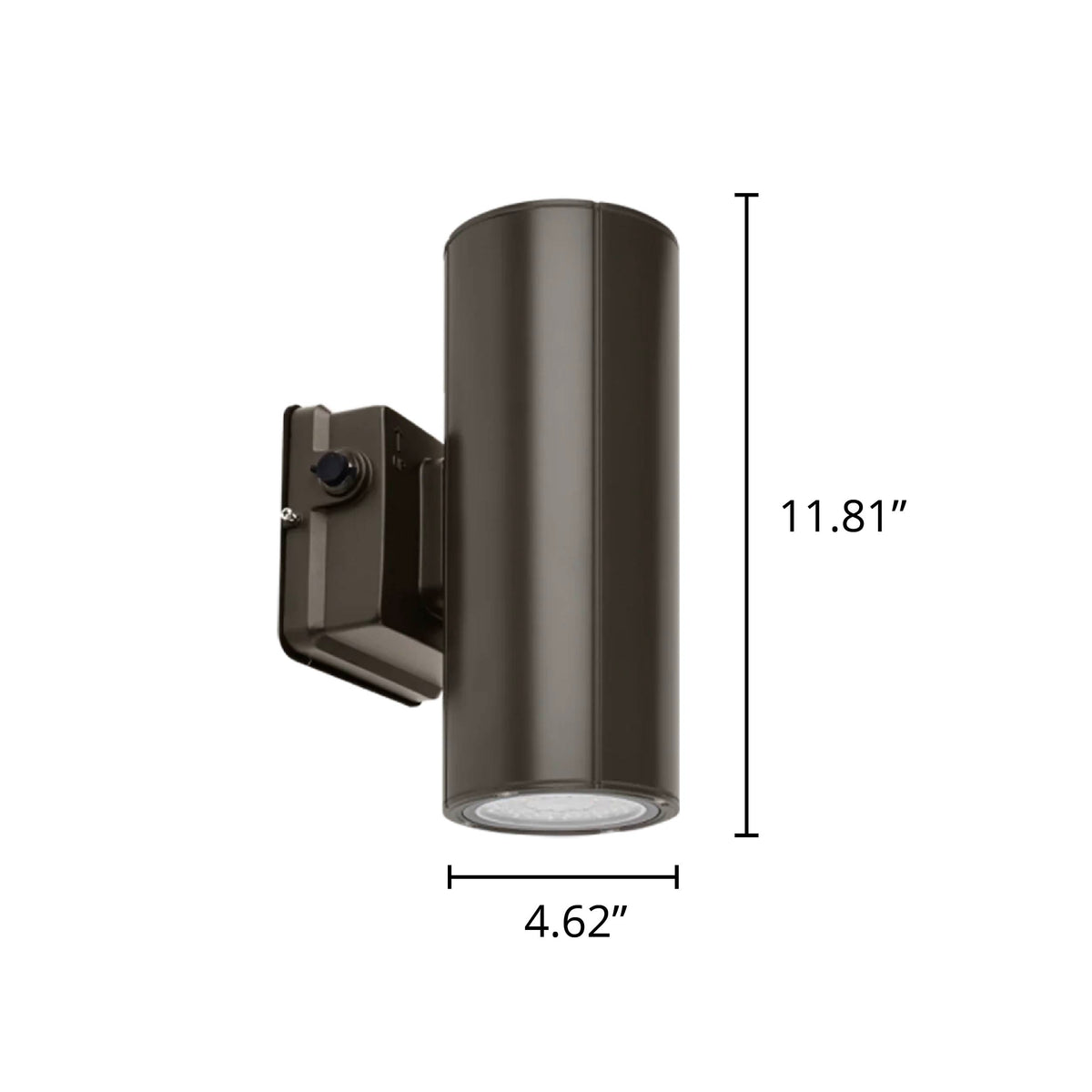

Dimensions ø4.62" dia.; 11.81" H x 7.09" W x 5.63" D
Weight 4.2lbs
Shipping Weight 4.5 lbs
Package Dimensions 13.4" x 6.7" x 9"
Certification UL Listed
Warranty 5 Years

Details

The LED Living cylinder wall sconce replaces the need for separate accent, wall-wash, and pathway fixtures — independently controllable up/down apertures, field-selectable beam angles, and on-site CCT and wattage adjustment make it one of the most adaptable wall sconces available at this price point.



Why Choose This Fixture

Most wall sconces are fixed — one beam angle, one distribution pattern, one color temperature. This fixture lets you set the up and down apertures independently, dial in a narrow spot or wide flood per direction, and adjust wattage and CCT on-site. Combined with a built-in photocell and outdoor-rated housing, it covers accent, wall wash, pathway, and direct/indirect architectural applications — all from one SKU, with no rewiring and no reordering if site conditions change.

  • Independent Up/Down Distribution Control: Set each aperture independently to up-only, down-only, or full up/down — adapts the same fixture to wall wash, accent, or direct/indirect applications without additional hardware or rewiring.
  • Selectable Beam Angle Per Direction: Choose 25° (narrow spot) or 75° (wide flood) independently for the up and down apertures — dial in the right spread for the surface or area being lit without swapping fixtures.
  • Field-Selectable Wattage and Color Temperature: Adjust wattage (10/16/20W) and CCT (3000/4000/5000K) on-site via DIP switch — no rewiring, no returns, no reorders if site conditions change.
  • Built-In Dusk-to-Dawn Photocell: Integrated photocell automates outdoor operation — turns on at dusk and off at dawn without a separate sensor, timer, or controller.
  • Indoor/Outdoor Rated: IP65 weatherproofing and IK10 impact resistance handle demanding outdoor environments — suited for facades, covered walkways, garages, and exposed installations.
  • 5-Year Warranty: Backed by a 5-year manufacturer warranty — sold through ELEDLights with full warranty support.



Ideal Applications

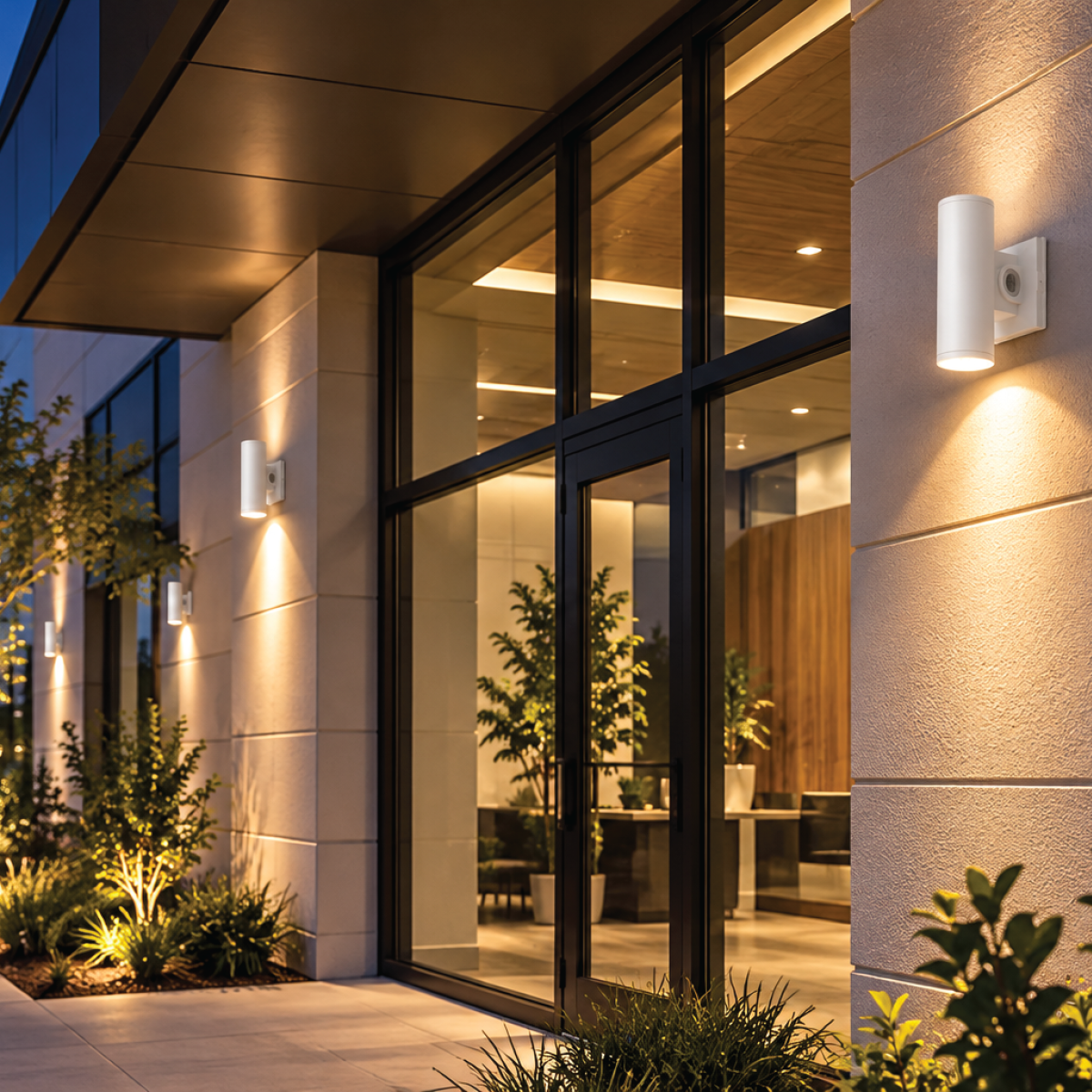

  1. Building Facades & Exteriors: Full up/down distribution with 75° wide flood, delivering even wall wash coverage suited for commercial buildings, hotels, and institutional exteriors.
  2. Auditoriums & Theaters: Up-only with 25° narrow spot, creating dramatic indirect uplighting along walls without visible glare from seating areas.
  3. Pathways & Garages: Down-only with 75° wide flood, illuminating walking surfaces and entry areas efficiently without wasted upward light.
  4. Balconies & Building Entries: Full up/down with mixed beam angles creates a decorative direct/indirect effect. Warm ambient uplighting combined with functional downlighting gives entries and balconies a welcoming appearance.
  5. Campus & Institutional Grounds: Down-only or full up/down with selectable CCT adapts to pathway, signage, or accent roles across a single campus. One SKU covers multiple applications without separate fixture orders.



How It Compares

This Fixture Standard Wall Sconce
Up/Down Distribution Control Up-only, down-only, or full up/down Varies — fixed or selectable
Beam Angle Selectability 25° or 75° per direction — adjustable by DIP switch Fixed, or requires purchase & installation of new optics
CCT Selectability 3000/4000/5000K on-site Varies — fixed or selectable
Efficacy 125-137 lm/W 95-100 lm/W
Built-In Photocell Dusk-to-dawn, no extra hardware Separate sensor required
Indoor/Outdoor Rated IP65 protection against dust & water + IK10 impact protection for high-traffic areas Varies — often IP65 only
Risk of Reorder if Site Changes None — readjust on-site with easy-access DIP switches New order & swap may be needed



ELEDLights Stands Behind It

  • 5-year warranty. One of the longest in the category.
  • DLC 5.1 listed. Qualifies for most utility rebate programs, allowing us to keep your project costs as low as possible.
  • US-based support Monday through Friday, 8am to 8pm EST. Call, text, or email a real person.
