Extra Bright RAB IC Rated 1x4 LED Frame Light - Selectable Color & Wattage
Lumens:
Watts:
Color Temp:
5 Year Warranty
Edge-Lit Frame Lights Bring Clean Aesthetics to Your Suspended Ceilings
- Seamlessly fits your space thanks to field-adjustable CCTs and wattages
- Installs easily into existing T-grid ceilings
- Includes dimming control wiring for 0-10V dimming systems for dimming down to 10%
- Safe for use in damp locations, including restrooms, locker rooms & utility rooms
- Listed by Design Lights Consortium (DLC) as an ultra-efficient premium product, qualifying it for the highest tier of energy efficiency rebates

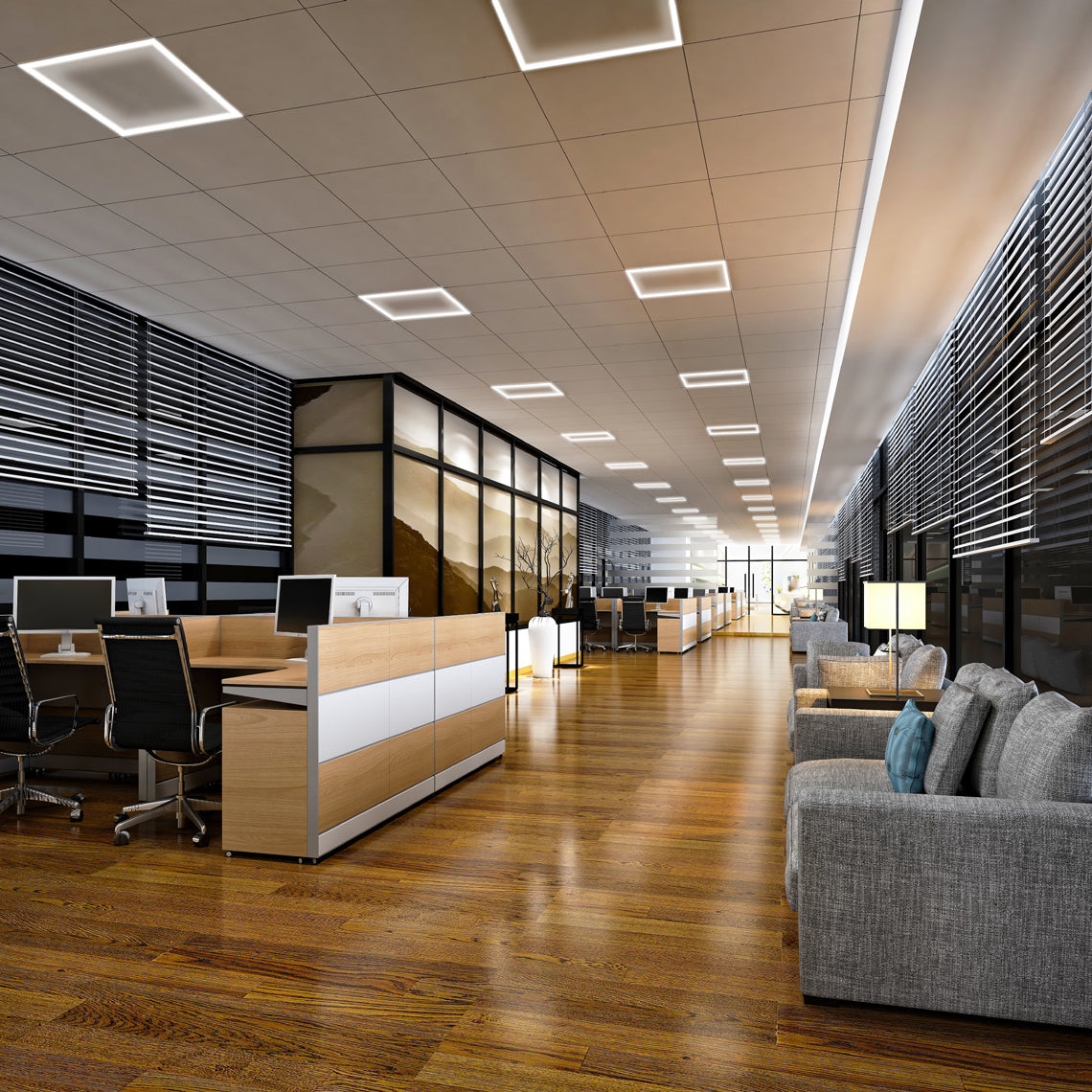

RAB FRAME lights provide beautiful lighting for modern office spaces, retail applications, and other contemporary commercial spaces.
Saves $/year in energy costs*
Buying 6 or more boxes?
Get a better price & free shipping:
Edge-Lit Frame Lights Bring Clean Aesthetics to Your Suspended Ceilings
- Seamlessly fits your space thanks to field-adjustable CCTs and wattages
- Installs easily into existing T-grid ceilings
- Includes dimming control wiring for 0-10V dimming systems for dimming down to 10%
- Safe for use in damp locations, including restrooms, locker rooms & utility rooms
- Listed by Design Lights Consortium (DLC) as an ultra-efficient premium product, qualifying it for the highest tier of energy efficiency rebates
RAB FRAME lights provide beautiful lighting for modern office spaces, retail applications, and other contemporary commercial spaces.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 6 or more boxes?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 6 or more boxes?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 20/25/30/35/40W |
| Light Output | 2,649-4,994 lumens |
| Luminous Efficacy (lm/W) | 126.9-131 lm/W |
| Average Lamp Life | L70: 100,000 hours |
| Color Temperature(s) | 3000K/3500K/4000K/5000K/6500K |
| CRI (Color Accuracy) | 82-85 |
| Dimming | 0-10V |
| Installation | Recessed into existing T-grid brackets |
| Input Voltage | 120-277V, 50/60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor | @40W, 4000K: 99.78% at 120V, 99.80% at 277V |
| THD (Total Harmonic Distortion) | @40W, 4000K: 6.53% at 120V, 12.61% at 277V |
| Temperature Rating | -20°C (-4°F) to 40°C (104°F) |
| Housing Material | Aluminum with polycarbonate lens |
| Housing Color | White |

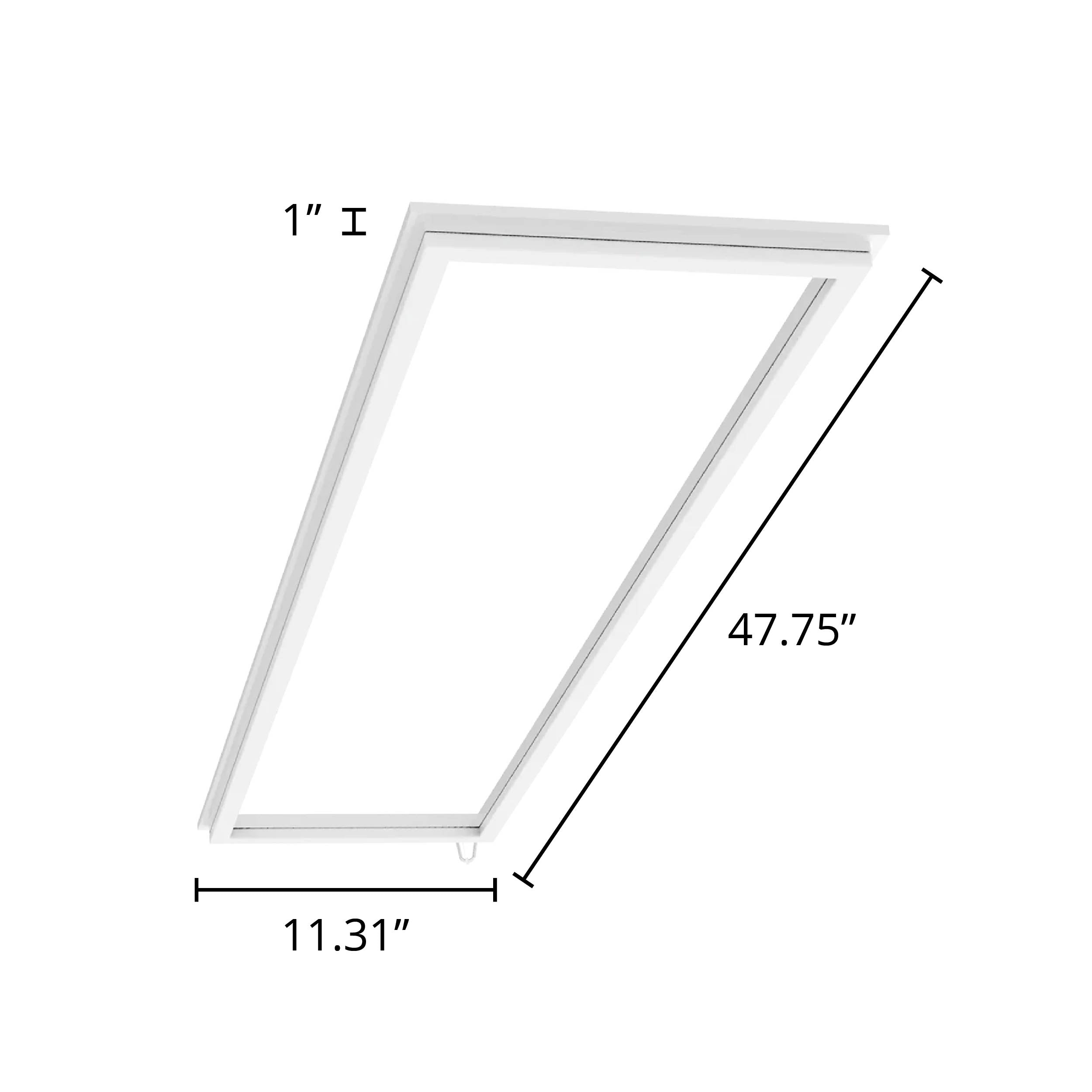

| Dimensions | 11.31" x 47.75" x 1" |
| Weight | 2.41 lbs |
| Certification | DLC Premium, UL Damp Location, IC Rated |
| DLC ID(s) | S-Z22MB1 |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
