The MaxLite FlatMax Gen5 1x4 with Factory EM is smart-ready with emergency backup for corridors.
- Factory-installed 8W battery backup delivers 90 minutes of emergency light right out of the box.
- Controls-ready with plug-and-play sensors for daylight harvesting and vacancy dimming.
- DLC Premium certified at 140 lm/W with a 100,000-hour lifespan and 10-year warranty.
Need More? Text/call (858) 650-9400
The MaxLite FlatMax Gen5 1x4 with Factory EM is smart-ready with emergency backup for corridors.
- Factory-installed 8W battery backup delivers 90 minutes of emergency light right out of the box.
- Controls-ready with plug-and-play sensors for daylight harvesting and vacancy dimming.
- DLC Premium certified at 140 lm/W with a 100,000-hour lifespan and 10-year warranty.
Choose options
Details
Long-Lifespan Drop Ceiling Lights with a Special Warranty
Control-Ready Lighting: Easily plug in smart sensors to add dimming, daylight harvesting, and more.

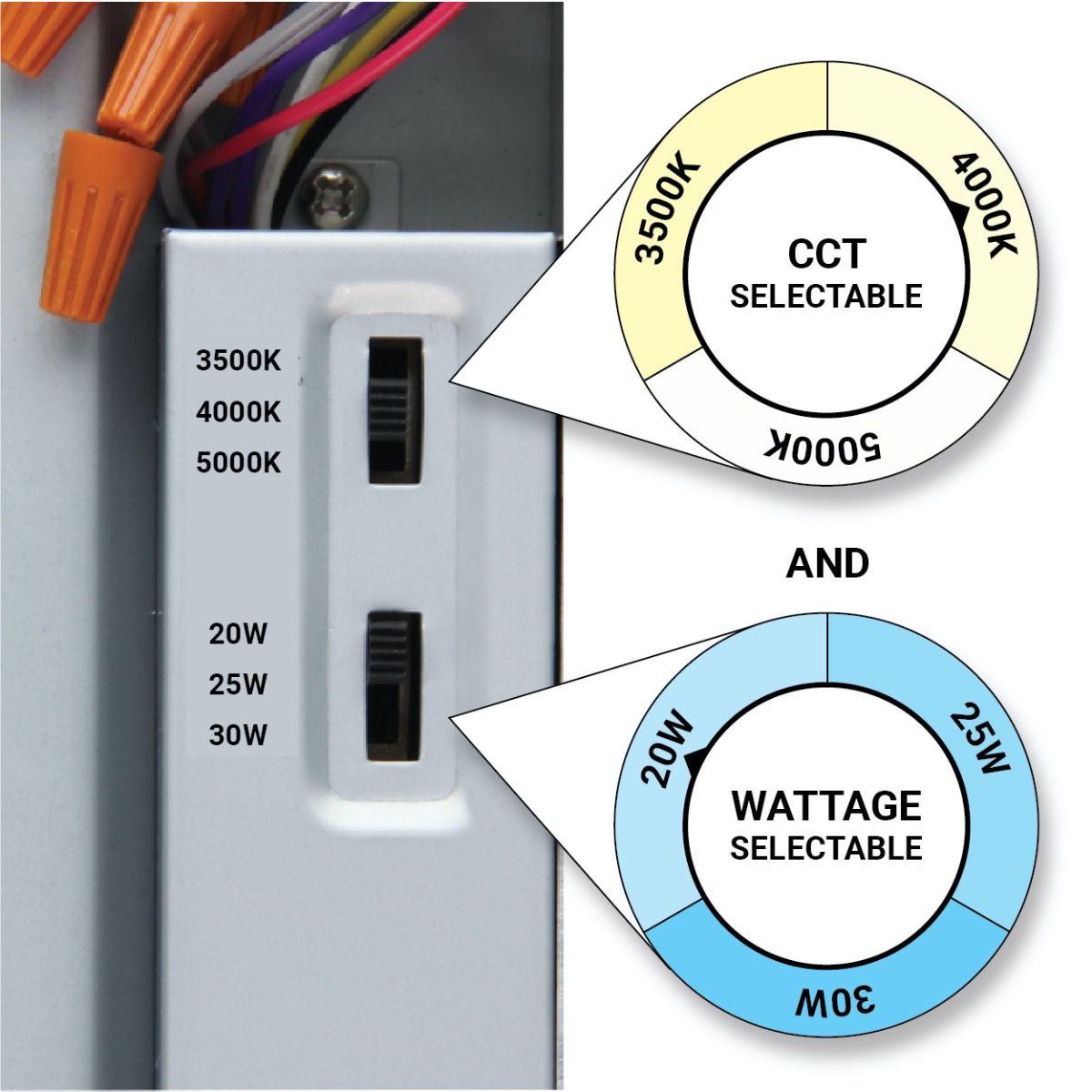

Great for Bulk-Buying: Buy one SKU and select the right wattage & CCT for each space during install.
Lasts 10+ Years: Has an average lifespan of 100,000 hours and is backed by a special 10-year warranty.
Battery Backup Installed: Factory-Installed 8W backup for 90 minutes of 1,300-lumen output during power outages.
Trust in these panels to illuminate your office, healthcare facility, classroom, or other indoor space.
Specs
| Wattage(s) | 15W/20W/25W |
| Light Output | 2,100/2,800/3,500 lumens |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Battery | 8W Emergency Driver, 90-min discharge |
| Average Lamp Life | L70: ≥100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | ≥80 |
| Dimming | 0-10V |
| Beam Angle | 120° |
| Lens Cover | Frosted |
| Working Environment | Indoor |
| Light Type | Wired Fixture |
| Input Voltage | 120-277VAC 50/60Hz |
| Power Factor | ≥ 0.90 |
| Temperature Rating | 41°F - 104°F |
| Humidity | 10%-85% RH non-condensing |
| Housing Material | Steel with polystyrene lens |
| Housing Color | White Frame |

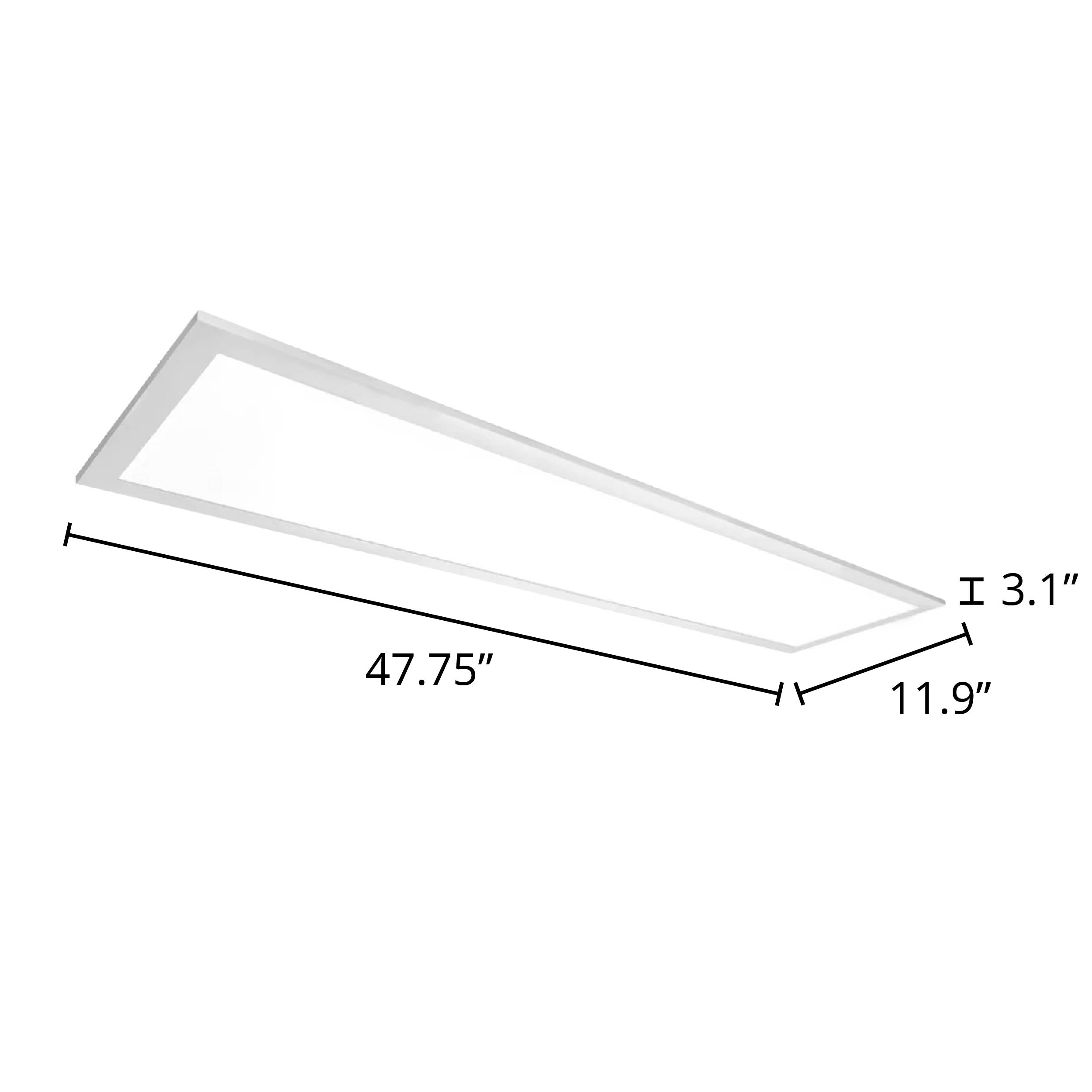

| Dimensions | 47.75" x 11.90" x 3.1" |
| Certification | DLC Premium, ETL |
| DLC ID(s) | S-1BKC7F |
| Warranty | 10 Years |
