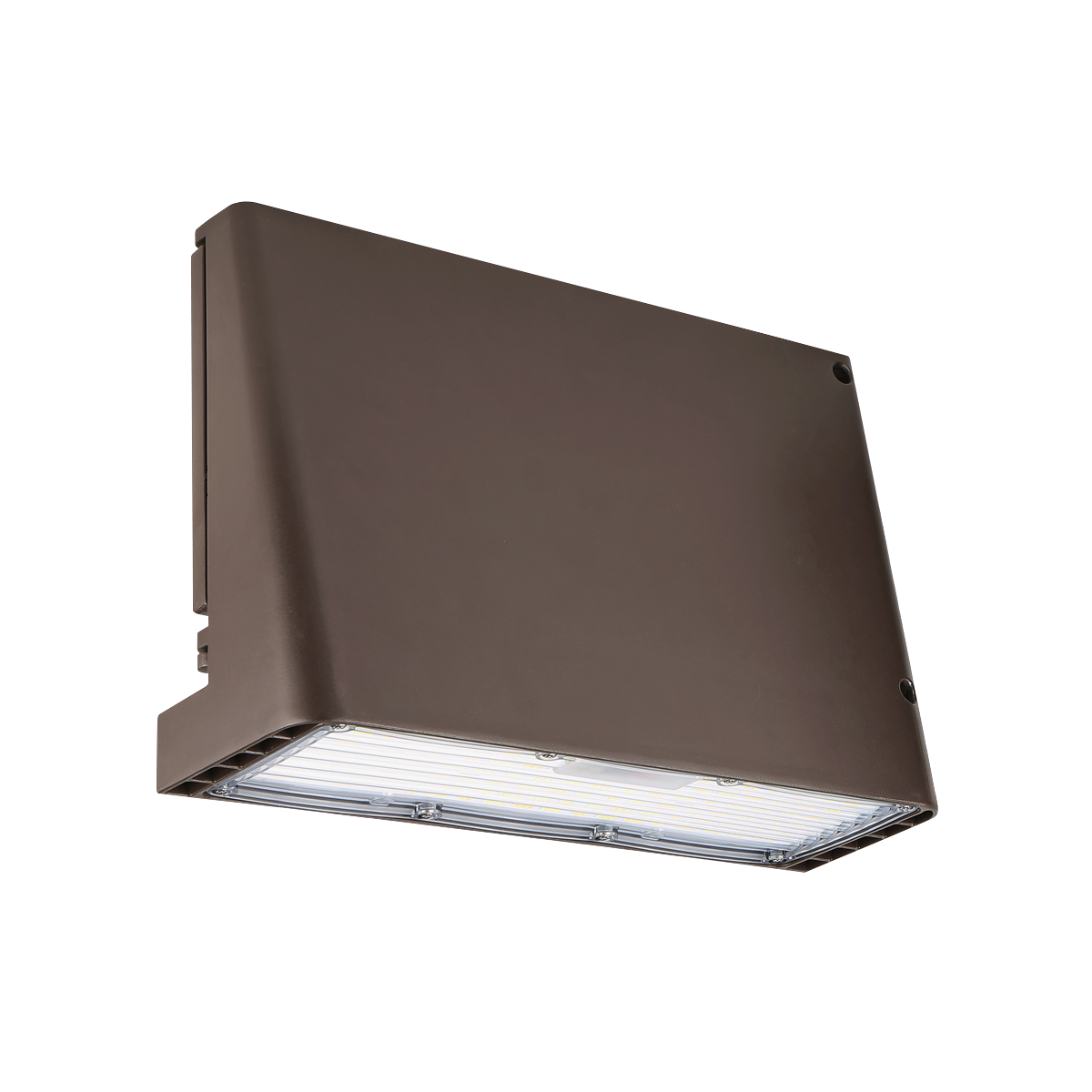

135W Full Cutoff LED Wall Pack
135W Full Cutoff LED Wall Pack
135W Full Cutoff LED Wall Pack
135W Full Cutoff LED Wall Pack
Ideal for tall mounting heights of 18–25 ft along building perimeters, entries, and stair towers, this 135W full-cutoff LED wall pack delivers 20,000 lumens of crisp 5000K light with zero uplight and tight spill control.
- 20,000 lumen output at 148 lm/W
- Full cutoff design for controlled uplight and spill
- Durable, water-sealed housing
Need More? Text/call (858) 650-9400
Ideal for tall mounting heights of 18–25 ft along building perimeters, entries, and stair towers, this 135W full-cutoff LED wall pack delivers 20,000 lumens of crisp 5000K light with zero uplight and tight spill control.
- 20,000 lumen output at 148 lm/W
- Full cutoff design for controlled uplight and spill
- Durable, water-sealed housing
Choose options
Details

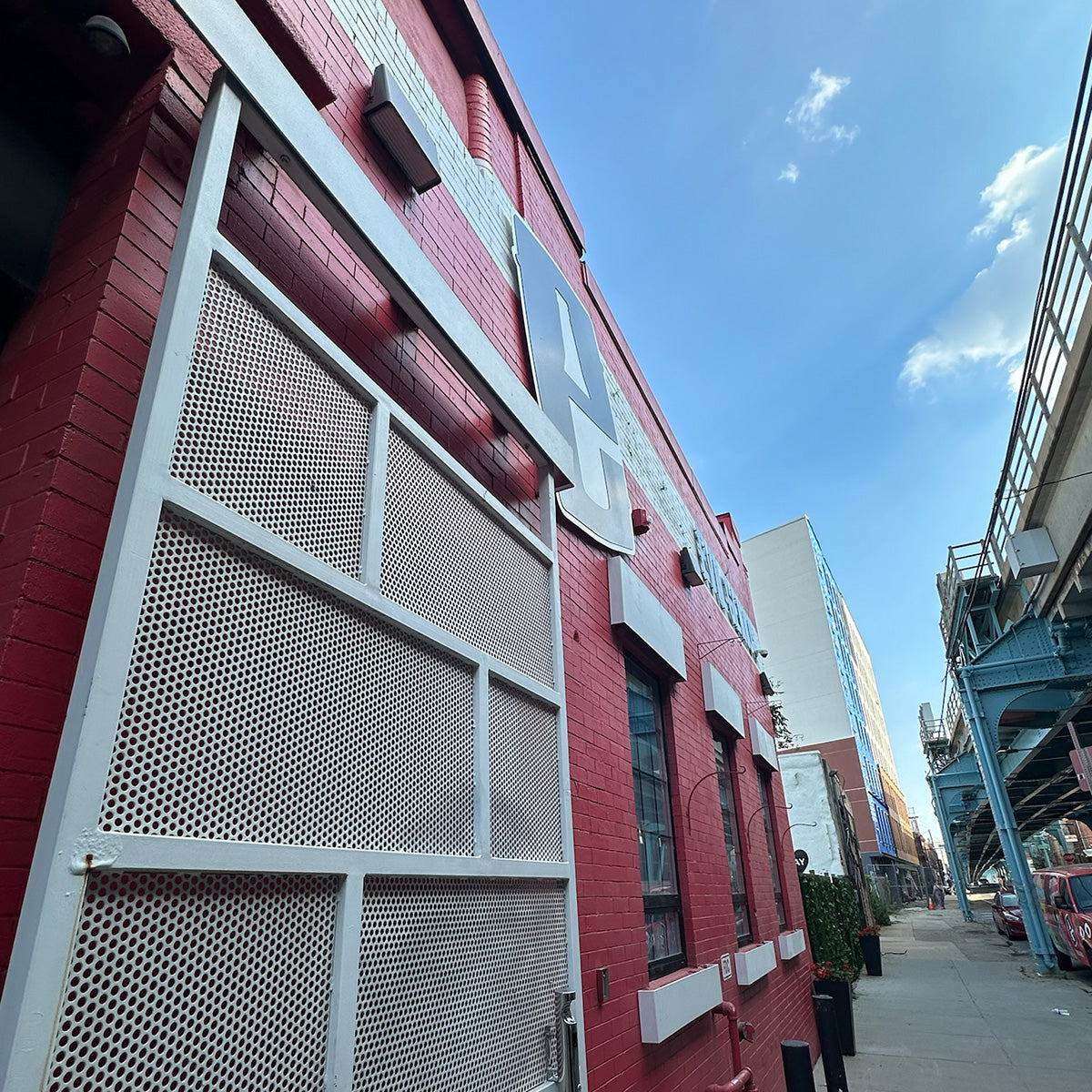

Boost Safety & Security Along Your Building's Perimeter
High-Quality, Low-Glare Light Output: Prismatic, anti-UV lenses ensure easy-on-the-eyes light.
Full Cutoff Design: Ensures zero up-light is distributed with a focused, downward light beam.*
Die-Cast Aluminum Housing: Resists corrosion and is fully sealed against bugs & debris.
5+ Years of Problem-Free Illumination: Operates for an average of 50,000 operating hours.
Safe for Use in Very Cold Environments: Operates in temps from -40°F to 104°F (-40°C to 40°C).
*Compliant with Municipal Dark Sky Requirements
Suitable for Applications Requiring 3G Testing Prescribed by ANSI C136.31.
Specs
| Wattage(s) | 135W |
| Replaces Wattage(s) | 400W |
| Light Output | 20,000 lumens |
| Luminous Efficacy (lm/W) | 148 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 1-10V |
| Base Type | Fixture |
| Working Environment | Outdoor |
| Input Voltage | 120-277 VAC |
| Temperature Rating | -40°F – 104°F |
| Housing Material | Die cast aluminum |
| Housing Color | Bronze |
| Dimensions | 13.1"W x 3.8" D x 9.6" H |
| Certification | UL Wet Location |
| Warranty | 5 Years |
Data SheetCompare Key Features
Compare
135W Full Cutoff LED Wall Pack
|
80W Full Cutoff Angle Adjustable LED Wall Pack
|
|
|---|---|---|
| Wattage | 135W | 80W |
| Equivalent to | 400W | 250W |
| Light Output | 20,000 lumens | 10,500 lumens |
| Color Temperature (CCT) | 5000K | 5000K |
| Warranty | 5 Years | 5 Years |
|
