A 45–130W selectable LED post top light for sidewalks, drive lanes, pathways, and parking areas at mounting heights from 8 to 20 ft. Four field-selectable wattages and three CCTs cover virtually any application, with up to 17,200 lumens at 149 lm/W and DLC Premium listing for utility rebates.
- Selectable wattage (45/70/87/130W) and CCT (3000/4000/5000K) configured on-site, allowing proper pairing with application or pole height — even with pre-existing poles
- Delivers up to 17,200 lumens at 149 lm/W — replaces 400W HID fixtures at roughly a third of the operating cost
- DLC Premium listed, UL/cUL wet location rated, and 0-10V dimmable — rebate-ready out of the box
A 45–130W selectable LED post top light for sidewalks, drive lanes, pathways, and parking areas at mounting heights from 8 to 20 ft. Four field-selectable wattages and three CCTs cover virtually any application, with up to 17,200 lumens at 149 lm/W and DLC Premium listing for utility rebates.
- Selectable wattage (45/70/87/130W) and CCT (3000/4000/5000K) configured on-site, allowing proper pairing with application or pole height — even with pre-existing poles
- Delivers up to 17,200 lumens at 149 lm/W — replaces 400W HID fixtures at roughly a third of the operating cost
- DLC Premium listed, UL/cUL wet location rated, and 0-10V dimmable — rebate-ready out of the box
Choose options
Specs
| Wattage(s) | 130W (selectable: 45/70/87/130W) |
| Replaces Wattage(s) | 400 |
| Light Output | 6,500–17,200 lm |
| Luminous Efficacy (lm/W) | 123–149 lm/W |
| Average Lamp Life | 100,000 hours (L80) |
| Color Temperature(s) | 3000K / 4000K / 5000K (selectable) |
| CRI (Color Accuracy) | 70 |
| Dimming | Yes |
| Dimming Range | 0-10V |
| Lens Cover | UV-stabilized high-performance optical grade polymer lens |
| Installation | Pole mount / post top |
| Recommended Installation Height | 8' to 20' mounting height |
| Working Environment | Wet locations; outdoor |
| Light Type | LED |
| Input Voltage | 120–277VAC |
| Power Factor | ≥90% |
| THD (Total Harmonic Distortion) | ≤20% |
| Input Power Rating | 45/70/87/130W |
| Temperature Rating | -40°F to 113°F |
| Housing Material | Die-cast aluminum, completely sealed against moisture and environmental contaminants |
| Housing Color | Black |

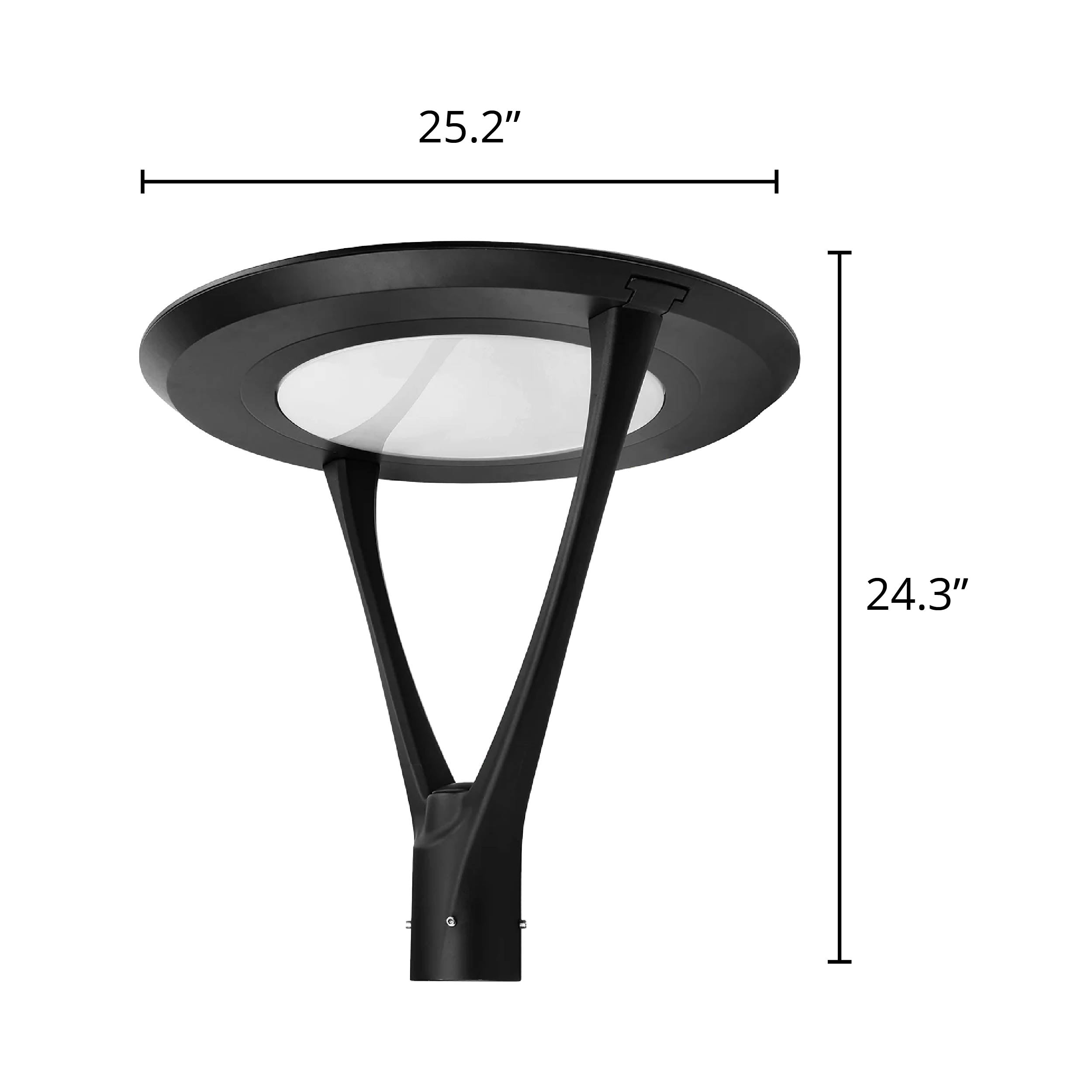

| Dimensions | 25.2" diameter x 24.3" tall |
| Shipping Weight | 10 lbs |
| Certification | UL Listed, cUL Listed – Wet Location, DLC Premium (v5.1) |
| Warranty | 5 years |
| Additional Specifications | Available finishes: Dark Bronze (DB), Black (BL), White (WH); Selectable wattage: 45/70/87/130W (factory SKU at 130W) |
Details
| Spec | Value | Why It Matters |
|---|---|---|
| Output & Wattage | 6,500–17,200 lumens at 45/70/87/130W | Four wattage settings cover a range of different applications and adapt to pre-existing pole height |
| CCT Options | 3000/4000/5000K | Warm, neutral, or cool white selectable on-site to match the application |
| Lamp Life | L80: 100,000 hours | Retains 80% output to 100,000 hours — significantly longer service life than the HID fixtures this replaces |
| Dimming | 0-10V | Integrates with standard dimming controls for energy management and code compliance |
| Mounting Height | 8–20 ft | Covers the full range of standard post top mounting heights without separate fixture SKUs |
| Certification | DLC Premium v5.1, UL/cUL Wet Location | Qualifies for the highest tier of utility rebates; rated for permanent outdoor installation |
One Fixture, Any Post Height, Any Zone
This post top light replaces aging 400W HID fixtures on sidewalks, drive lanes, pathways, campus walkways, and managed property exteriors — delivering equivalent or better light output at roughly a third of the operating cost, with four selectable wattages that adapt to any pole height or site requirement without stocking multiple fixtures.
- One SKU, Four Power Levels Across a Wide Range: 45W for lower mounting heights and lighter-traffic pathways, 70W for standard residential and campus walks, 87W for busier drive lanes and commercial entries, 130W for full-output replacement of 400W HID on 16–20-ft poles — one fixture covers all four without separate orders.
- Field-Selectable CCT: Choose 3000K, 4000K, or 5000K on-site to match the application, surrounding lighting, or utility rebate specifications — no returns or reorders if site conditions or project requirements change.
- 149 lm/W at Maximum Output: Strong efficacy for a post top at this price point — delivers 17,200 lumens at 130W, matching the output of a 400W metal halide or HPS fixture at roughly one-third the wattage.
- L80: 100,000-Hour Lamp Life: Retains 80% of original output to 100,000 hours — two to three times the effective life of the HID fixtures this replaces, with no lamp replacements required over that span.
- 0-10V Dimmable: Integrates with standard 0-10V dimming controls for occupancy-based energy management, code compliance dimming requirements, and utility incentive programs that require dimming capability.
- Die-Cast Aluminum Housing, Sealed Against Moisture: Fully sealed die-cast aluminum construction with UV-stabilized optical-grade polymer lens — rated for wet locations and designed for long-term outdoor exposure without ingress or UV degradation.
- -40°F Cold Start Rated: Operates reliably in extreme cold without warm-up time — suitable for northern climates and year-round outdoor installation where HID fixtures were previously used.
- DLC Premium v5.1 Listed: Qualifies for the highest tier of utility rebates to reduce project costs.
- 5-Year Warranty: Full coverage on this fixture — purchased through ELEDLights.
Ideal Applications
- Sidewalks & Pedestrian Pathways: 45W or 70W at 3000K or 4000K on poles from 8 to 14 ft — even post top distribution covers both sides of the walkway without harsh glare at pedestrian level.
- Drive Lanes & Commercial Entries: 87W or 130W at 4000K or 5000K on 14–20-ft poles — high output covers wide drive lane widths and provides clear visibility for vehicle and pedestrian traffic.
- Campus & Business Park Walkways: A single SKU handles multiple zones across a campus installation — 45W for garden paths, 70W for main walkways, 87W or 130W for entry drives, all from one ordered fixture.
- Managed Residential Properties: HOA communities, apartment complexes, and condominium developments with existing post top poles — direct retrofit onto existing 3" tenon mounts without pole replacement.
- Parking Area Perimeters: 87W or 130W on perimeter poles provides consistent illumination across parking field edges and pedestrian access routes adjacent to parking areas.
- Municipal Streetscape & Pathway Upgrades: DLC Premium listing qualifies for utility rebate programs that can significantly reduce net project cost on multi-fixture municipal installations — use the rebate finder at eledlights.com.
