Rugged, Reliable Outdoor Lighting

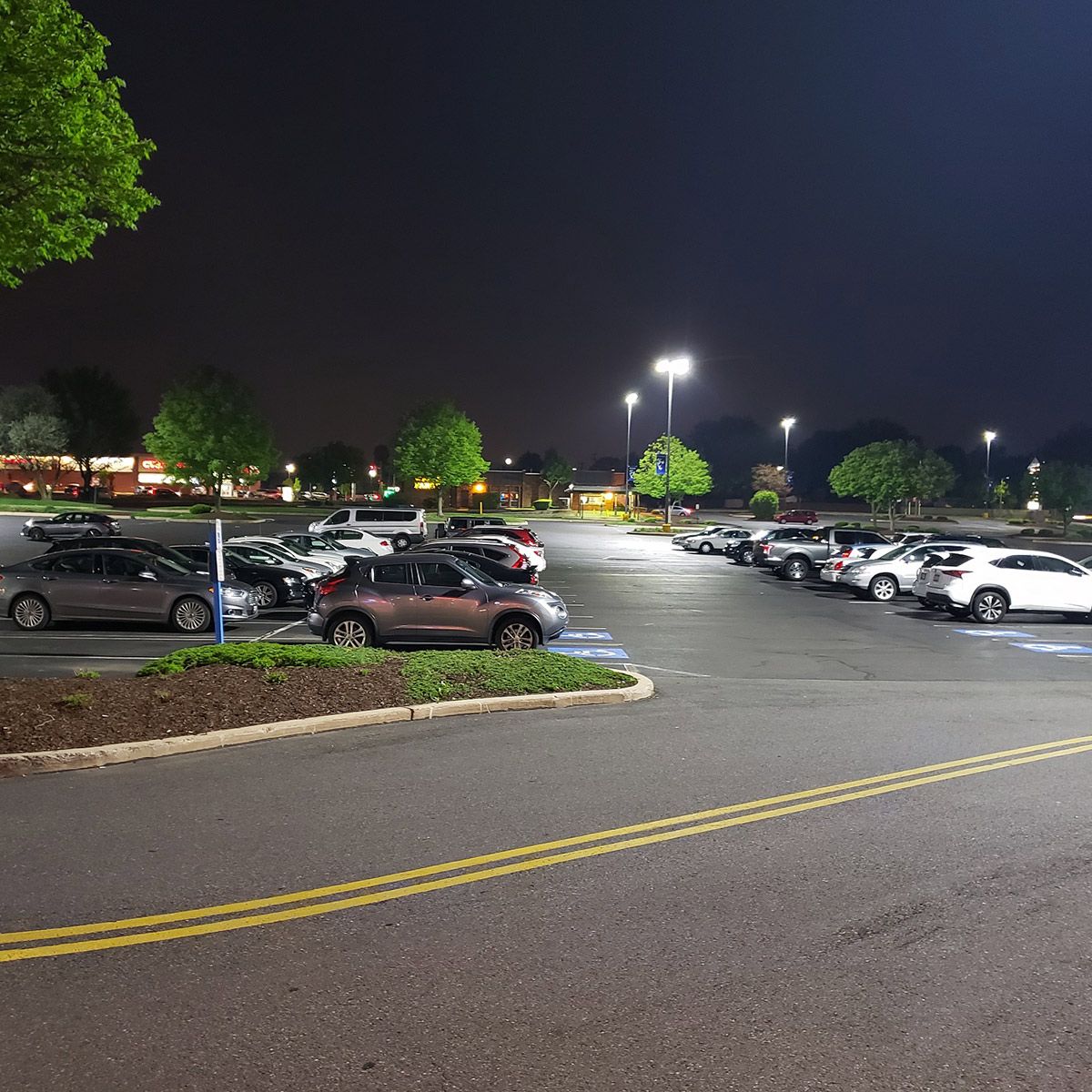

Perfect for smaller parking lots, walkways, and campuses, our 100W LED shoebox fixture gives you lighting equivalent to 250W metal halide lamps at a fraction of the operating and maintenance cost.

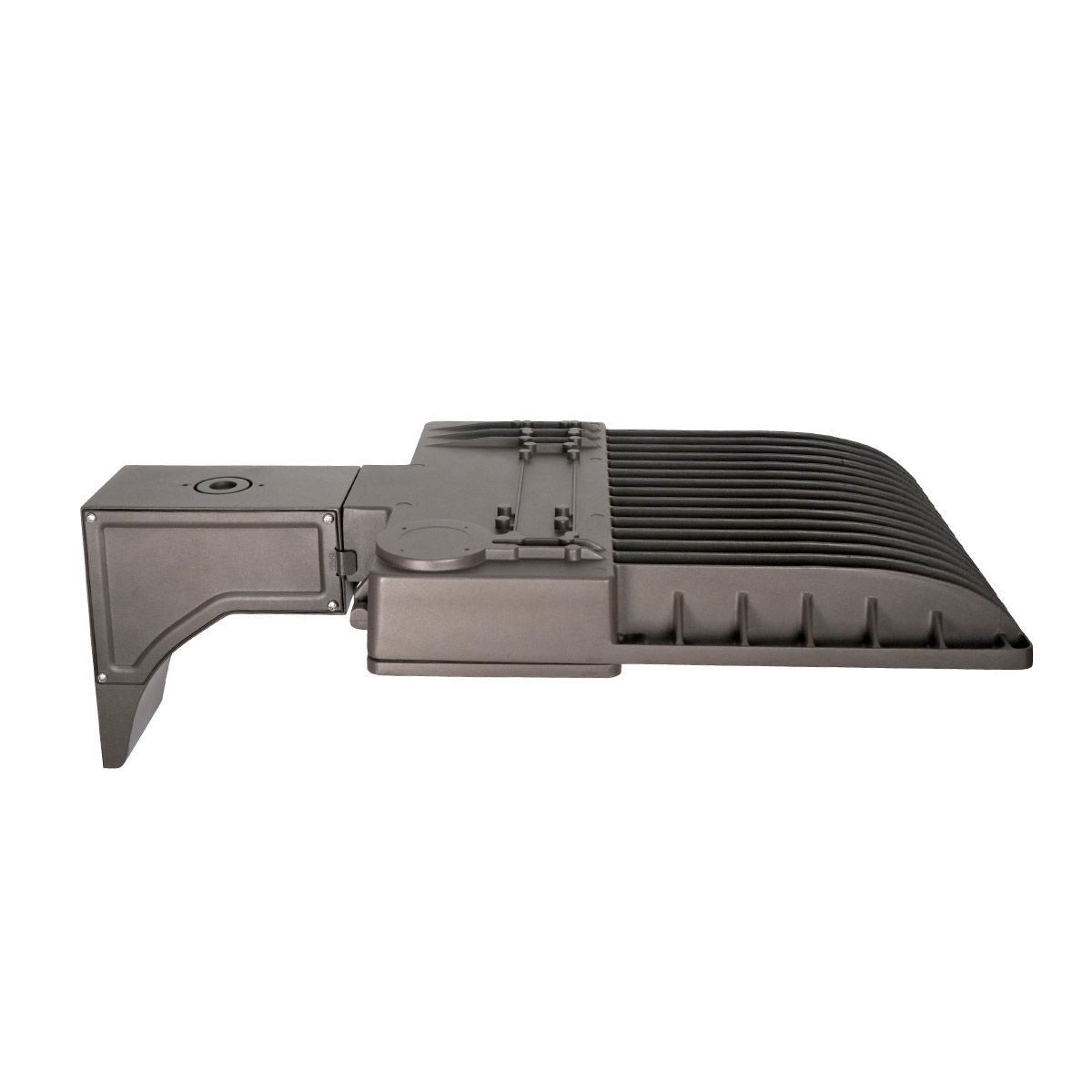

This luminaire features long-life LEDs and high-quality LED drivers enclosed in rugged, die-cast housing that is completely sealed to prevent ingress of moisture and environmental contaminants. Its low-profile design reduces wind load, and a 3G vibration rating allows it to even be installed on roadways, bridges, and overpasses.
This shoebox fixture's design allows for single-person install, plus the fixture is DLC Qualified for utility energy rebates and incentives. Both of these features reduce investment costs and speed up the payback period.
Lighting Distribution Options & Photometrics
While this shoebox comes standard with a Type III beam angle, we offer several optical configurations to accommodate your site lighting requirements—just get in touch if you need IV or V beam optics!
Type III Beam
Throws light forward and sideward. Suitable for either perimeter lighting or, installed back to back, more central pole locations.
Type IV Beam
Forward lighting with minimal back lighting for perimeter installation.
Type V Beam
A square umbrella lighting pattern for interior, rather than perimeter, pole locations

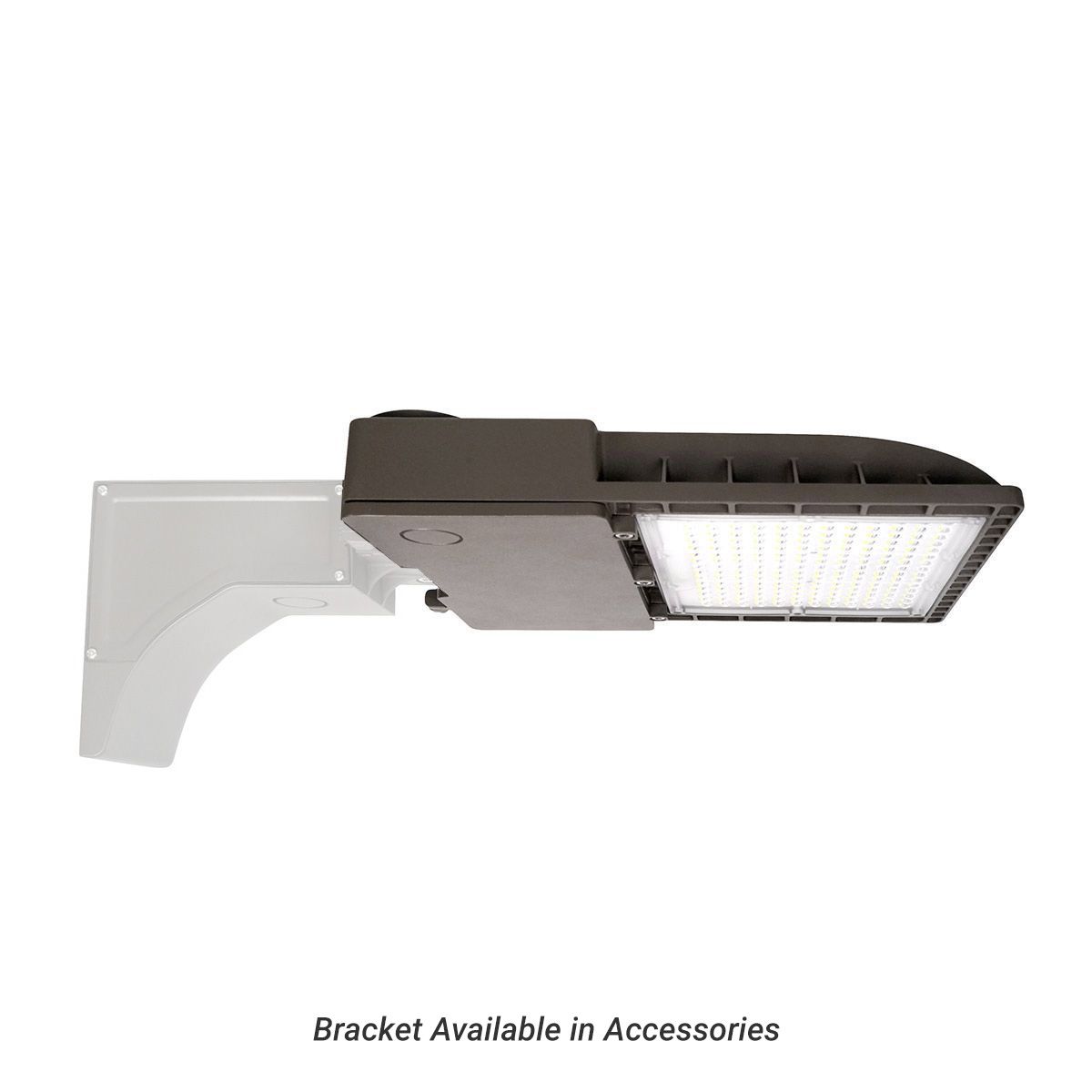

A Mounting Bracket for Every Requirement
Because every application is different, we offer a range of mounting hardware. Select the appropriate mounting bracket when you place your order.
Pole Mount
For 4" and 5" square or round poles
Slipfitter
For horizontal steel tenon arms, nominal 2" (2-3/8" OD pipe size)
Wall Mount
For building facade, use ½” conduit wiring or J-box mounting
Yoke Mount
Install the shoebox at an angle, as you would a flood light
| Wattage(s) | 100W |
| Replaces Wattage(s) | 250W |
| Light Output | 13,800 lumens |
| Luminous Efficacy (lm/W) | 138 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI | >70 |
| Dimming | 0-10V |
| Beam Angle | T3 (pushes light forward) |
| Working Environment | Outdoor |
| Enclosure Rating | IP65 (Protected against dust and low-pressure jets of water) |
| Light Type | Wired Fixture |
| Input Voltage | 120-277 VAC |
| Temperature Rating | -40°F - 113°F |
| Housing Material | Die-cast aluminum with PC |
| Housing Color | Dark bronze |
| Qty in Package | 1 |
| Dimensions | 15.16” x 12.25” x 2.46” without mounting bracket |
| Weight | 8.7 lbs. |
| Certification | DLC 5.1, UL |
| DLC Cert # | PEM58M26 |
| Warranty | 5 Years |
