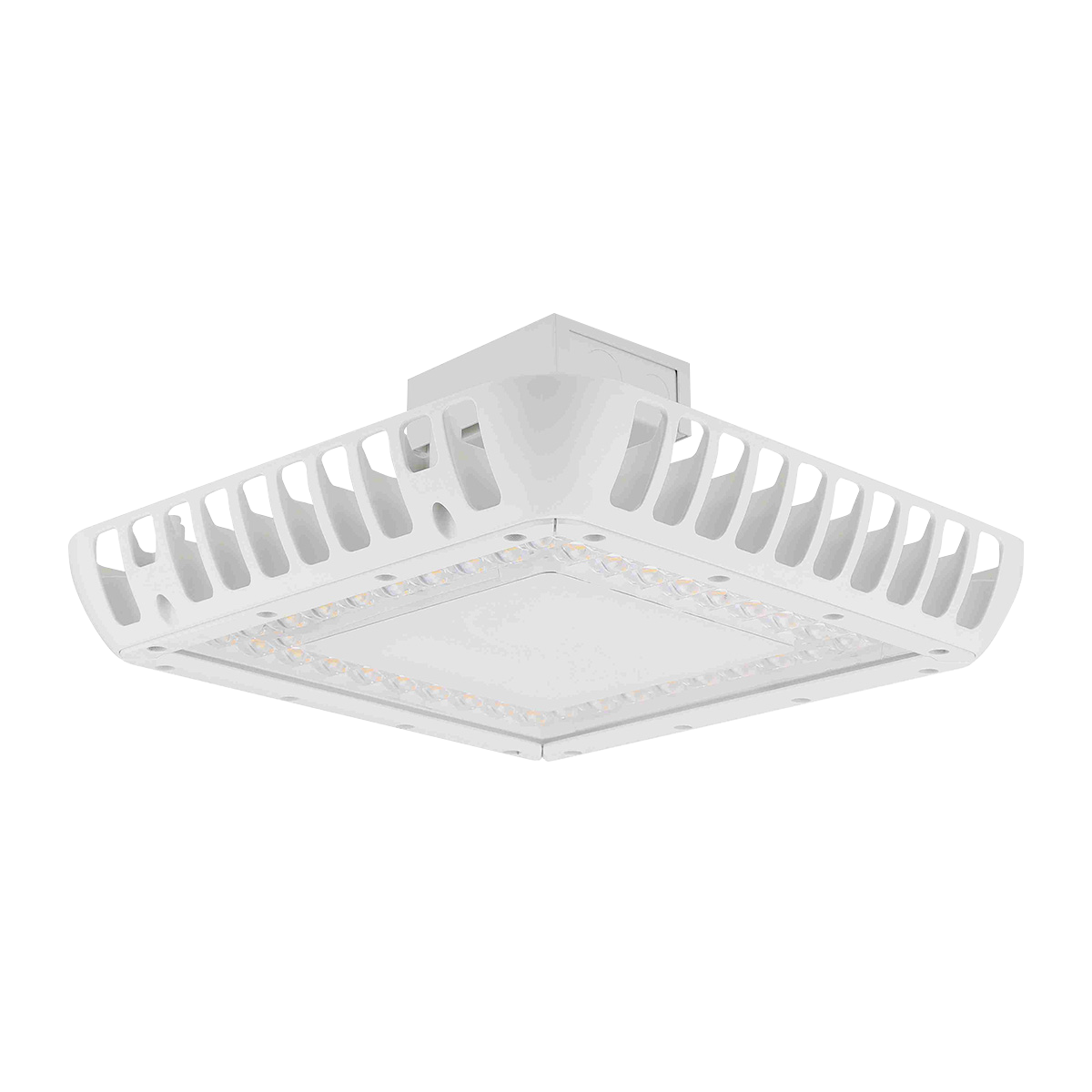

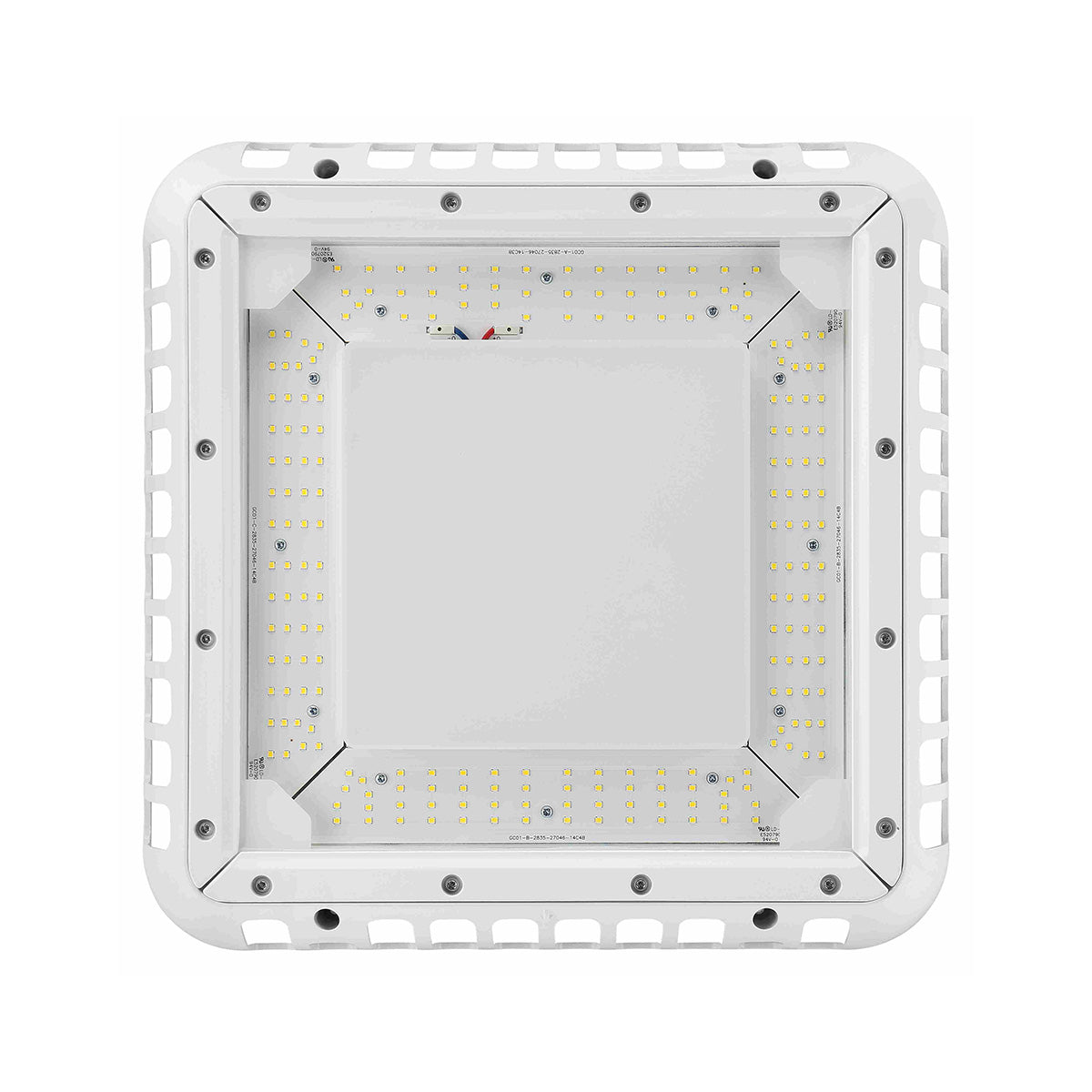

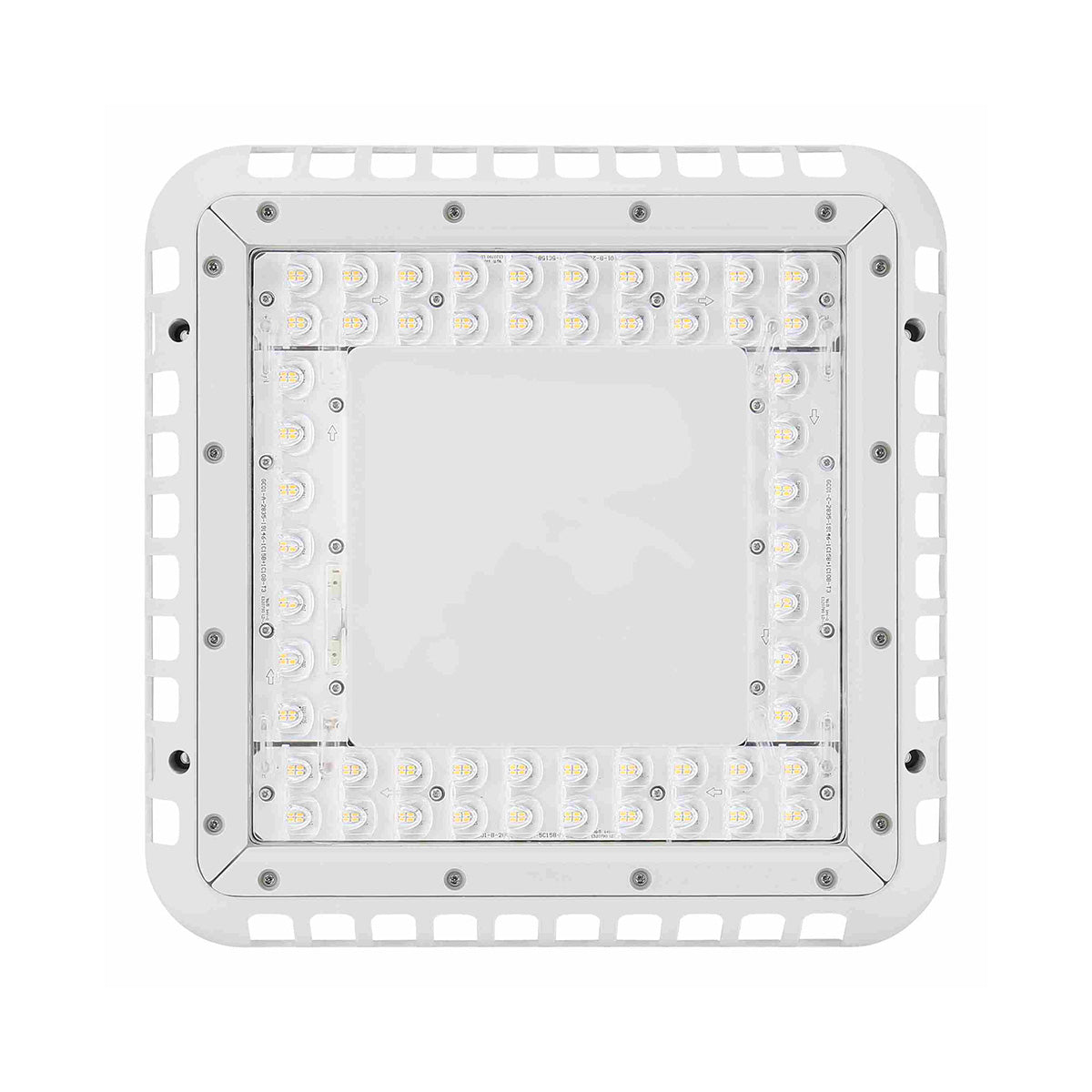

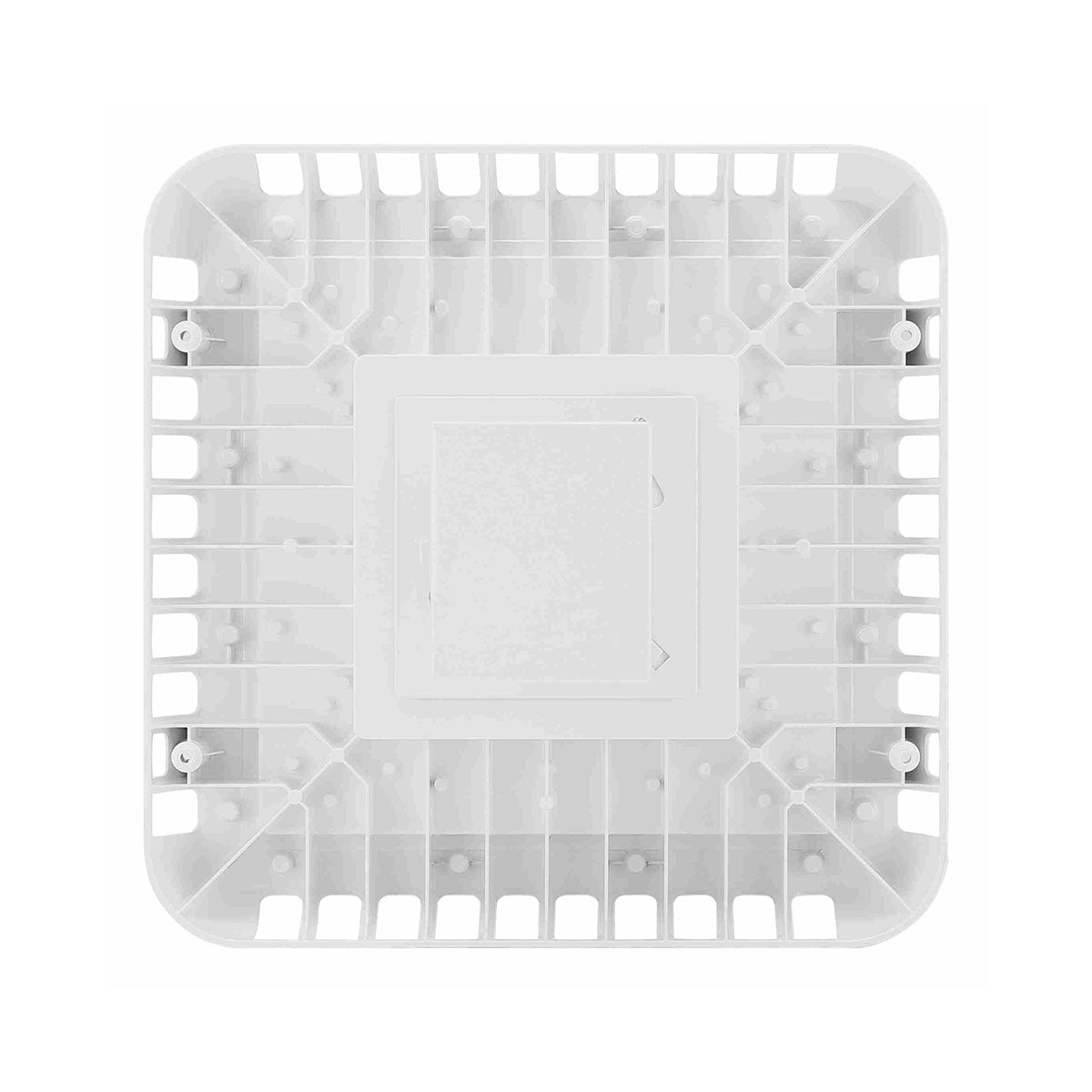

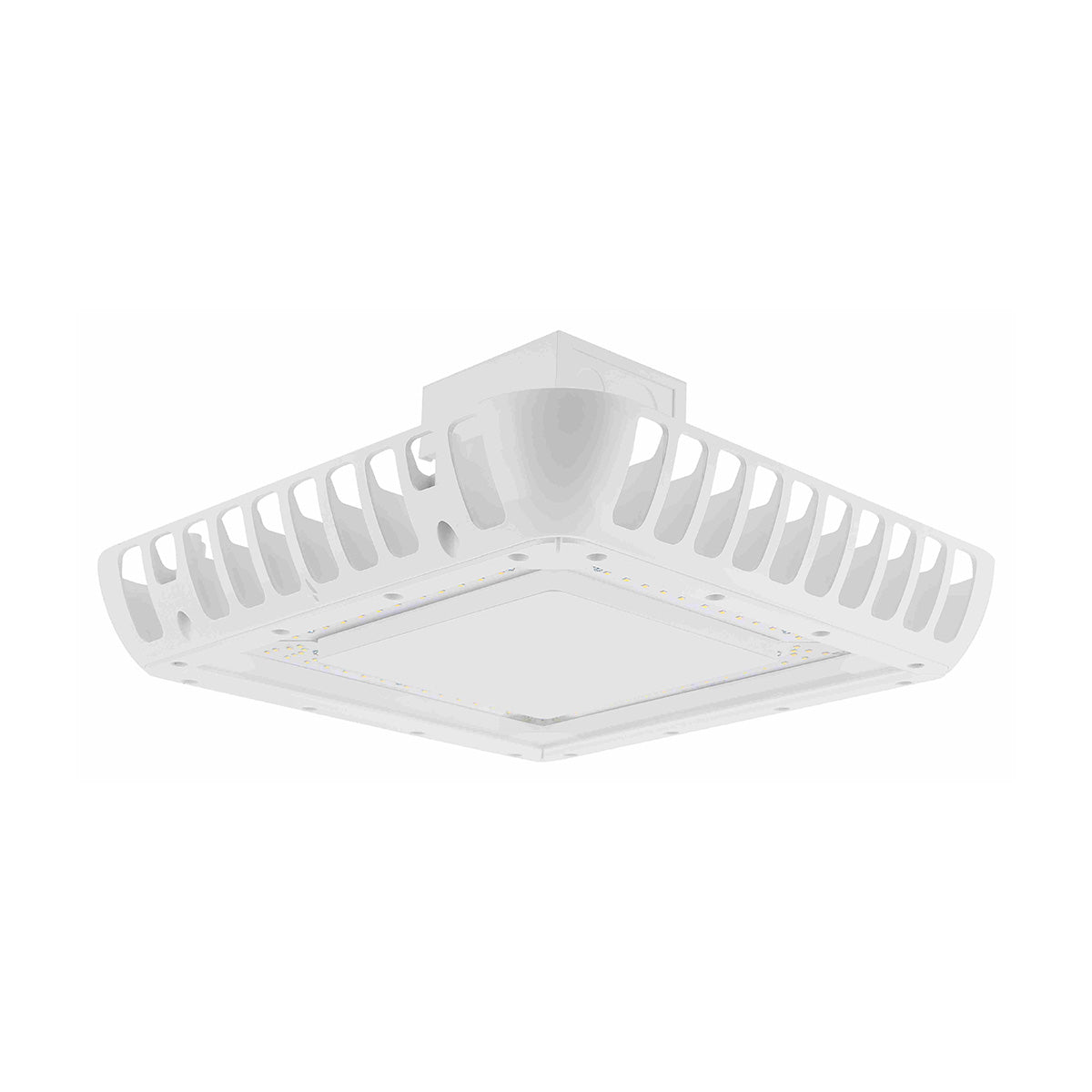

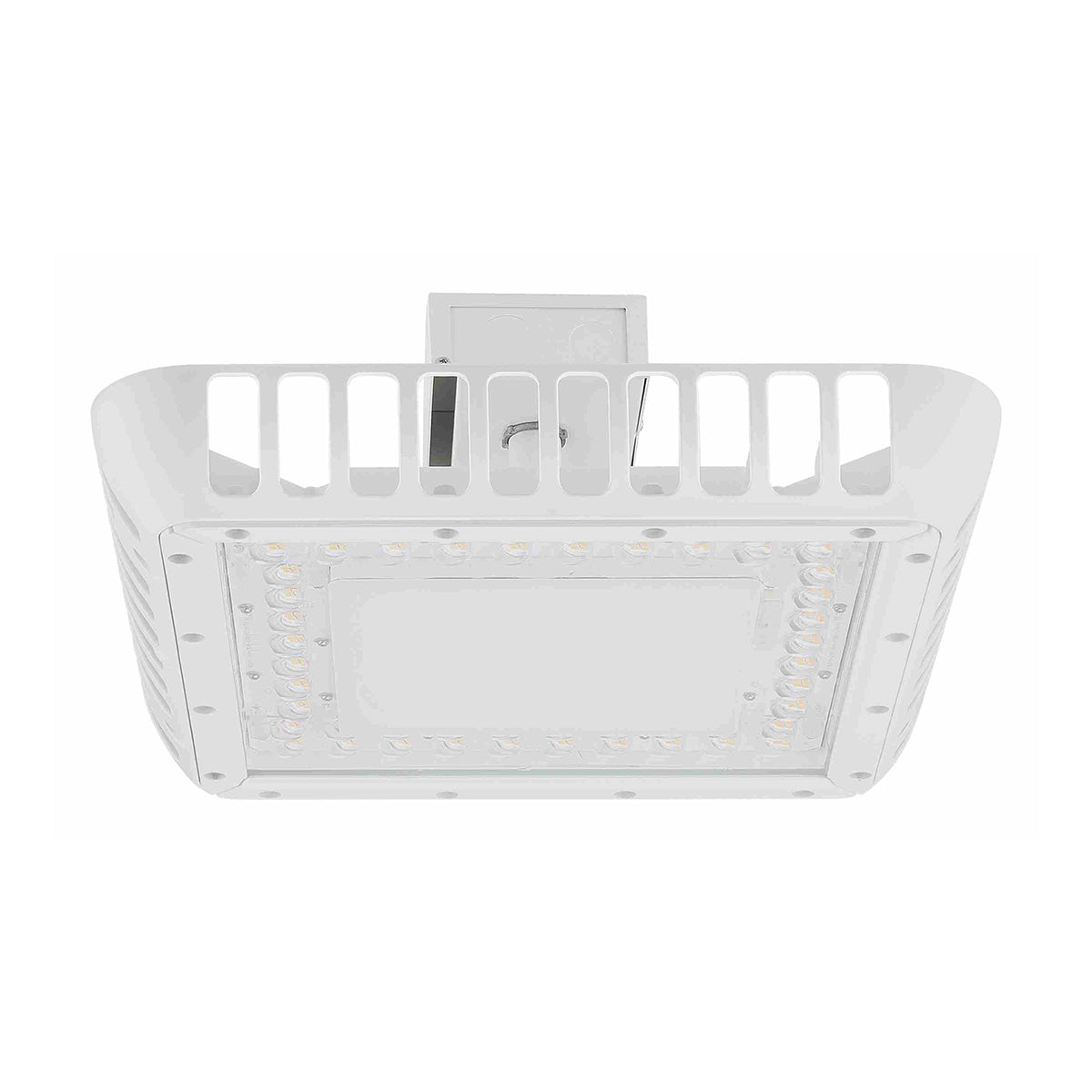

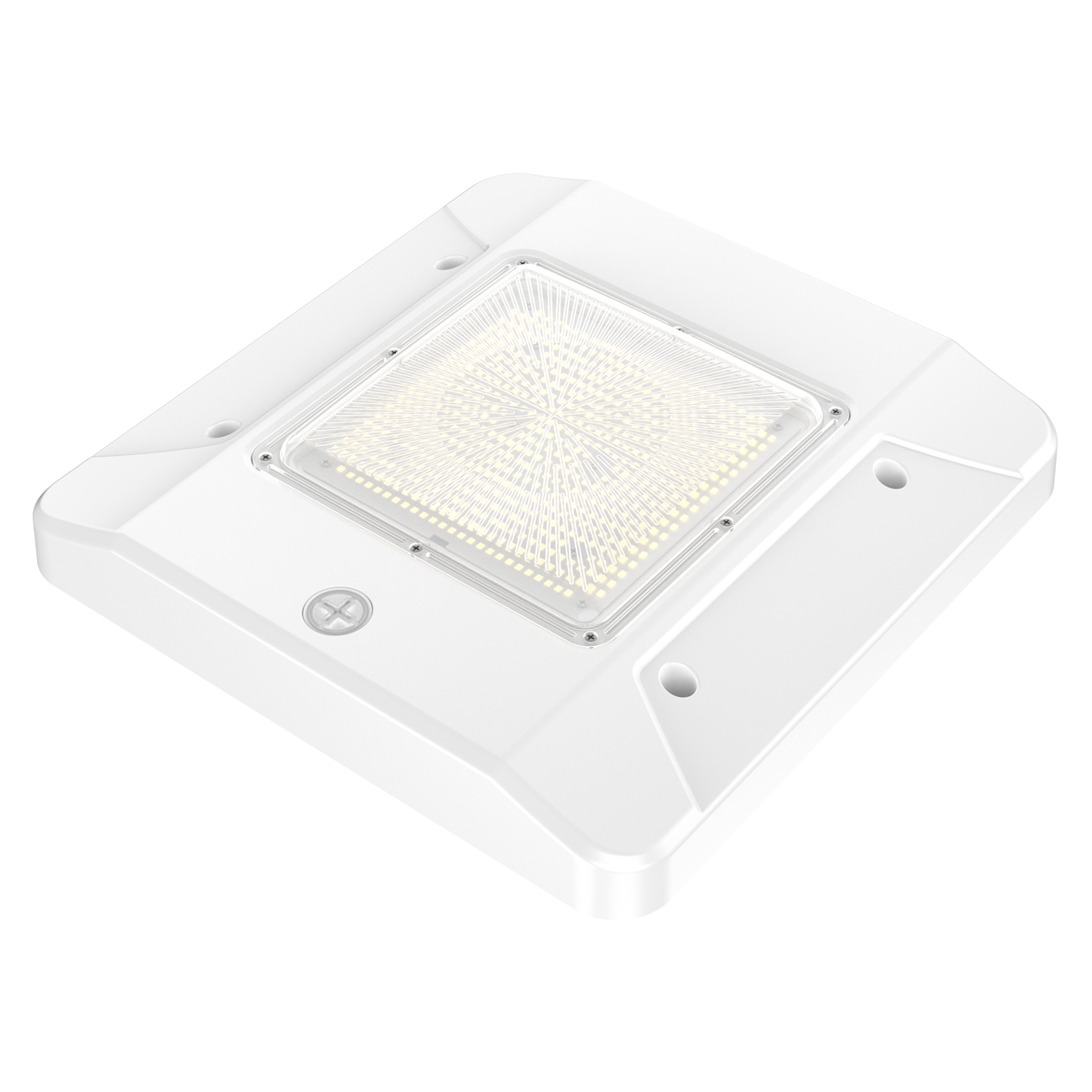

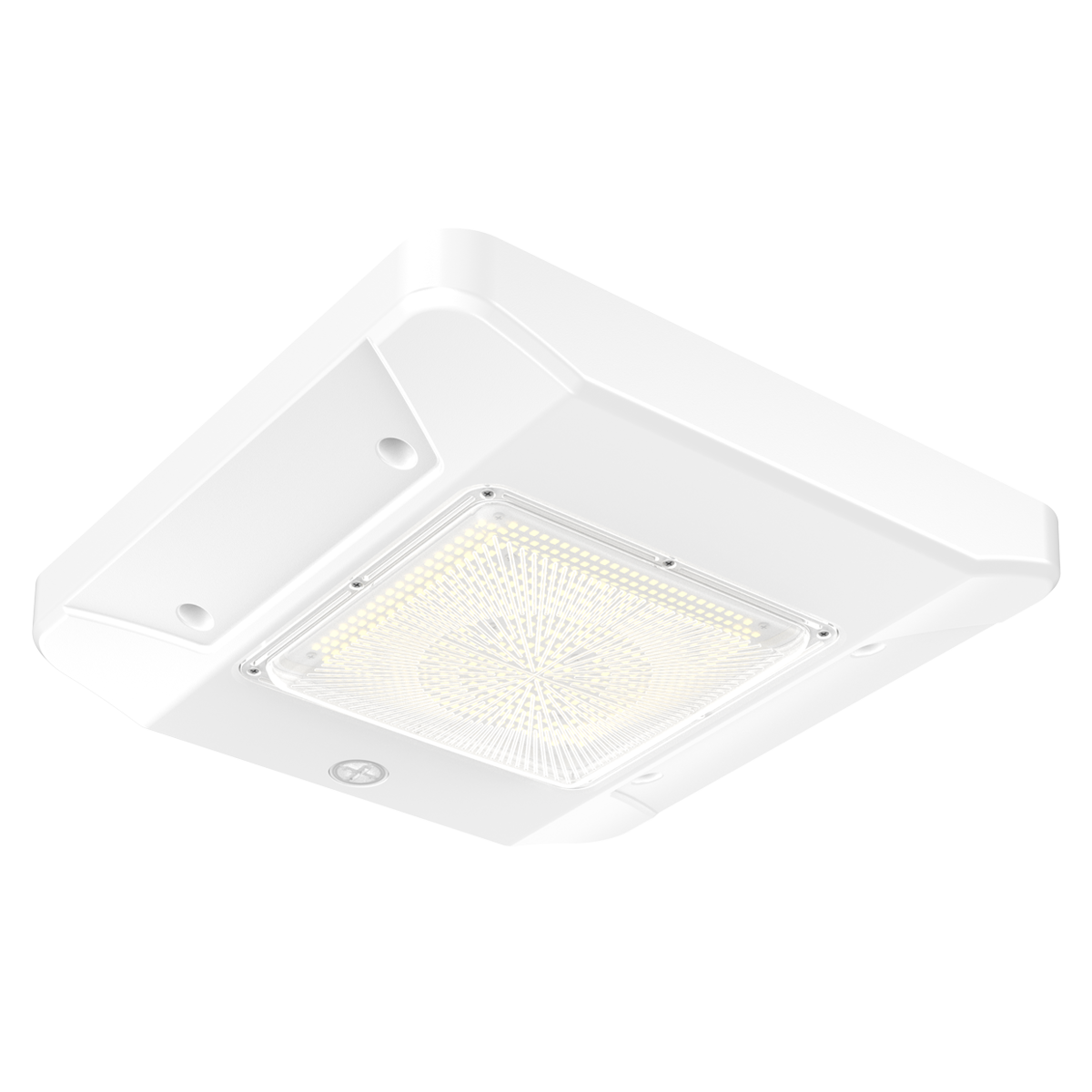

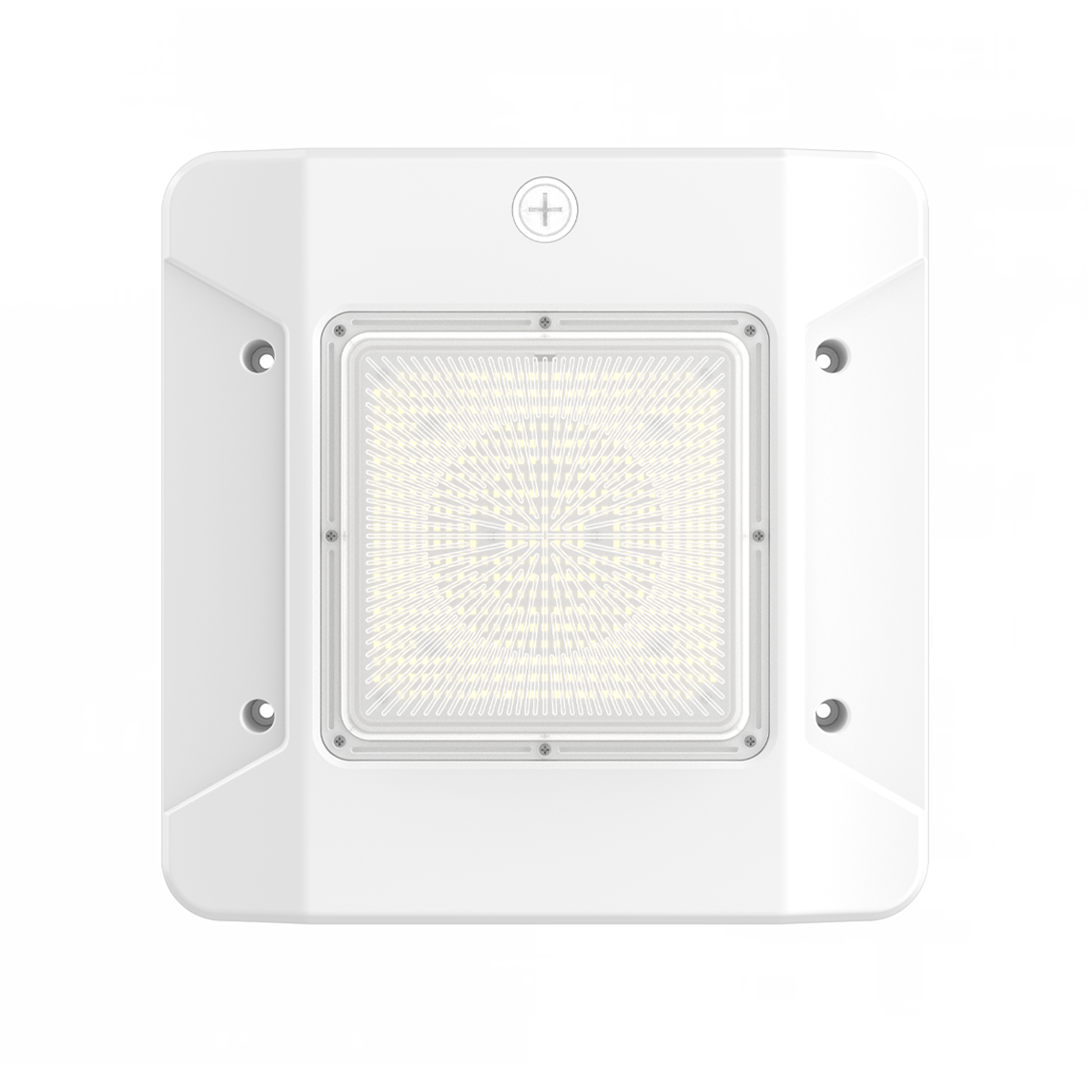

180W Selectable LED Gas Station Canopy Light, Heights Over 14ft
180W Selectable LED Gas Station Canopy Light, Heights Over 14ft
180W Selectable LED Gas Station Canopy Light, Heights Over 14ft
180W Selectable LED Gas Station Canopy Light, Heights Over 14ft
This wattage-selectable LED canopy light delivers up to 25,200 lumens of crisp 5000K light with a focused 120° beam—best for tall gas station canopies, car washes, and covered commercial areas.
- 120° beam angle limits horizontal light pollution
- Selectable wattage 120W-180W
- Crisp 5000K light improves visibility & safety
Need More? Text/call (858) 650-9400
This wattage-selectable LED canopy light delivers up to 25,200 lumens of crisp 5000K light with a focused 120° beam—best for tall gas station canopies, car washes, and covered commercial areas.
- 120° beam angle limits horizontal light pollution
- Selectable wattage 120W-180W
- Crisp 5000K light improves visibility & safety
Choose options
Details
High-Output LED Canopy Light for Demanding Commercial Sites
- Selectable High Wattage Performance (120W / 150W / 180W) – Delivers up to 25,200 lumens with high efficacy, making it a powerful replacement for HID canopy lights.
- Bright 5000K Daylight Illumination – Crisp, uniform light improves visibility and safety in gas station canopies and covered outdoor areas.
- Rugged, Wet-Location Rated Construction – Die-cast aluminum housing with IP65 rating ensures long-term durability in harsh outdoor and semi-outdoor environments.

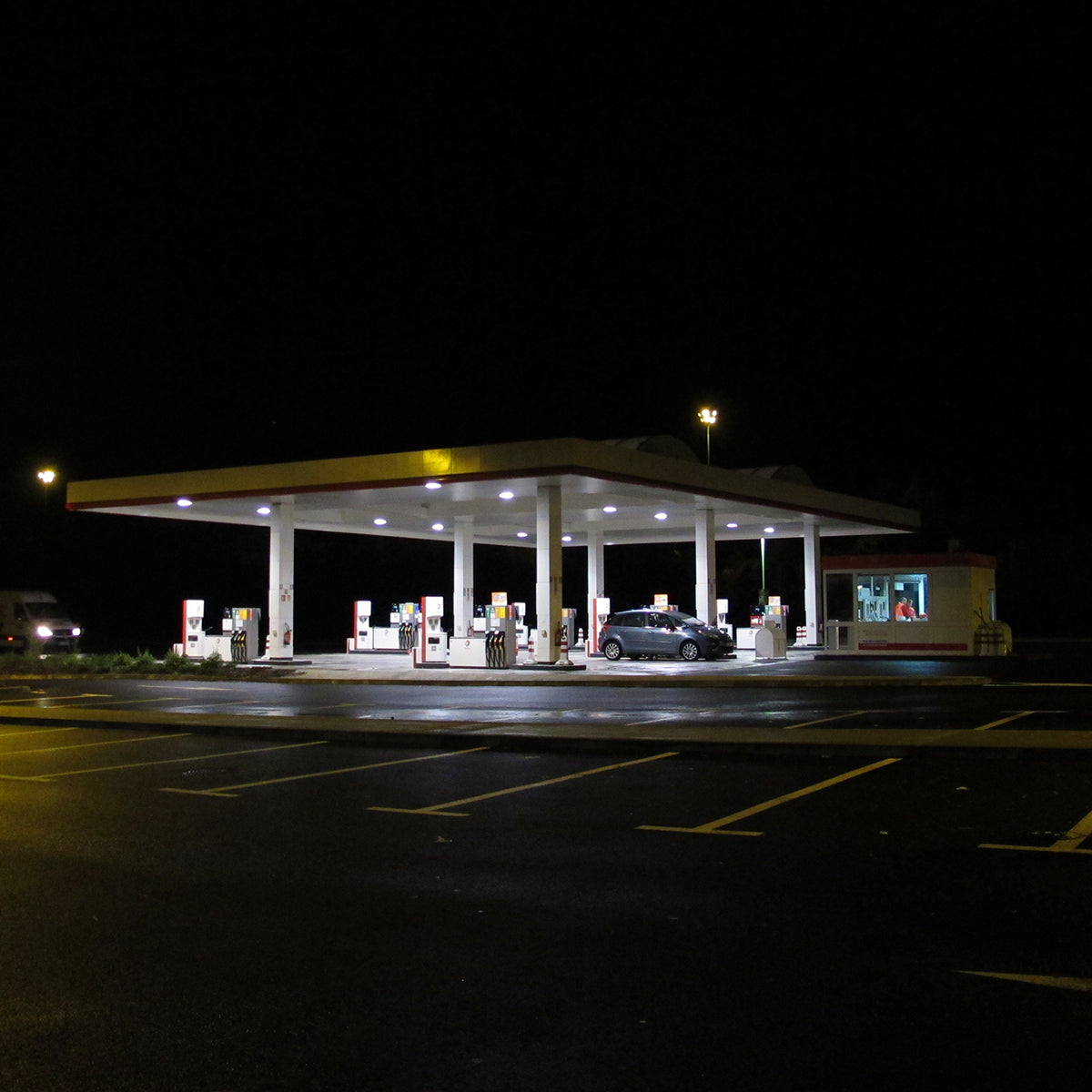

Great for gas stations, covered walkways, car washes, warehouses, and convenience stores.
Specs
| Wattage(s) | 120W/150W/180W |
| Replaces Wattage(s) | 600W |
| Light Output | 16,800/21,000/25,200 lumens |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V |
| Beam Angle | 120° |

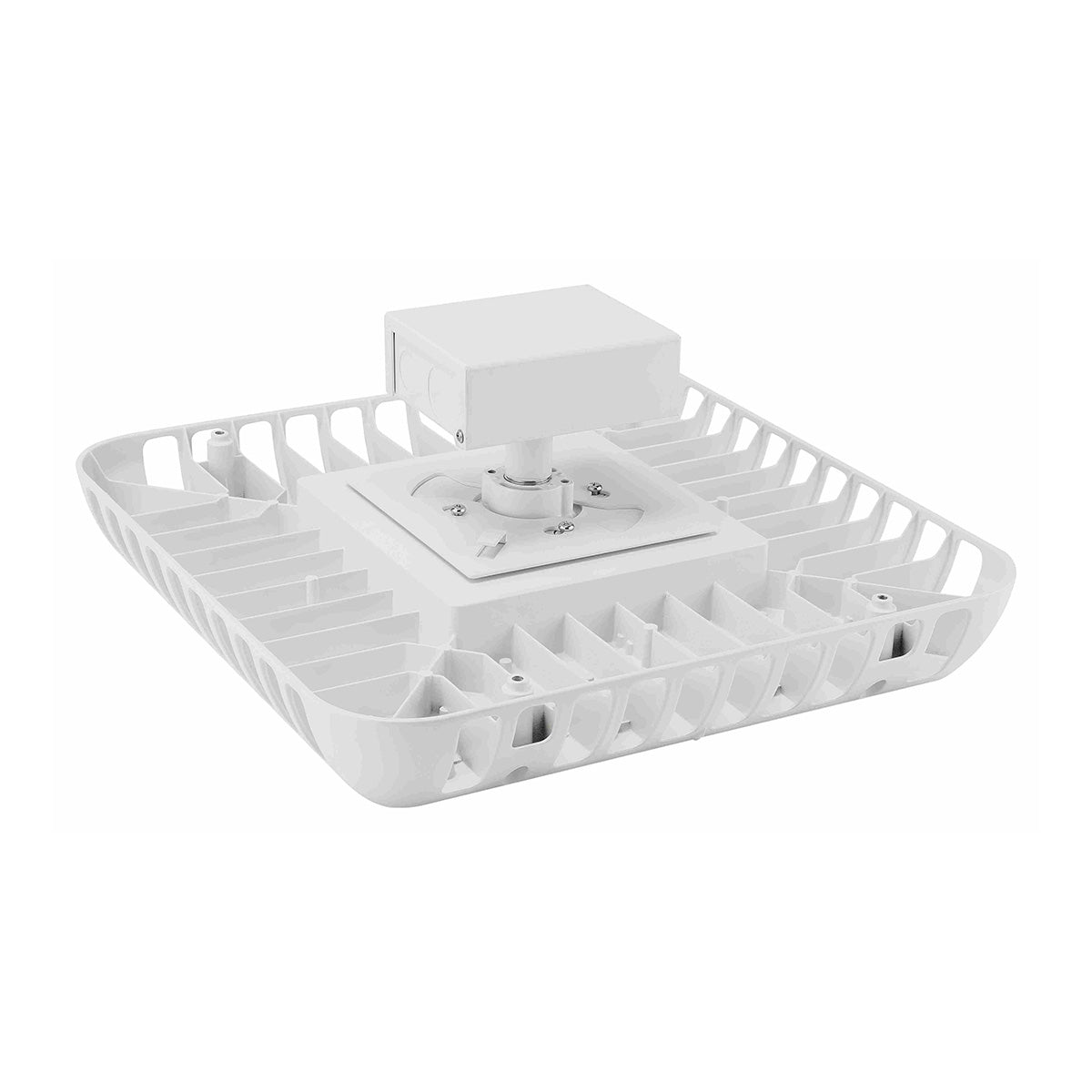

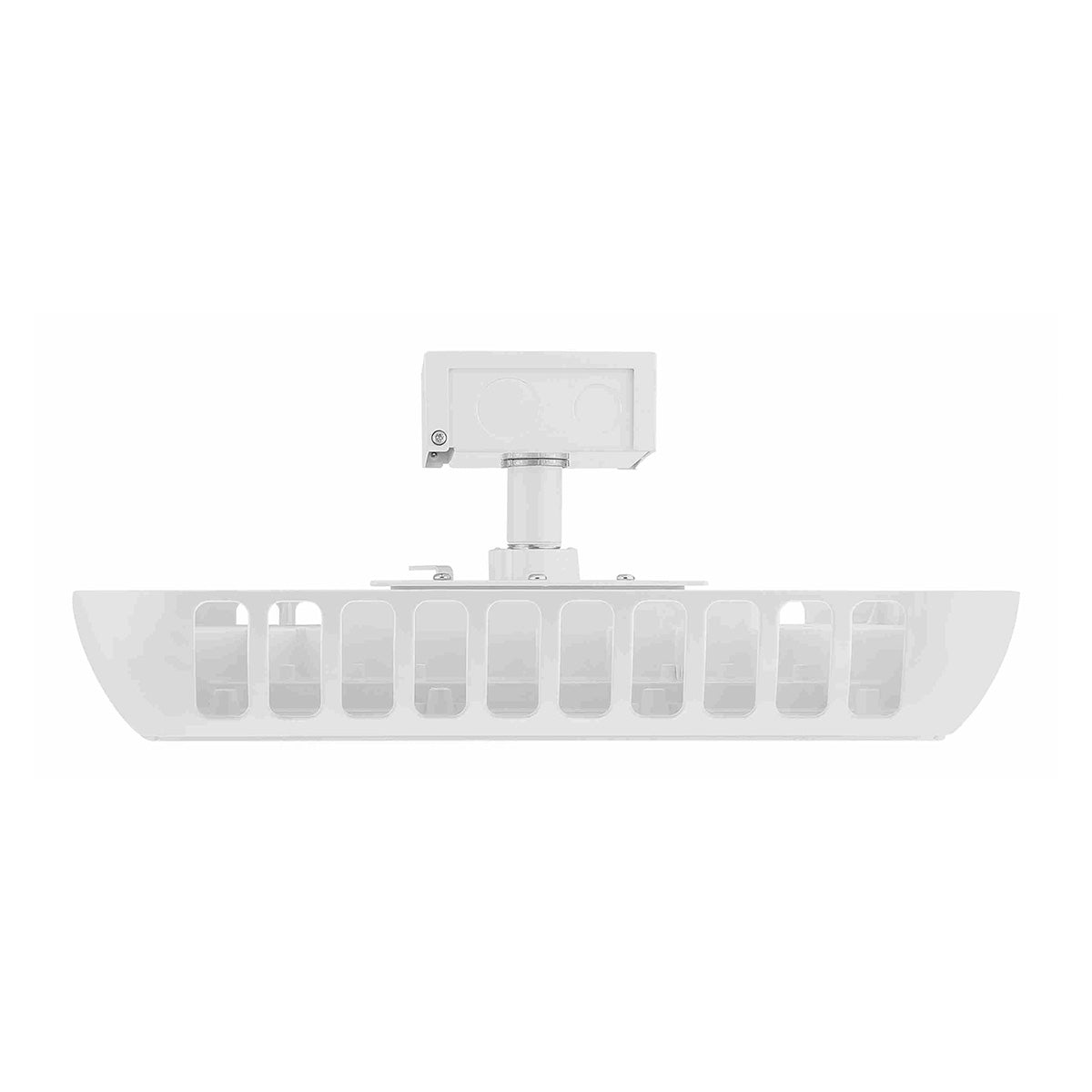

| Installation | Surface mount or 3/4" pipe mount |
| Enclosure Rating | IP65 |
| Input Voltage | 120-277VAC 50/60Hz |
| Power Factor | ≥0.90 |
| THD (Total Harmonic Distortion) | <20% |
| Surge Protection | 6kV line-line, 6kV line-earth |
| Temperature Rating | −40°F to 113°F (-40°C to +45°C) |
| Housing Material | Aluminum die cast housing with polycarbonate lens |
| Housing Color | White |

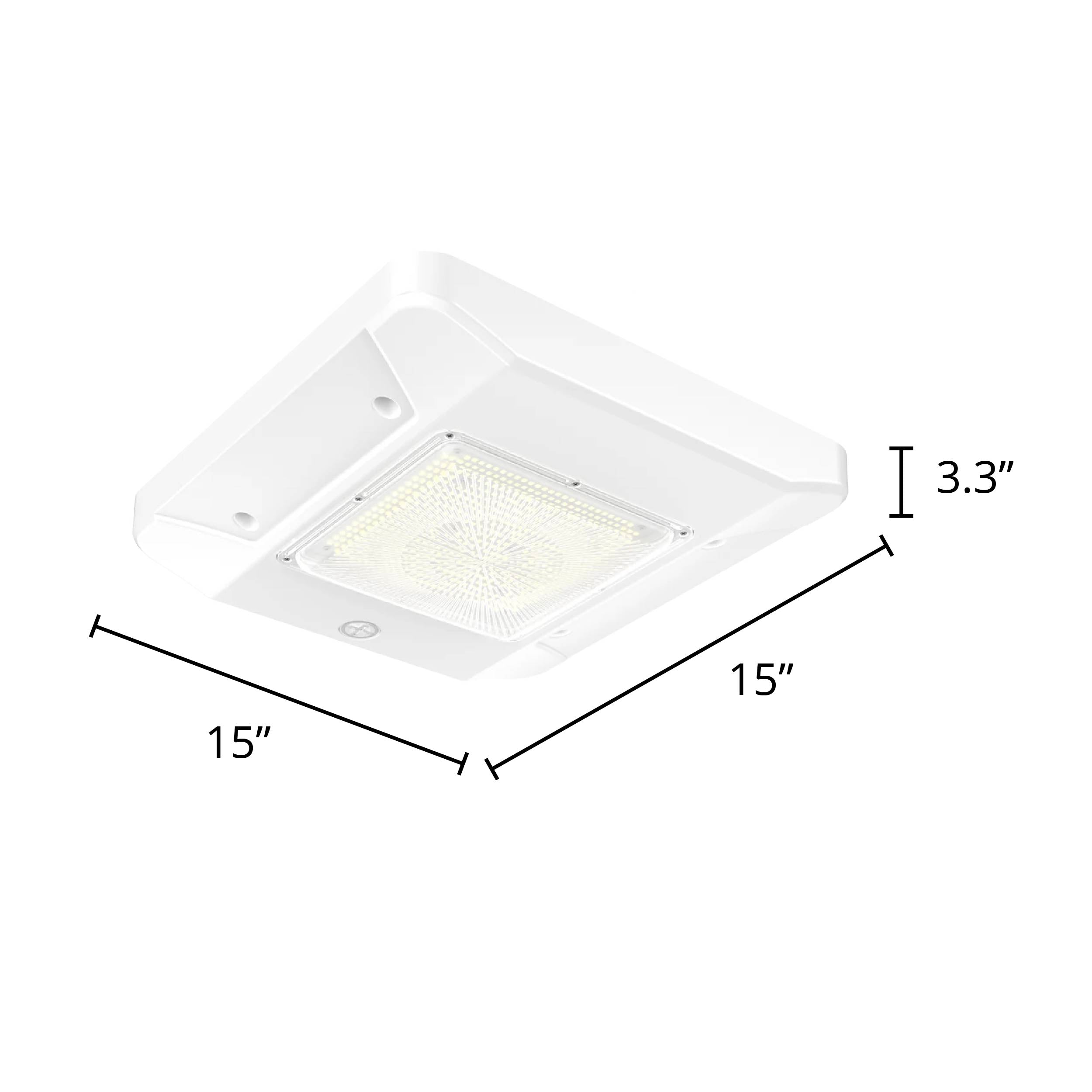

| Dimensions | 15” x 15” x 3.3” |
| Certification | UL, DLC 5.1 |
| Warranty | 5 Years |
Data SheetCompare Key Features
Compare
180W Selectable LED Gas Station Canopy Light, Heights Over 14ft
|
240W LED Canopy Light, Heights Up to 24ft
|
|
|---|---|---|
| Wattage | 120W/150W/180W | 240W |
| Equivalent to | 600W | 1000W |
| Light Output | 16,800/21,000/25,200 lumens | 34,776 lumens |
| Color Temperature (CCT) | 5000K | 5000K |
| Warranty | 5 Years | 5 Years |
|
$129.51
|
$251.89
