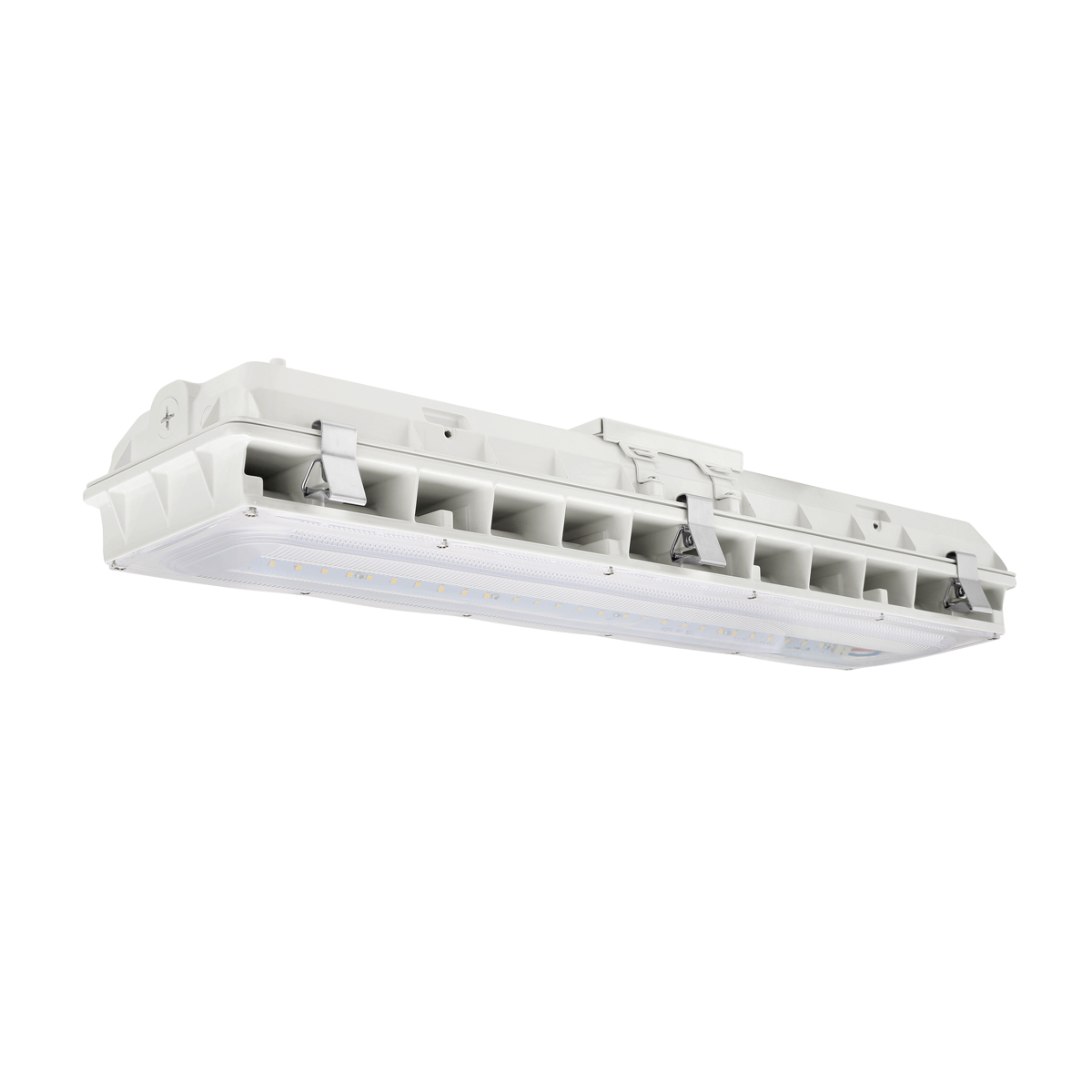

2ft LED Vapor Tight Light for Parking Garages - 2-Color & 40/57/73/95W
Lumens:
Watts:
Color Temp:
5 Year Warranty
High-Performance, High-Durability Parking Garage Lights
- Photometry Designed for Parking Garages: Specialized light distribution pattern.
- Sealed Housing: Protects against moisture and environmental contaminants for long, reliable operation.
- Suited for Cold Climates: Operates in temperatures as a low as -40°F.

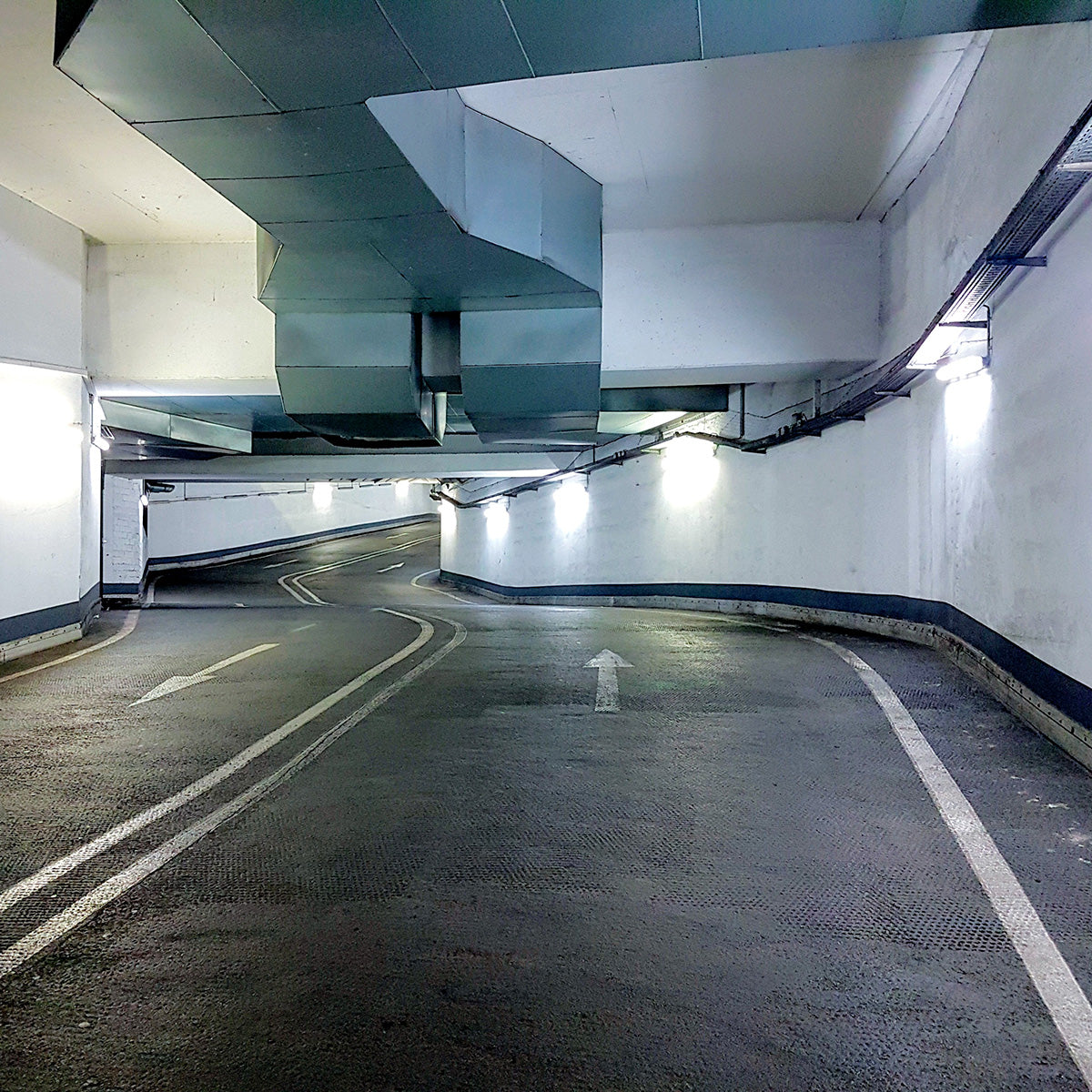

This commercial-grade LED luminaire is a great choice for outfitting today's parking garages.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
High-Performance, High-Durability Parking Garage Lights
- Photometry Designed for Parking Garages: Specialized light distribution pattern.
- Sealed Housing: Protects against moisture and environmental contaminants for long, reliable operation.
- Suited for Cold Climates: Operates in temperatures as a low as -40°F.
This commercial-grade LED luminaire is a great choice for outfitting today's parking garages.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Lumens:
Watts:
Color Temp:
5 Year Warranty
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 40/57/73/95W |
| Replaces Wattage(s) | 120W to 250W |
| Light Output | 5,000/7,000/9,000/11,600 lm |
| Luminous Efficacy (lm/W) | 120 lm/W |
| Average Lamp Life | 100,000 hours |
| Color Temperature(s) | 4000K/5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | 0-10V |
| Light Distribution Pattern | Parking Garage Photometry |
| Enclosure Rating | UL/cUL Wet Location |
| Input Voltage | 120-277VAC |
| Temperature Rating | -40°F-113°F |
| Housing Material | Die cast aluminum |

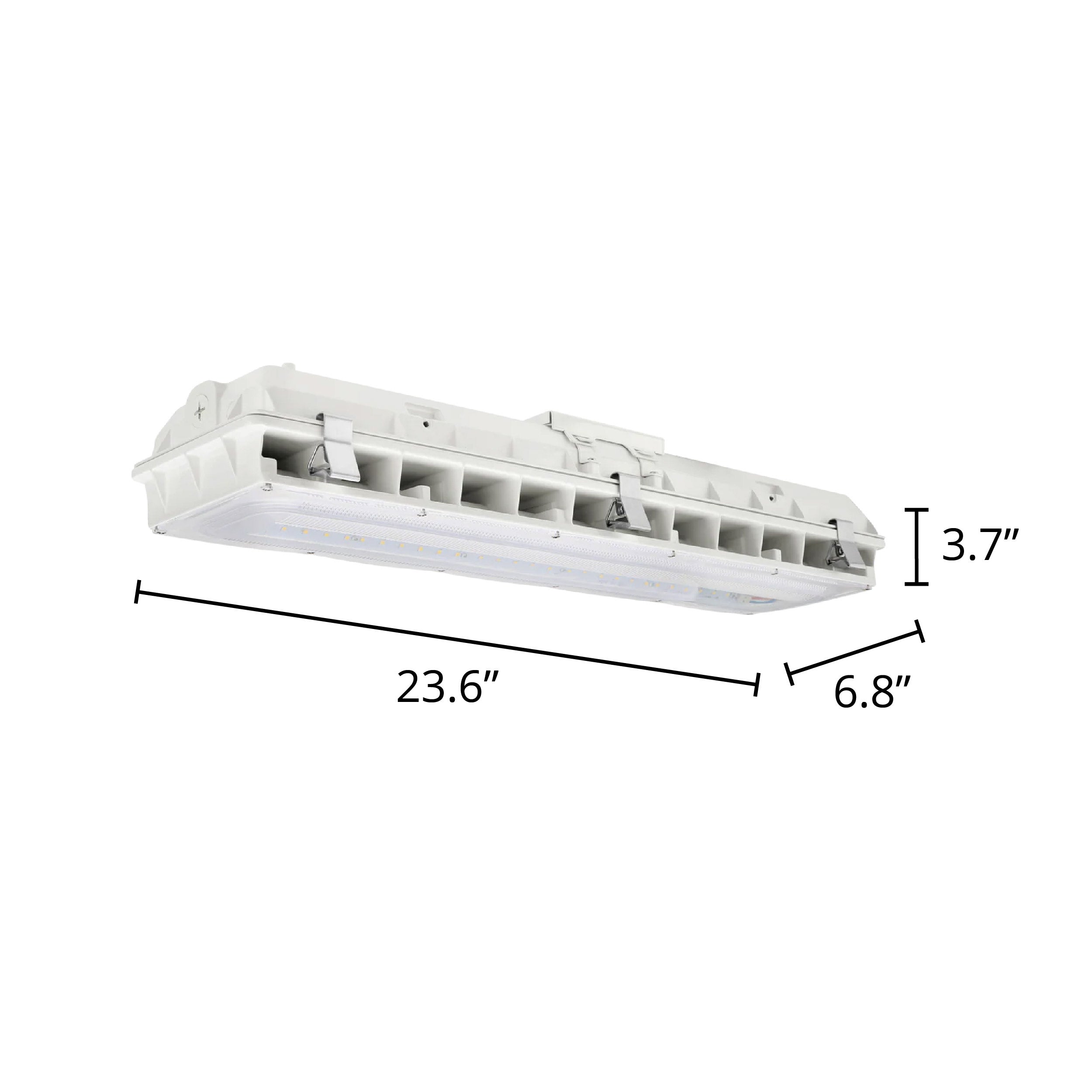

| Dimensions | 23.6" L x 6.8" W x 3.7" H |
| Weight | 8.2 lbs |
| Certification | UL/cUL Wet Location |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
2ft Parking Garage LED Vapor Tight – 2 CCT - 40/57/73/95W
|
4ft High Bay LED Vapor Tight – NSF – 3-CCT – 165W/135W/105W
|
RAB 4ft LED High Bay Vapor Tight Light - 2 CCT - 120/140/160W
|
|
|---|---|---|---|
| Light Output | 5,000/7,000/9,000/11,600 lm | 3500K: 16,900/20,900/24,750 lumens 4000K: 18,650/23,100/27,400 lumens 5000K: 17,250/21,350/25,500 lumens |
18,434/21,313/24,462 lumens @ 4000K |
| Replaces Wattage(s) | 120W to 250W | 250W to 500W | 320W to 500W |
| Color Temperature (CCT) | 4000K/5000K | 3500K/4000K/5000K | 3500K/4000K/5000K |
| Enclosure Rating | UL/cUL Wet Location | IP65 | IP67, IK09 |
| Temperature Rating | -40°F-113°F | -40°F - 113°F | -40°F to 140°F |
| Warranty | 5 Years | 5 Years | 5 Years |
|
$157.95
|
$238.95
View Details
|
$387.95
View Details
|
Key Features
Equivalent to 200W Metal Halide
Cool Operation
Built for Tough Weather
High-Performance, High-Durability Parking Garage Lights
- Photometry Designed for Parking Garages: Specialized light distribution pattern.
- Housing Designed for Water Resistance: UL/cUL Wet Location listed.

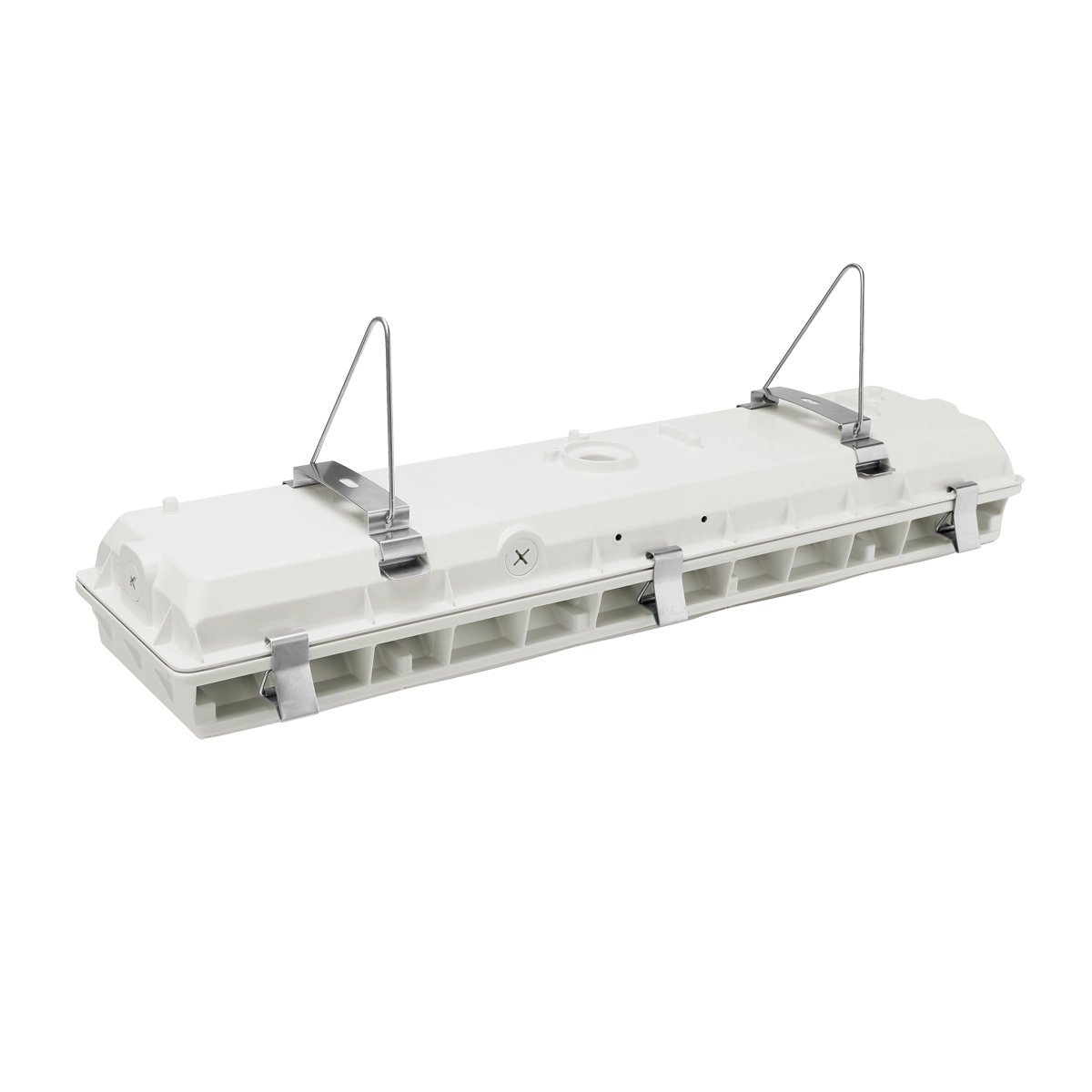

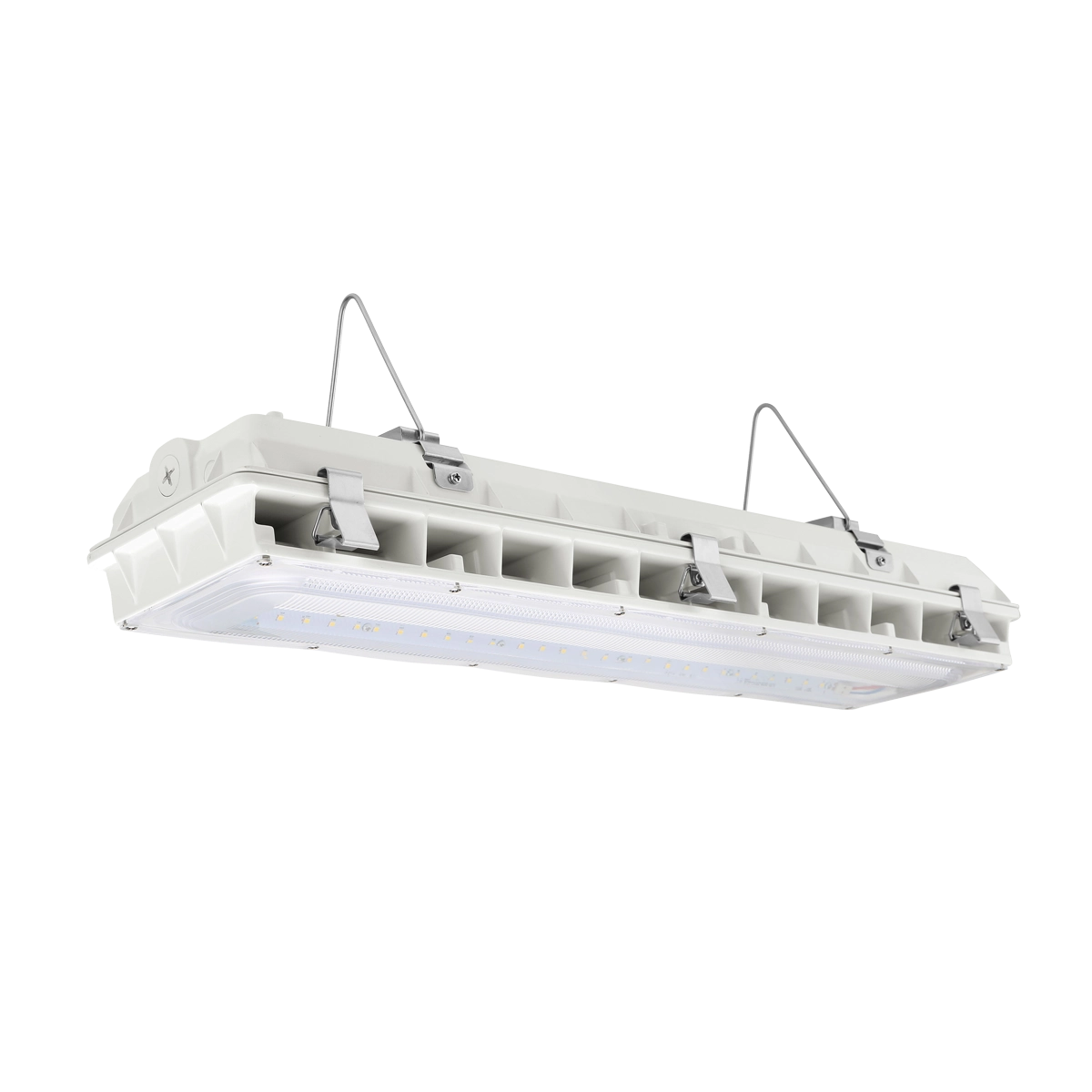

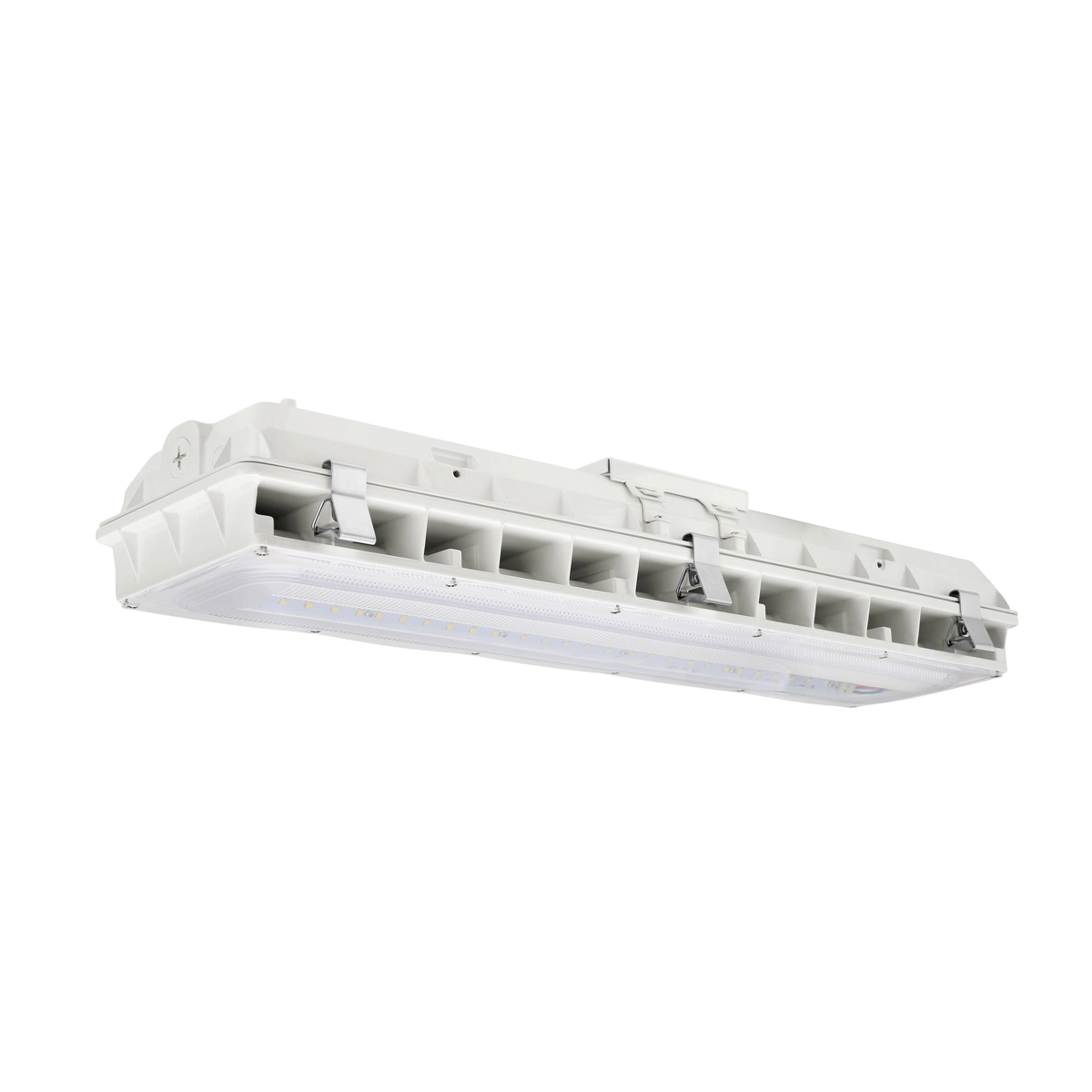

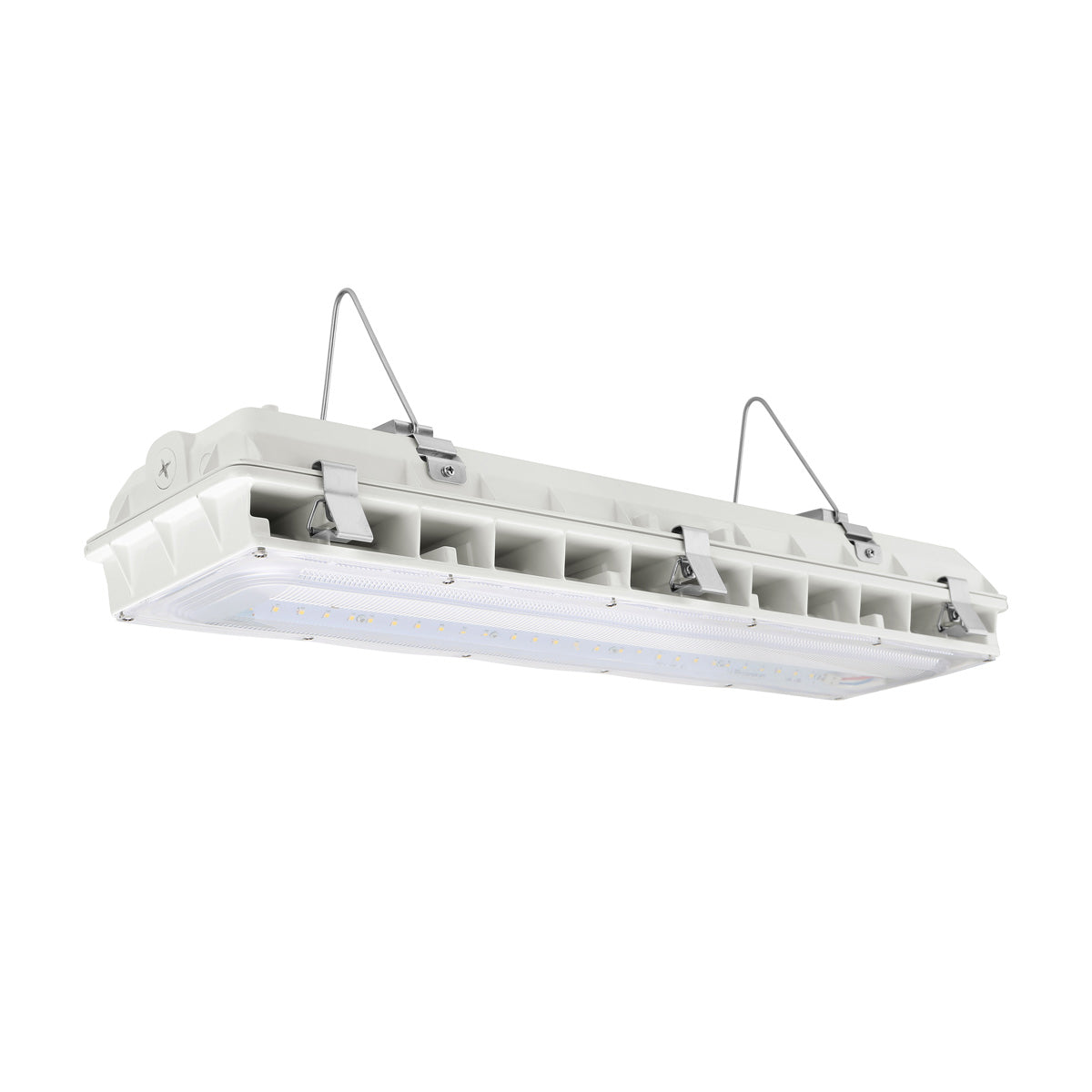

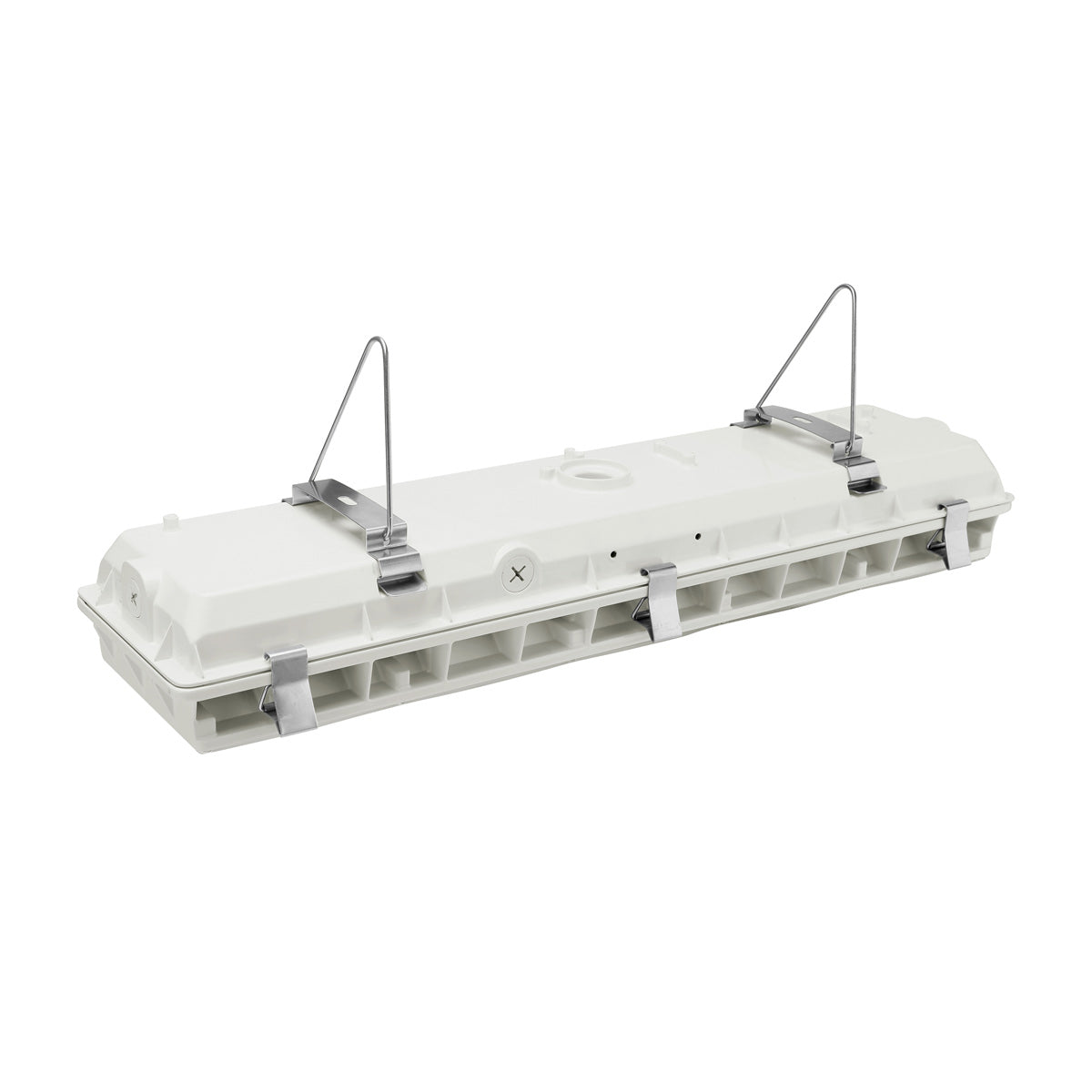

- Two Ways to Install: Surface-mount or hang from chains with V-hook mounts.
This commercial-grade LED luminaire is a great choice for outfitting today's parking garages.
